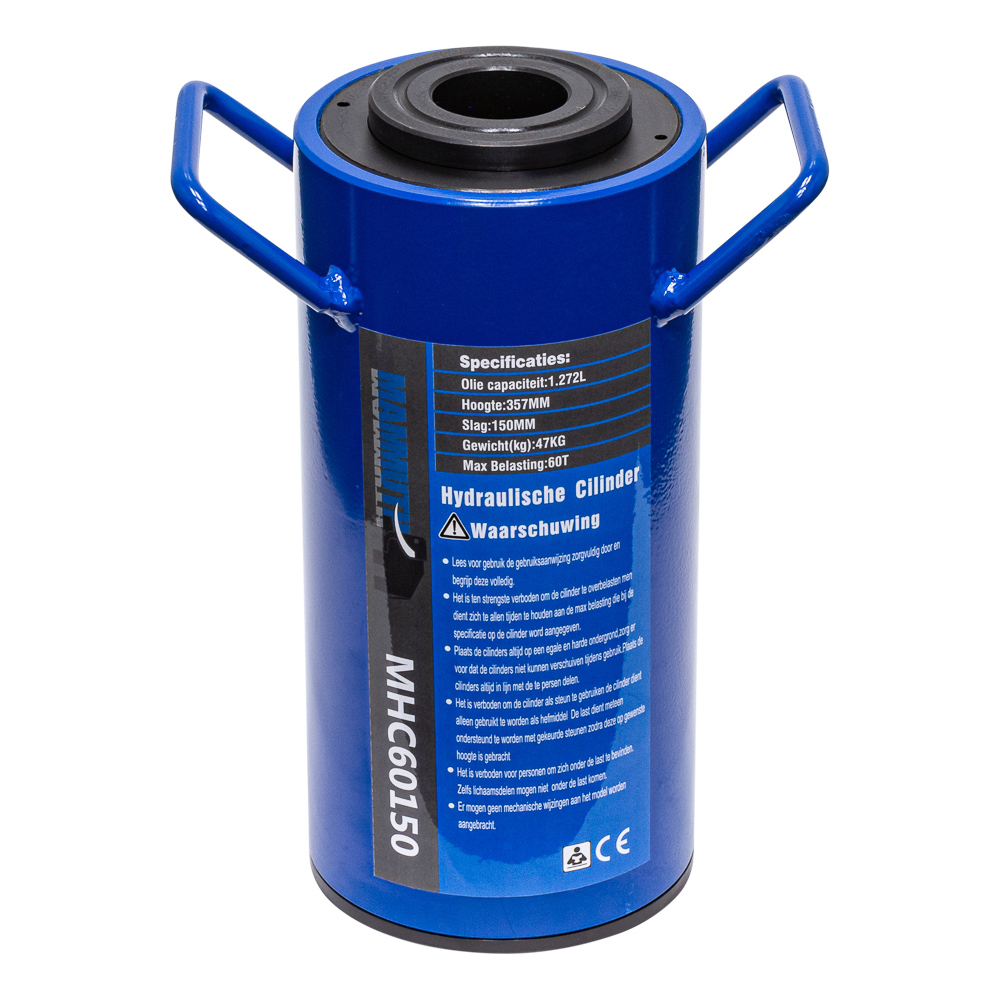

Hollow cylinder 60 ton stroke 150mm

Shop equipment / Hydraulic tools / Hollow cylinders Brand: Mammuth Mammuth

Product Code: MHC60150

EAN: 8720028090204

Availability: Available

€ 786.50 Incl. VAT https://schema.org/InStock 786.5 EUR € 786.50

€ 650.00

  • Capacity
  • Stroke
  • Pressure max.
  • Oil capacity
  • Outside diameter
  • Cylinder effective area
  • Bore diameter
  • Principal axis diameter
  • Plunger diameter
  • Oil supply hole thread (Rc)
  • Top cap height

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

Product Dimensions:
Product Length 255 mm
Product Width 260 mm
Product Height 210 mm
Product Weight 38.0 Kg
Package Dimensions:
Package Length 300 mm
Package Width 295 mm
Package Height 410 mm
Package Weight 40.00 Kg
Package Type:
1 Pcs

  • Incl. side handles
  • 700 bar max working pressure
  • Adjustable top saddle
  • Hard coat finish
  • High-strength

Specifications

Capacity 60 Ton
Stroke 50 mm
Pressure max. 700 Bar
Oil capacity 0.424 L
Outside diameter 165 mm
Cylinder effective area 84.7 cm^2
Bore diameter 135 mm
Principal axis diameter 100 mm
Plunger diameter 54 mm
Oil supply hole thread (Rc) 3/8"
Top cap height 12 mm
