Cylinder 100 ton stroke 150mm

Brand: Mammuth

Product Code: MPC100150

EAN: 8720028046836

Availability: Available

https://www.valkenpower.com/web/image/product.template/50431/image_1920?unique=edce301

€ 484.00 Incl. VAT 484.0 EUR € 484.00

€ 400.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

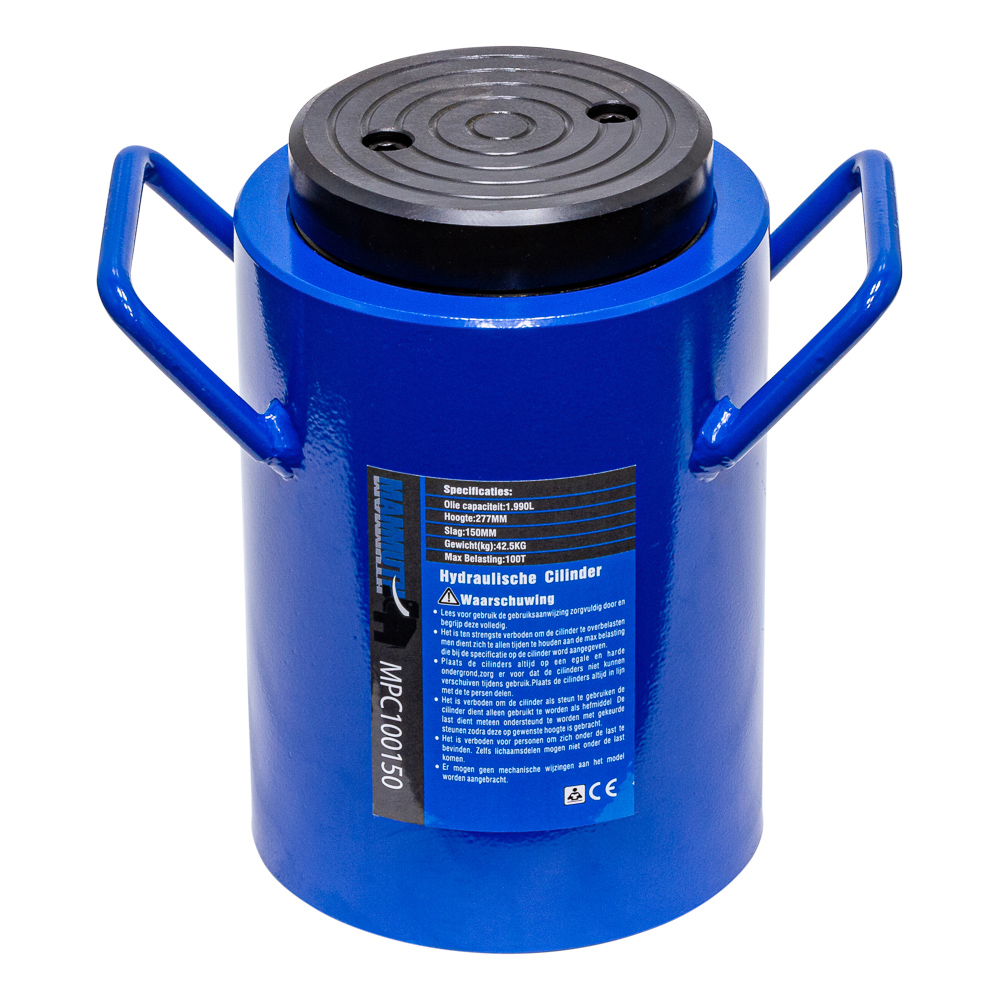

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    • output = 100 ton

    • stroke = 150mm

    • effective area = 132,7cm^2

    • oil capacity = 1,990 L

    • height of product = 262mm

    • extended height = 427mm

    • outside diameter = 175mm

    • bore diameter = 130mm

    • plunger diameter = 110mm

    • thread for input oil port (ZG) = 3/8" - 22,5

    • saddle protrusion form plgr = 27mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 260 mm
    Product Width 190 mm
    Product Height 265 mm
    Product Weight 41.0 Kg
    Package Dimensions:
    Package Length 300 mm
    Package Width 295 mm
    Package Height 395 mm
    Package Weight 43.00 Kg
