Cylinder 30 ton stroke 50mm

Brand: Mammuth

Product Code: MPC3050

EAN: 8720028076901

Availability: Sold Out

Expected back in stock: 1 - 3 weeks

https://www.valkenpower.com/web/image/product.template/52614/image_1920?unique=8a8e0f0

€ 108.90 Incl. VAT 108.9 EUR € 108.90

€ 90.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

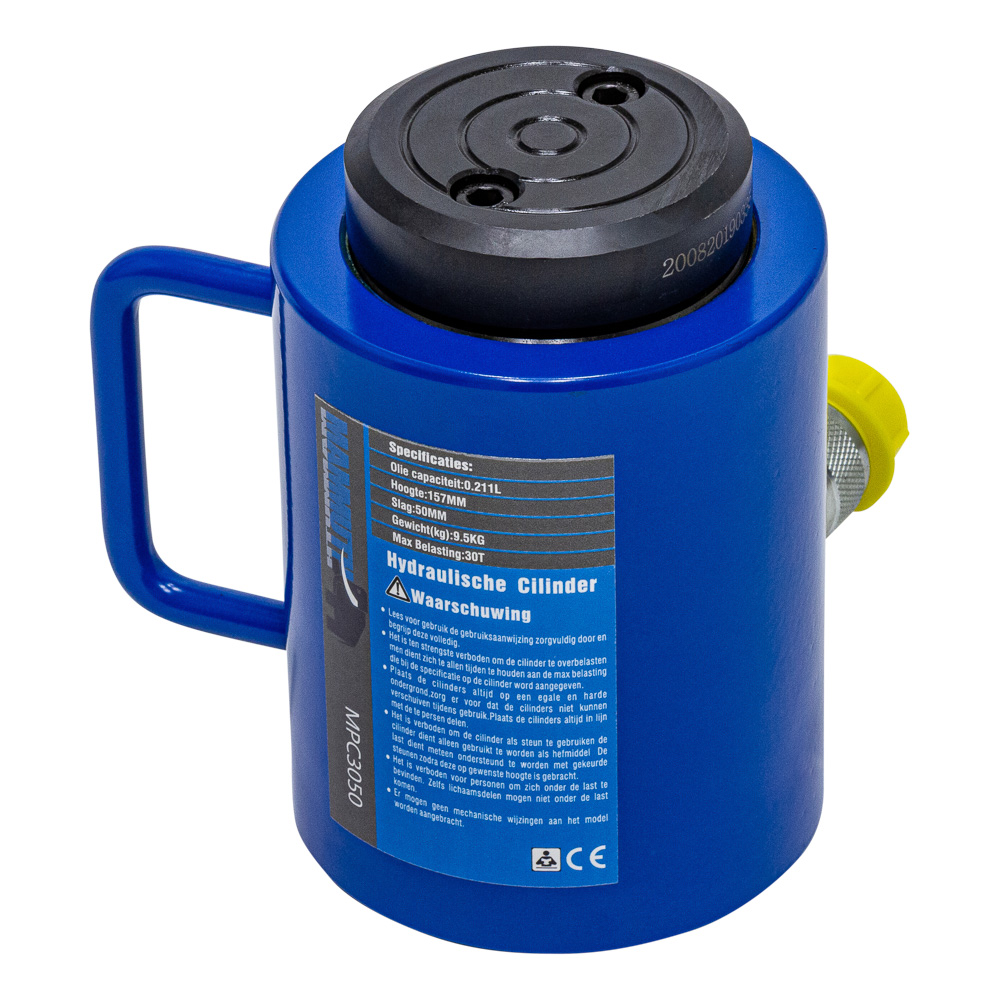

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    - output = 30 ton
    - stroke = 50mm
    - effective area = 44,2cm^2
    - oil capacity = 0,221 L
    - height of product = 157mm
    - extended height = 207mm
    - outside diameter = 107mm
    - bore diameter = 75mm
    - plunger diameter = 65mm
    - thread for input oil port (ZG) = 3/8" - 23
    - saddle protrusion form plgr = 22mm
    - saddle is removable
    - max. pressure = 700bar

    Product Dimensions:
    Product Length 170 mm
    Product Width 100 mm
    Product Height 160 mm
    Product Weight 12.5 Kg
    Package Dimensions:
    Package Length 280 mm
    Package Width 240 mm
    Package Height 215 mm
    Package Weight 10.00 Kg
