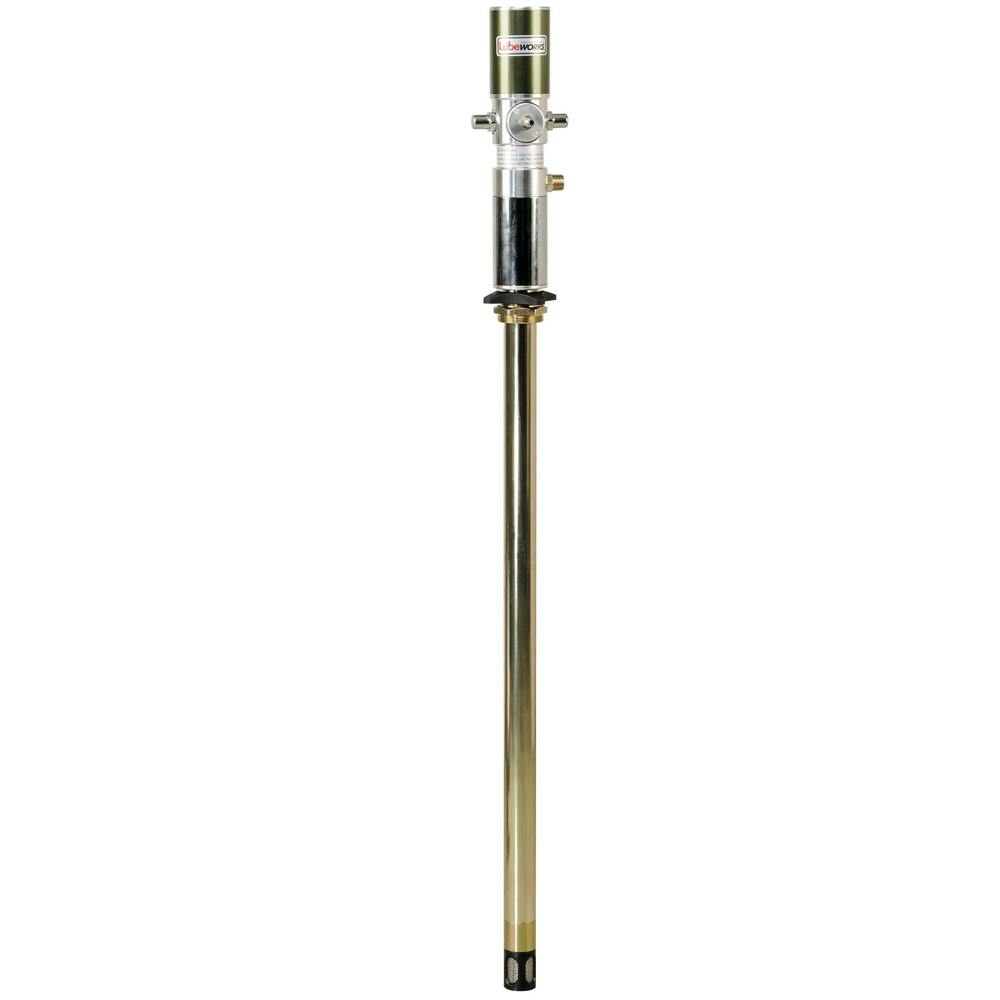

Air operated oil pump 1:1 940mm

[OP18A94] Air operated oil pump 1:1 940mm

Shop equipment / Fluid distribution / Oil distribution Brand: Lubeworks Lubeworks

Product Code: OP18A94

EAN: 8720028062133

Availability: Available

https://www.valkenpower.com/web/image/product.template/49647/image_1920?unique=5e989ba

€ 210.00 210.0 EUR € 210.00

€ 210.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Air operated oil pump

The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.

- drum application = 180 - 220kgs
- pressure ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 100 L/min
- max. free flow rate = 18 L/min
- suction tube diameter = 42mm
- suction tube length = 940mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/2''

Product Dimensions:
Product Length 1,300 mm
Product Width 130 mm
Product Height 130 mm
Product Weight 5.9 Kg
Package Dimensions:
Package Length 136 mm
Package Width 135 mm
Package Height 135 mm
Package Weight 6.60 Kg
Package Type:
1 Pcs
