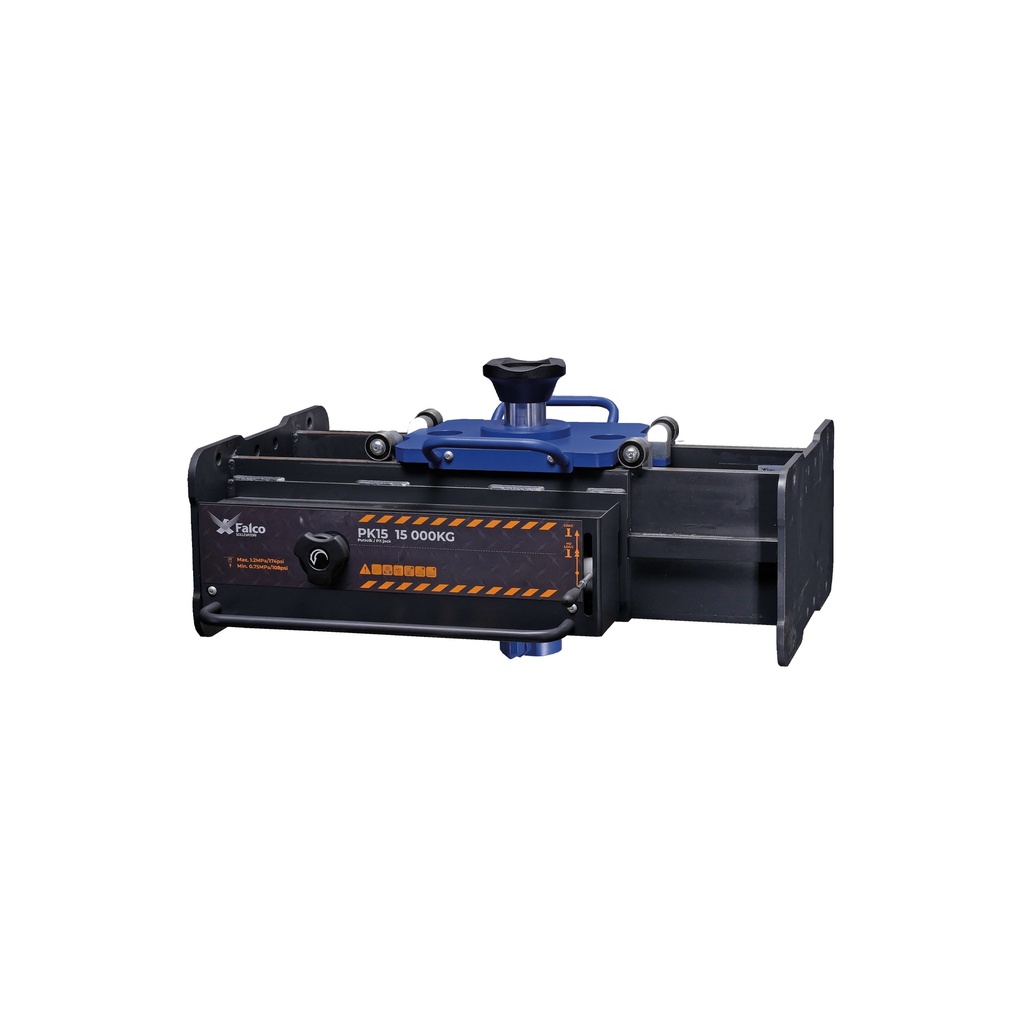

Air hydraulic pit jack 15 ton

Lifts / Pit jacks Brand: Falco Sollevatori Falco Sollevatori

Product Code: PK15

EAN: 8720028106356

Availability: Available

Expected back in stock: 14 - 16 weeks

€ 2,541.00 Incl. VAT https://schema.org/InStock 2541.0 EUR € 2,541.00

€ 2,100.00

  • Lifting capacity
  • Working air pressure
  • Lifting height max. incl. pads
  • Stroke
  • Lifting height min.
  • Extension
  • Total width

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This 15 ton single cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the single cylinder jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
The hydraulic cylinder can be positioned from left to right inside the frame to assure optimal lifting position.

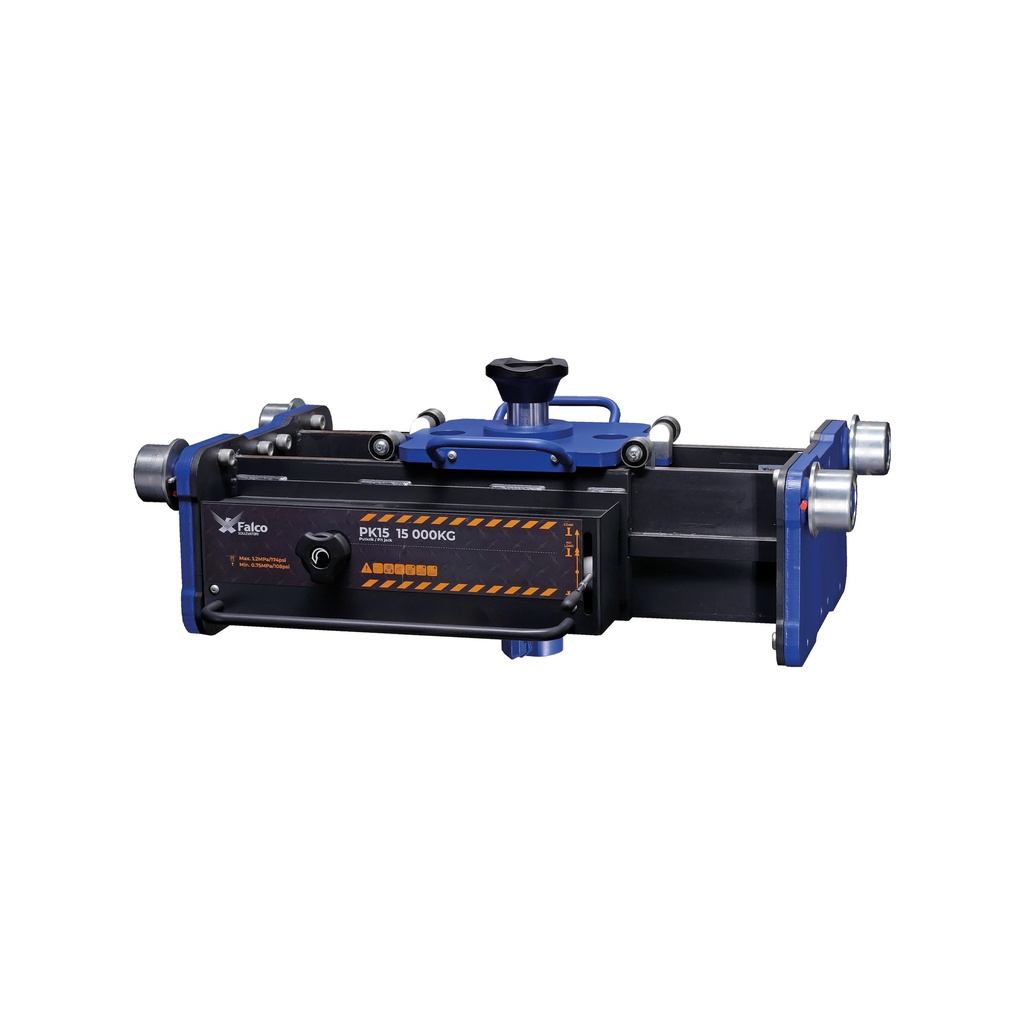

The pit jack moves on four wheels which can be mounted with separate adapter plates, the rollers on the adapter plate’s have roller bearings to ensure easy movement the length of the pit.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

Product Dimensions:
Product Length 585 mm
Product Width 860 mm
Product Height 420 mm
Product Weight 176.0 Kg
Package Dimensions:
Package Length 675 mm
Package Width 1,080 mm
Package Height 530 mm
Package Weight 211.00 Kg

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications

Lifting capacity 15000 kg
Working air pressure 7.5 - 12 Bar
Lifting height max. incl. pads 620 mm
Stroke 200 mm
Lifting height min. 420 mm
Extension 100 mm
Total width 600 - 880 mm
