jacking beam / hydraulic pit jack / hydropneumatic jack pit short

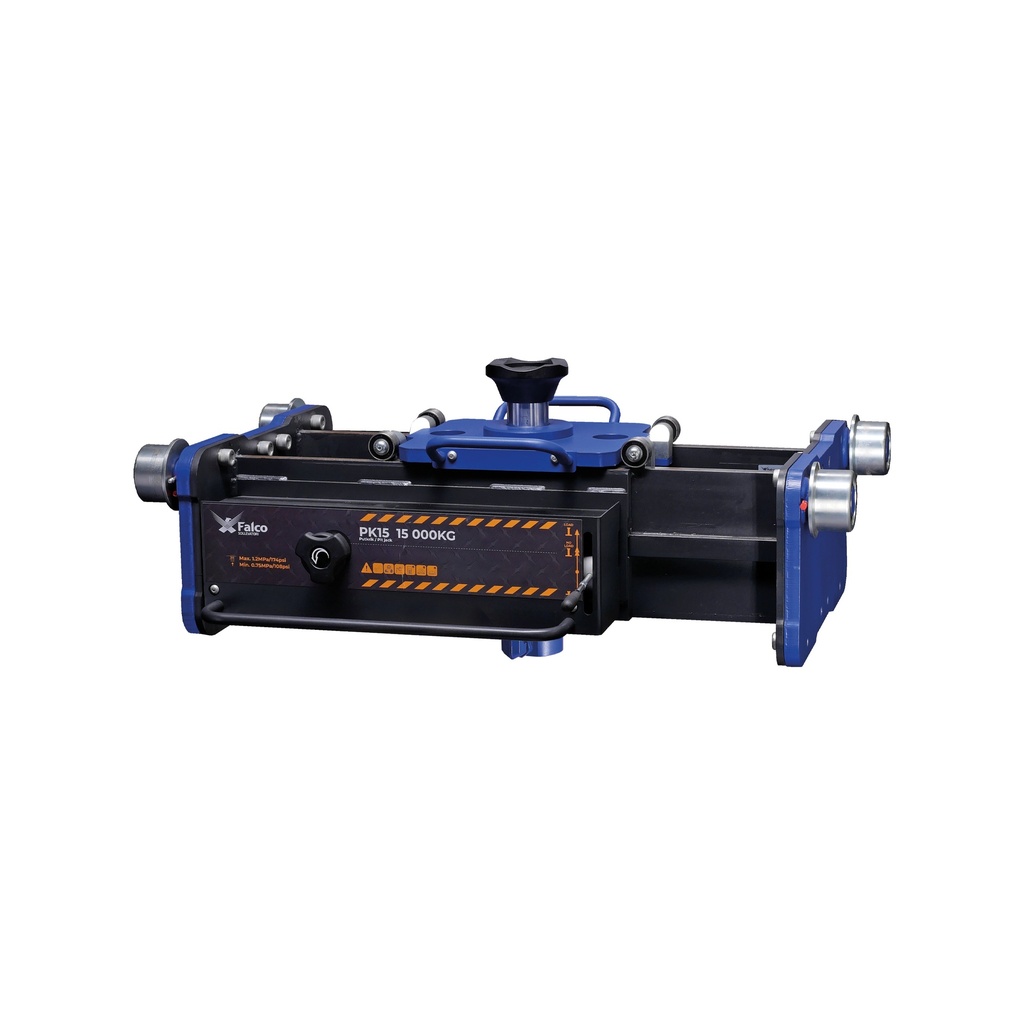

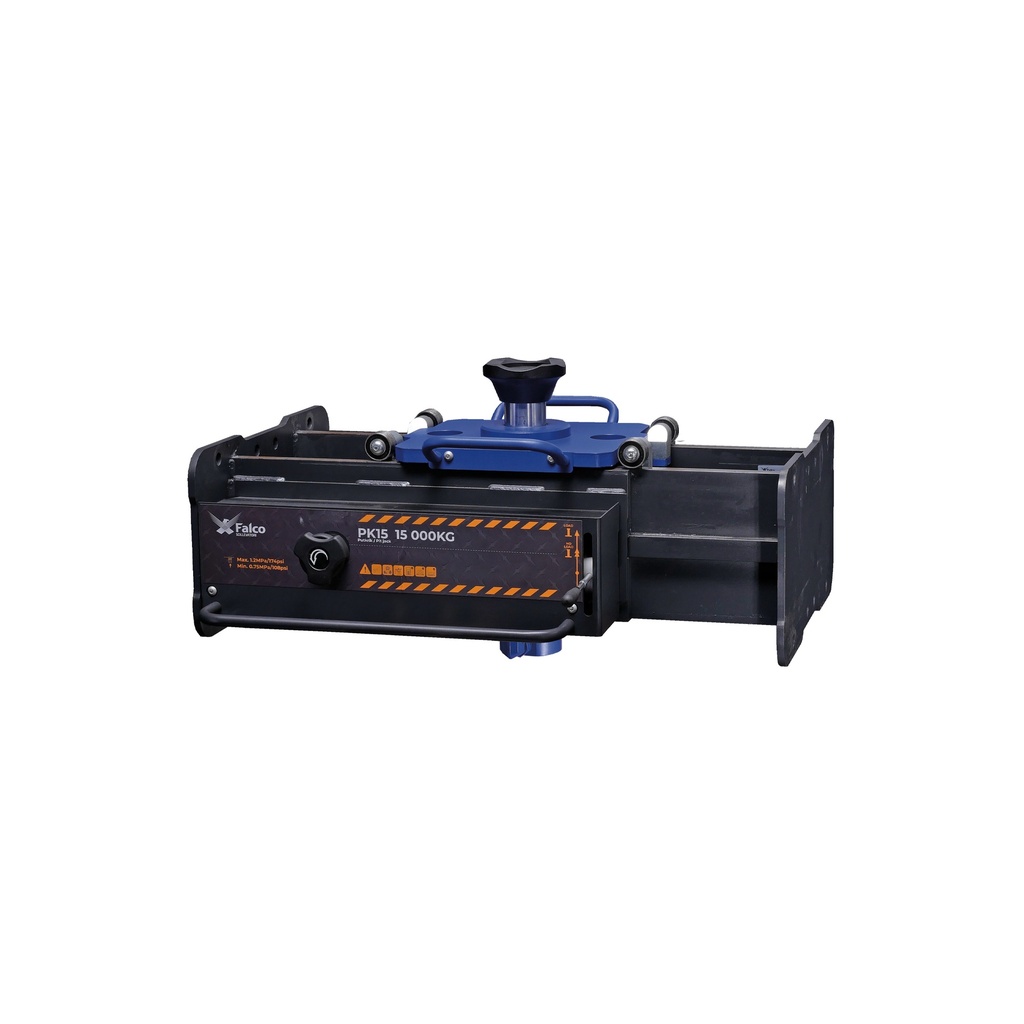

This 15 ton single cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the single cylinder jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
The hydraulic cylinder can be positioned from left to right inside the frame to assure optimal lifting position.
The pit jack moves on four wheels which can be mounted with separate adapter plates, the rollers on the adapter plate’s have roller bearings to ensure easy movement the length of the pit.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.
! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 585 mm |
| Produkt Breite | 860 mm |
| Produkt Höhe | 420 mm |
| Produktgewicht | 176,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 675 mm |
| Breite des Pakets | 1.080 mm |
| Paket Höhe | 530 mm |
| Gewicht des Pakets | 211,00 Kg |
