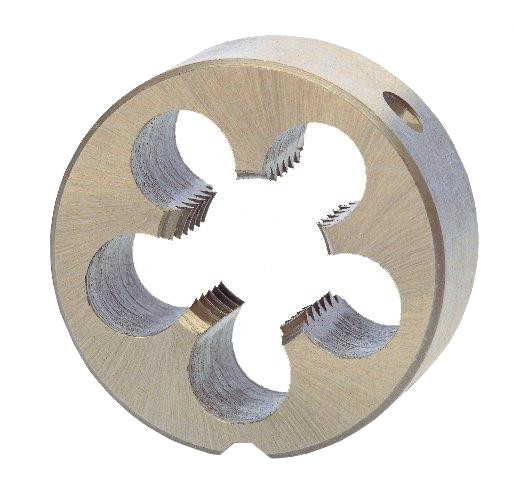

Round dies M18 HSS-G fully ground DIN EN 22568

Brand: Labor

Product Code: SC237180

EAN: 8720028098620

Availability: Available

https://www.valkenpower.com/web/image/product.template/62009/image_1920?unique=b17c2c7

€ 16.94 Incl. VAT 16.94 EUR € 16.94

€ 14.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Round dies

    HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

    Technical specificaties:

    • size = M18

    • pitch = 2,50mm

    • diameter = 45mm

    • thickness = 18mm

    • DIN EN 22568

    • material = HSS - G

    • right hand

    • fully ground

    Product Dimensions:
    Product Length 45 mm
    Product Width 45 mm
    Product Height 18 mm
    Product Weight 0.13 Kg
    Package Dimensions:
    Package Length 55 mm
    Package Width 50 mm
    Package Height 22 mm
    Package Weight 0.14 Kg

    • Fully ground, for external thread

    • Suitable for unalloyed steel

    • High precision

    • Long lifetime
