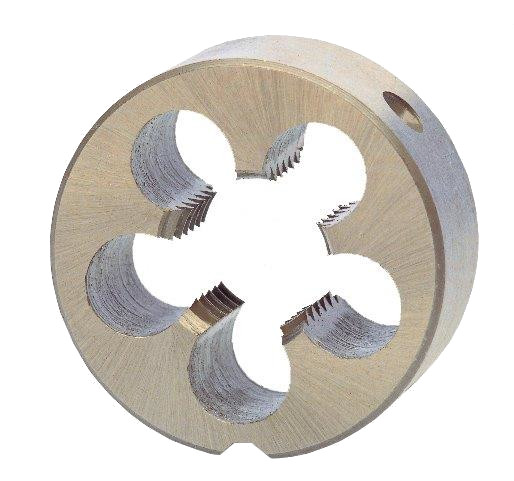

Round dies
HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.
Technical specificaties:
size = M24
pitch = 3,00mm
diameter = 55mm
thickness = 22mm
DIN EN 22568
material = HSS - G
right hand
fully ground
| Product Dimensions: | |
|---|---|
| Product Length | 55 mm |
| Product Width | 55 mm |
| Product Height | 22 mm |
| Product Weight | 0.23 Kg |
| Package Dimensions: | |
| Package Length | 70 mm |
| Package Width | 50 mm |
| Package Height | 30 mm |
| Package Weight | 0.24 Kg |
