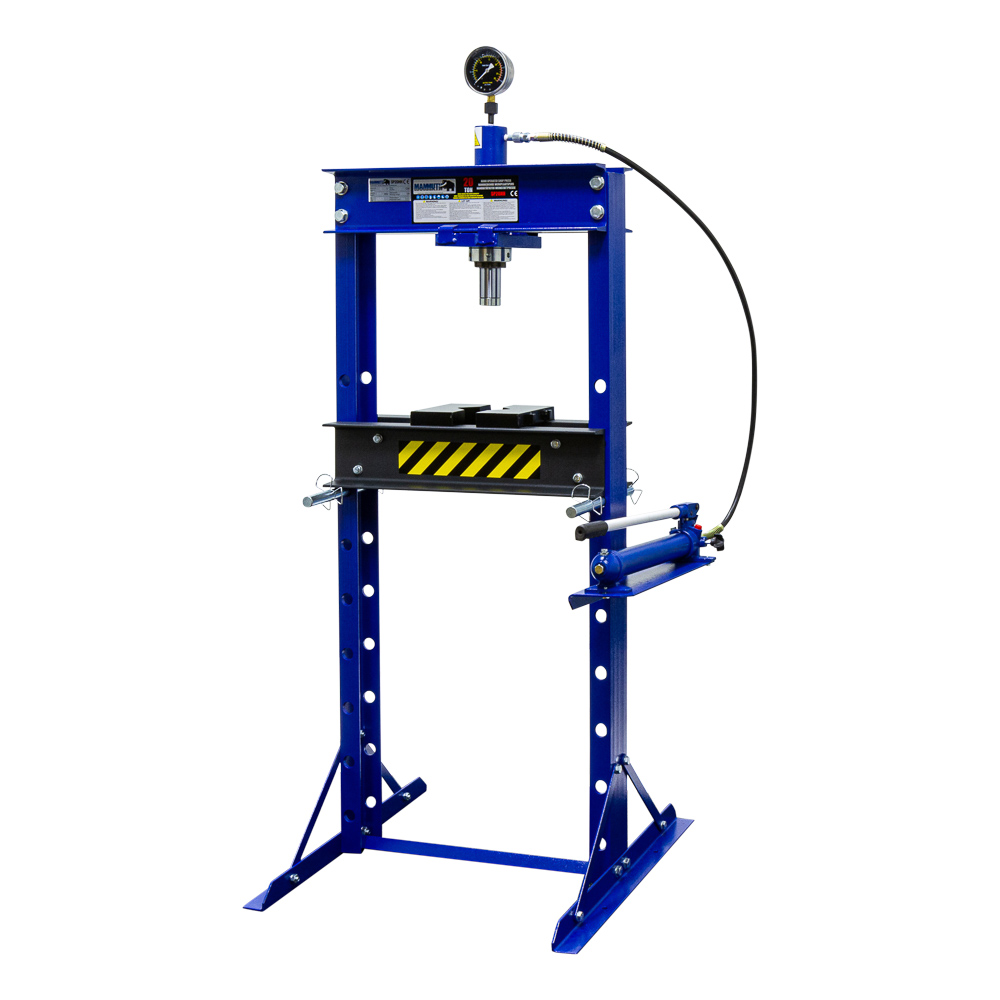

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.
- Adjustable workbed: Easily secured at 9 different heights.
- Interchangeable press adapter: Easily removable for using other attachments.
- Side-adjustable cylinder: For precise positioning.
- Includes press blocks: Comes with 2 press blocks.
Specifications
| Capacity | 20 ton |
| Workbed width | 542 mm |
| Workbed depth | 105 mm |
| Minimum working height | 25 mm |
| Maximum working height | 985 mm |
| Cylinder stroke | 185 mm |
| Cylinder diameter | ø48 mm |
| Oil capacity | 0.7 L |
| Oil type | OKCH68 |
Product Dimensions
| Length | 738 mm |
|---|---|
| Width | 700 mm |
| Height | 1,787 mm |
| Weight | 92.0 kg |
Package Dimensions
| Length | 1,535 mm |
|---|---|
| Width | 270 mm |
| Height | 335 mm |
| Weight | 114.00 kg |
