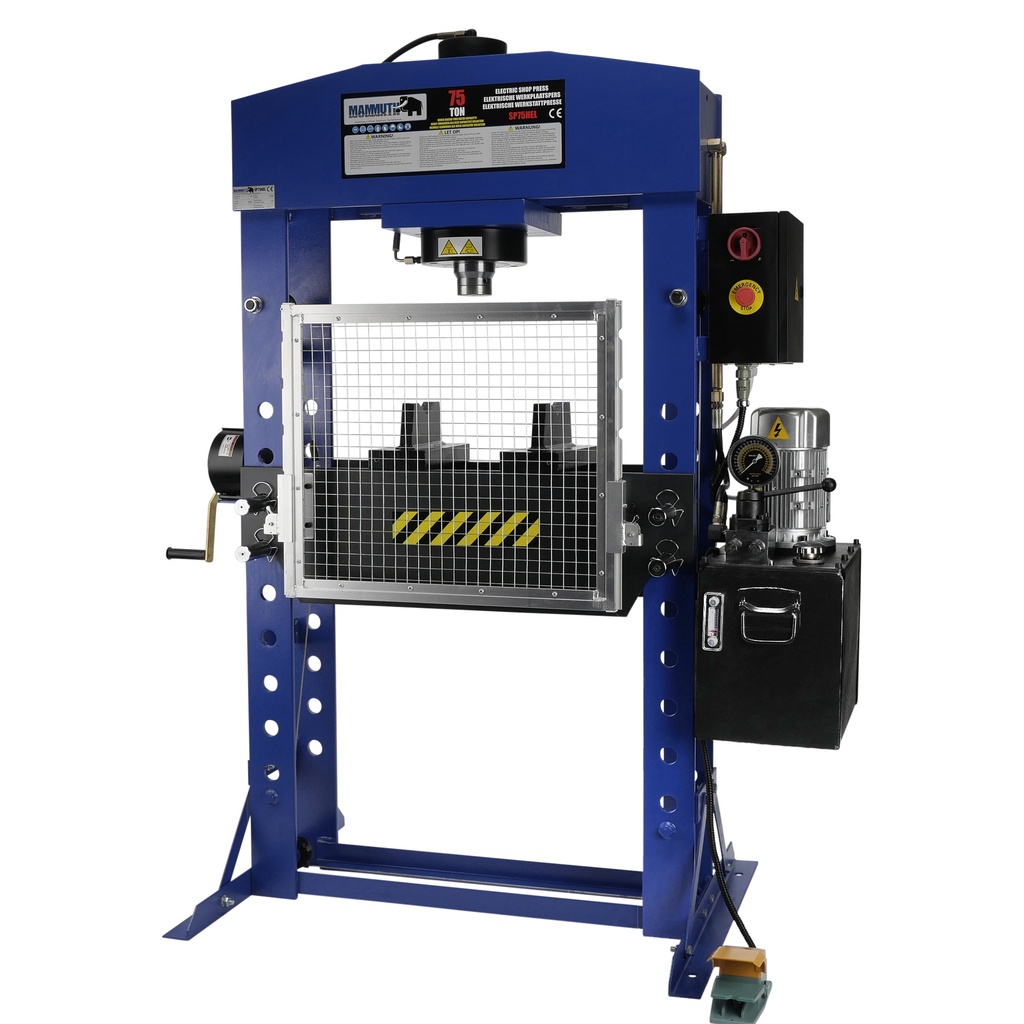

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, the press offers speed, power, and precision. This makes it a reliable choice for any workshop. The press is supplied with 2 pressing blocks.
- Electric control: Effortless and fast operation.
- Hand winch: Work table easily adjustable to 8 different heights and the cylinder adjustable sideways.
- Interchangeable pressing adapter: Easy to remove for using other attachments.
- Safety guard: For extra protection during use.
- Foot pedal: Keeps your hands free.
Please note: the press is supplied without CH22 hydraulic oil (22 liters).
Specifications
| Capacity | 75 ton |
| Workbed width | 800 mm |
| Workbed depth | 280 mm |
| Minimum working height | 183 mm |
| Maximum working height | 897 mm |
| Cylinder stroke | 250 mm |
| Cylinder diameter | ø78 mm |
| Voltage | 400V |
| Power | 1.5 kw |
| Motor speed | 1400 rpm |
| Pressing speed (outward) | 2.3 mm/sec |
| Pressing speed (inward) | 3.8 mm/sec |
| Oil capacity | 22 L |
| Oil type | OCH22 |
Product Dimensions
| Length | 1,140 mm |
|---|---|
| Width | 800 mm |
| Height | 1,860 mm |
| Weight | 491.0 kg |
Package Dimensions
| Length | 2,040 mm |
|---|---|
| Width | 1,090 mm |
| Height | 365 mm |
| Weight | 548.00 kg |
