Pneumatic tapping machine M3 - M12

Brand: Cowley

Product Code: TMP12

EAN: 8720028093960

Availability: Available

https://www.valkenpower.com/web/image/product.template/60729/image_1920?unique=a8c49c6

€ 877.25 Incl. VAT 877.25 EUR € 877.25

€ 725.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

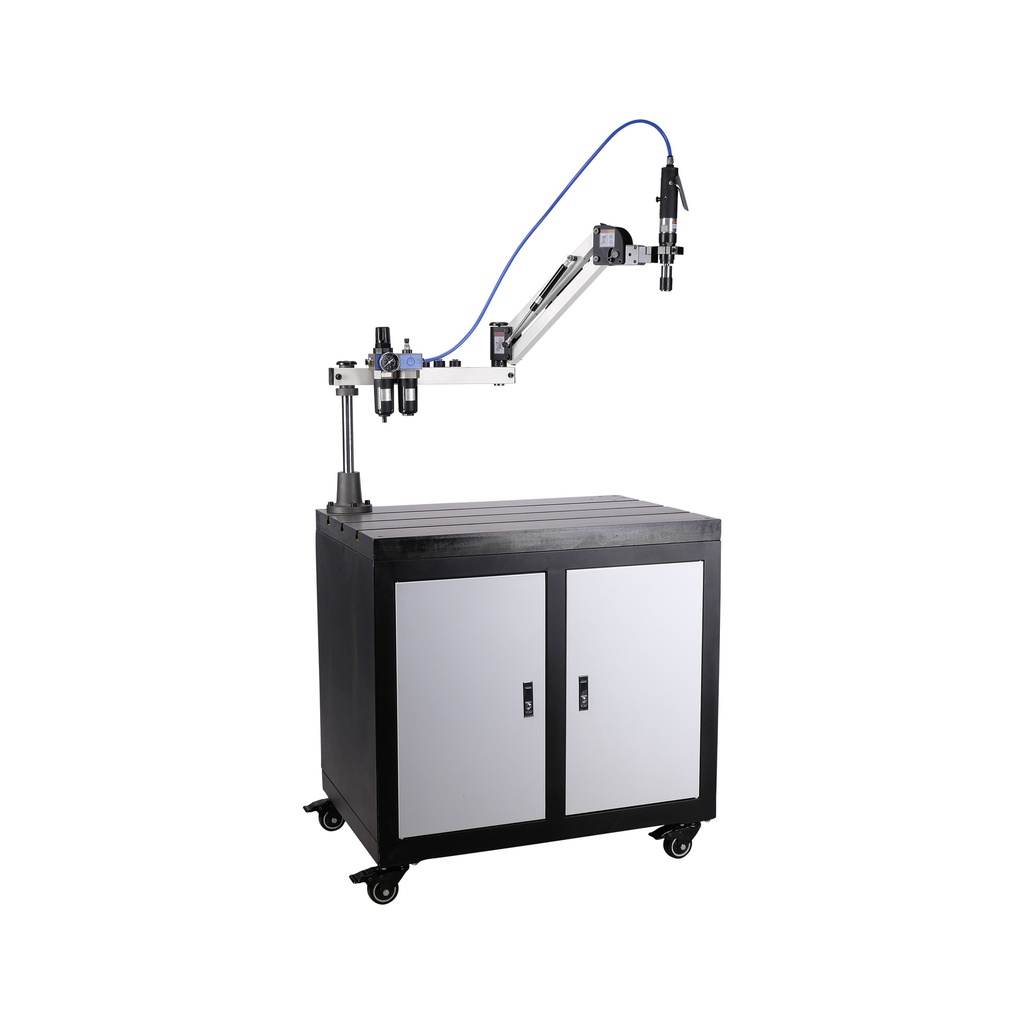

    Pneumatic tapping machine / tapping arm on air

    This Cowley pneumatic tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically.

    The tapping machine also has the following features:

    • Wide tap range from M3 to M12

    • Weightless operation thanks to gas springs

    • Interchangeable tap heads with quick-release system

    • Variable and adjustable speed

    • Pressure regulator with gauge

    Technical specifications:

    • working pressure = 6 to 8 bar

    • tap range = M3 to M12

    • max. speed = 400rpm

    • max. working radius = 1000mm

    The machine comes standard with:

    6x GT12 DIN tap holder with slip coupling (adjustable torque):

    • M3 (ø3,5mm / shank = 2,7mm)

    • M4 (ø4,5mm / shank = 3,4mm)

    • M5-6 (ø6.0mm / shank = 4.9mm)

    • M8 (ø8.0mm / shank  = 6.2mm)

    • M10 (ø10.0mm / shank = 8.0mm)

    • M12 (ø9.0mm / shank = 7.0mm)

    PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.

    Product Dimensions:
    Product Length 1,100 mm
    Product Width 230 mm
    Product Height 100 mm
    Product Weight 14.0 Kg
    Package Dimensions:
    Package Length 680 mm
    Package Width 275 mm
    Package Height 260 mm
    Package Weight 19.40 Kg

    • Easy control

    • Wide tap range

    • Weightless operation thanks to gas springs

    • Interchangeable tap heads with quick-release system

    • Variable and adjustable speed
