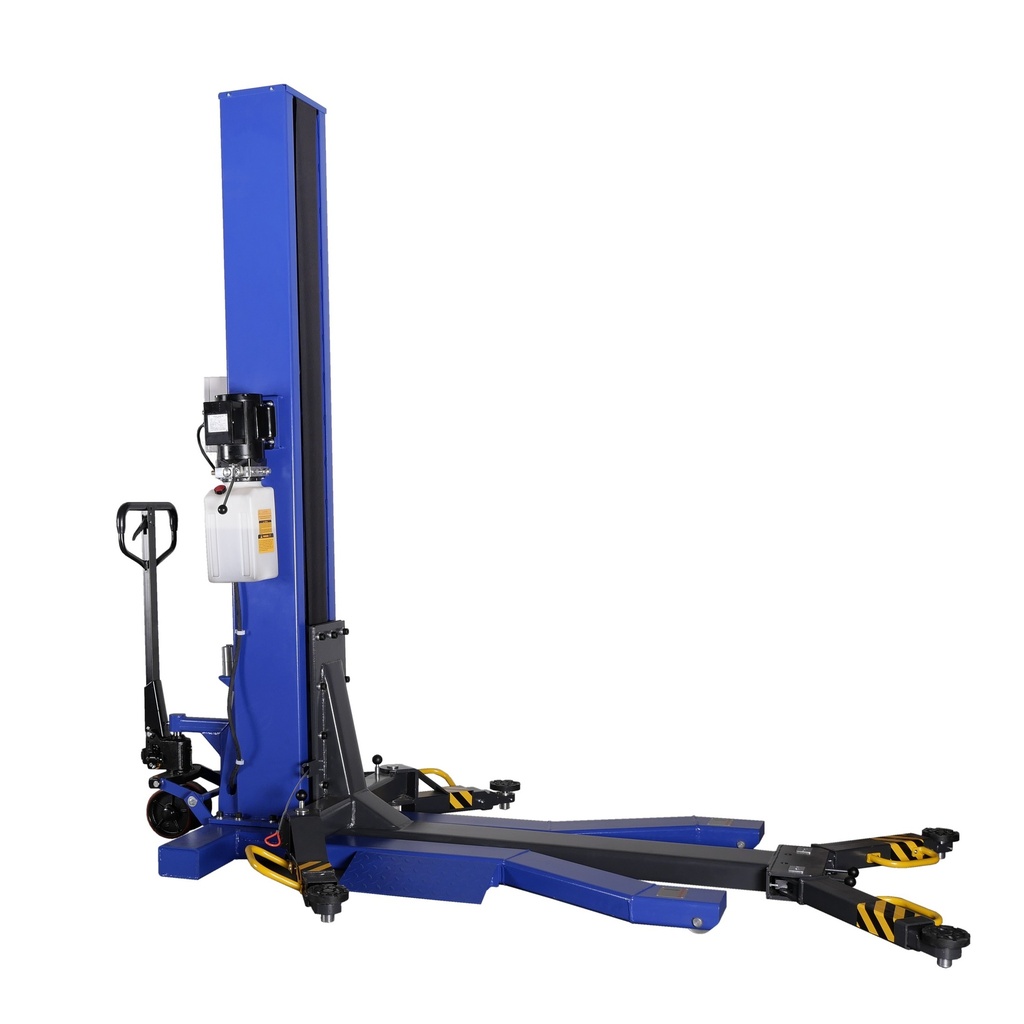

Mobile single post lift
This Falco Sollevatori single post lift is of high quality and extremely suitable for professional use. The lift is thanks to its stable and solid design easy to place on a level surface and installation is not required due to the sturdy construction.
Every lift comes with a set of wheels, allowing to move the lift easily and use the workplace optimally.
Thanks to its unique design the lift is provided with the following standard features:
min. lift height of 90mm
in height adjustable lifting pads with double thread
automatic arm lock
telescopic extendable lifting arms
automatic detent
protective cap on the inside of the column
transparent oil reservoir incl. oil level
robust column manufactured from rolled steel
hydraulic cylinder, no need to use a compressor / compressed air connection
foot protection
dead man's switch for lifting and lowering
shutdown when reached highest position
english instruction manual incl. maintenance protocol and CE certificate 2006/42/EG
meets the NEN-EN1493 safety standards
Specifications
| Lifting capacity | 2500 kg |
| Lifting height min. | 90 mm |
| Voltage | 230V |
| Lifting height max. | 2040 mm |
| Oil type | CH32 |
| Voltage control unit | 24 V |
| Motor capacity | 2.2 kW |
| Reach rear lifting arms | 500 - 661 mm |
| Reach front lifting arms | 560 - 863 mm |
| Lifting time | <55 sec. |
| Columns height | 2600 mm |
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 710.0 Kg |
| Package Dimensions: | |
| Package Length | 2,500 mm |
| Package Width | 1,300 mm |
| Package Height | 1,500 mm |
| Package Weight | 775.00 Kg |
