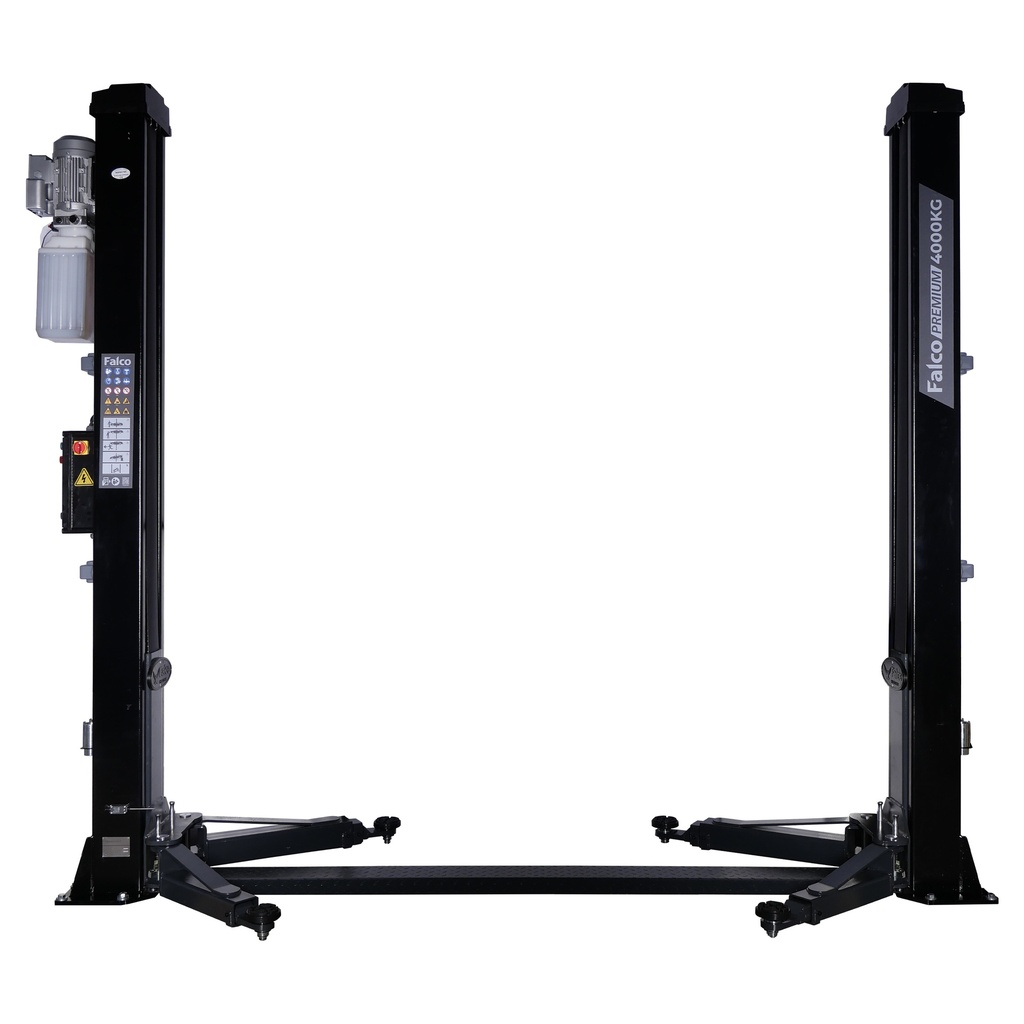

Zwei Säulen Hebebühne
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Premium" fully automatic model is a very complete and reliable model, making the lift suitable for a large number of vehicles.
Features:

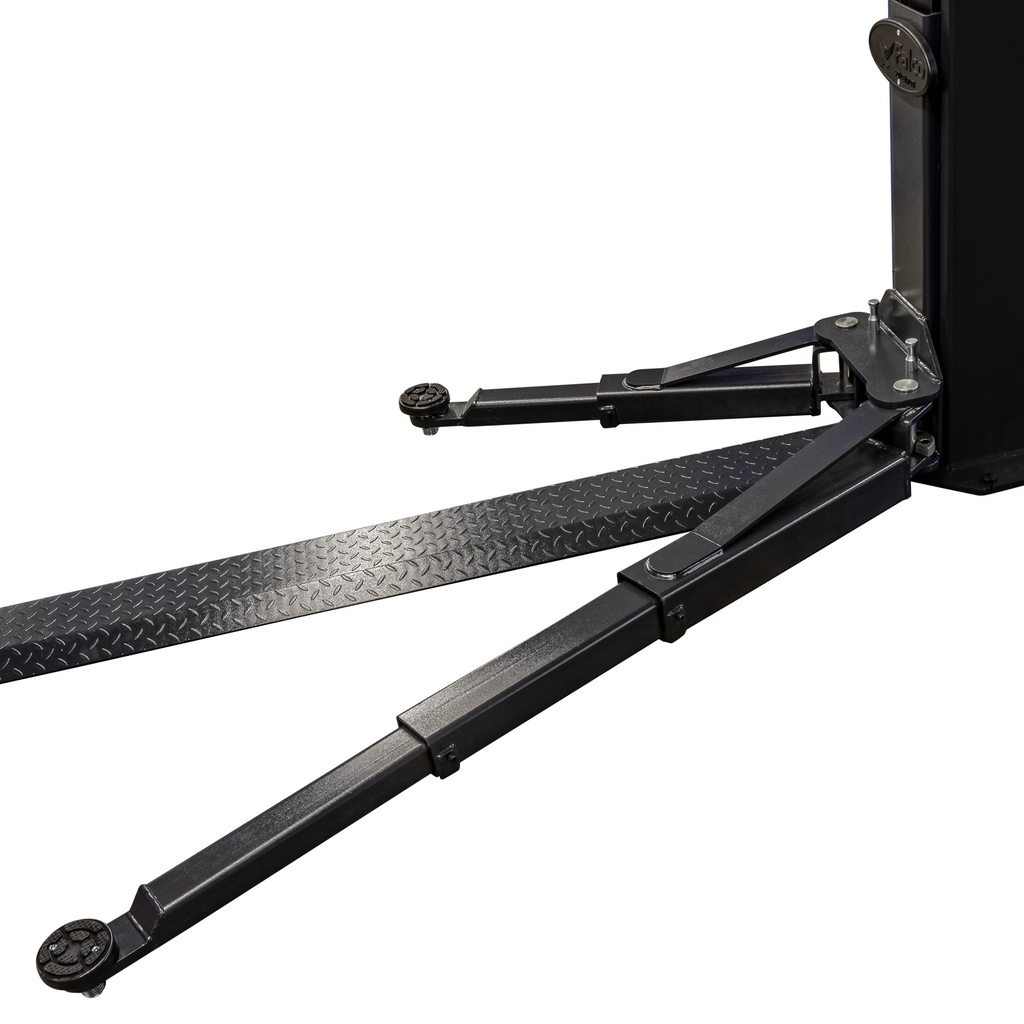

double and triple telescopic extendable lifting arms
steel cable synchronization control

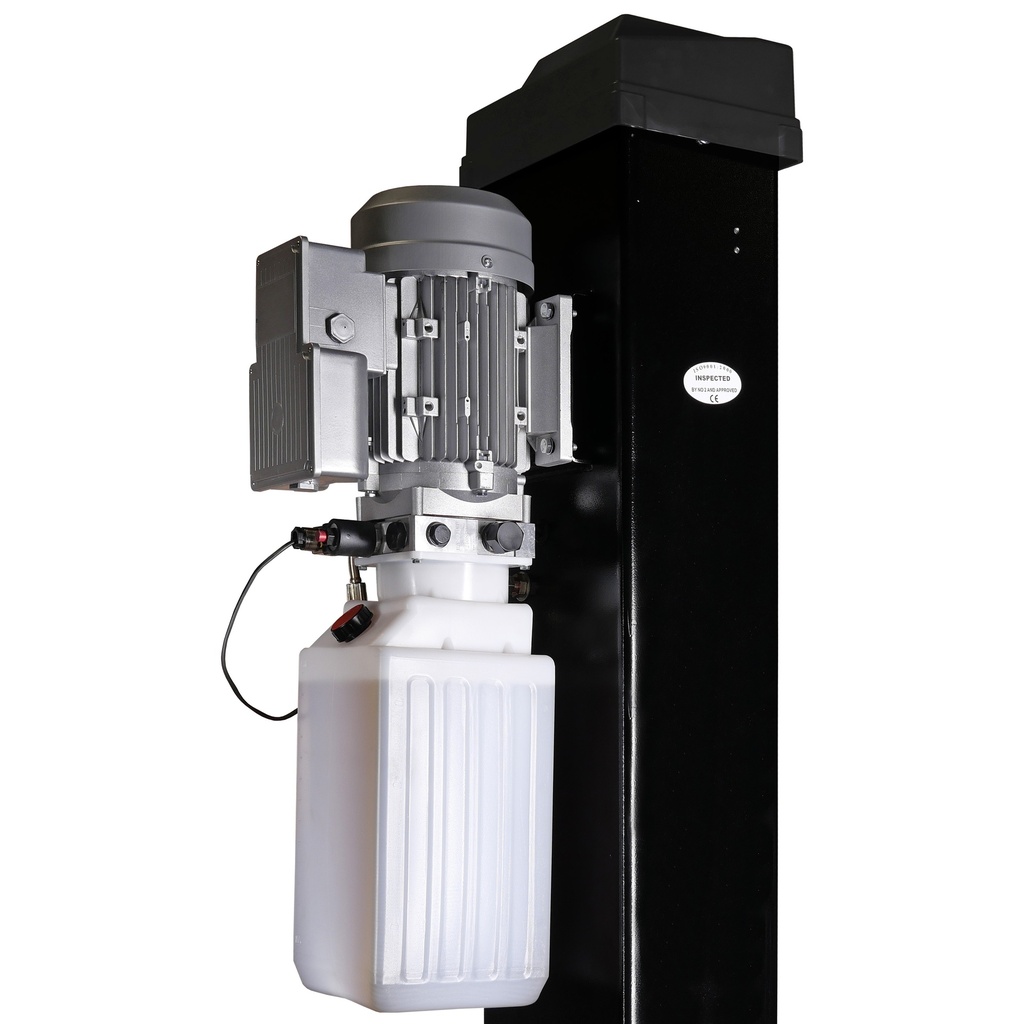

quality hydraulic pump incl. cooling fins
clear oil reservoir incl, oil level
foot protection incl. acoustic security signal
turns off when the highest position is reached
in height adjustable lifting pads with double spindles

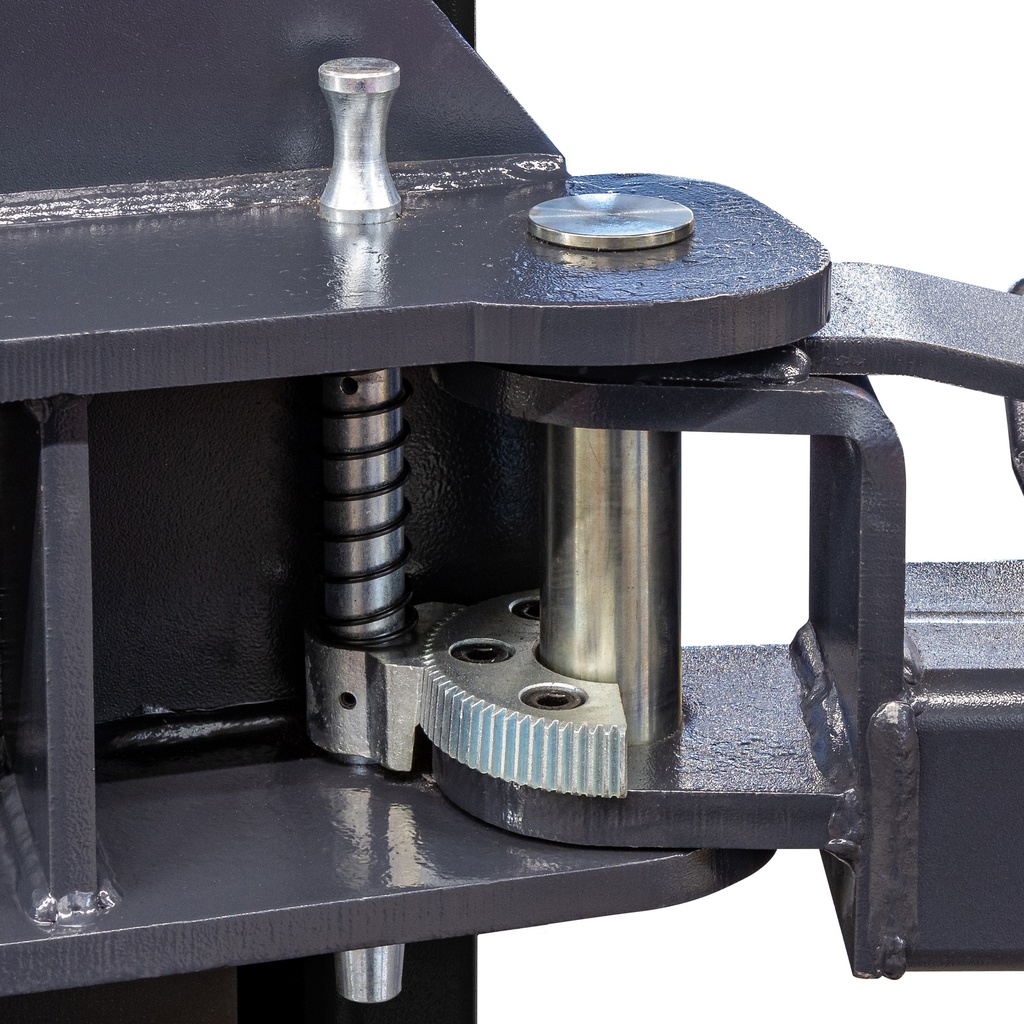

automatic support arm locking
fully automatic electric detent

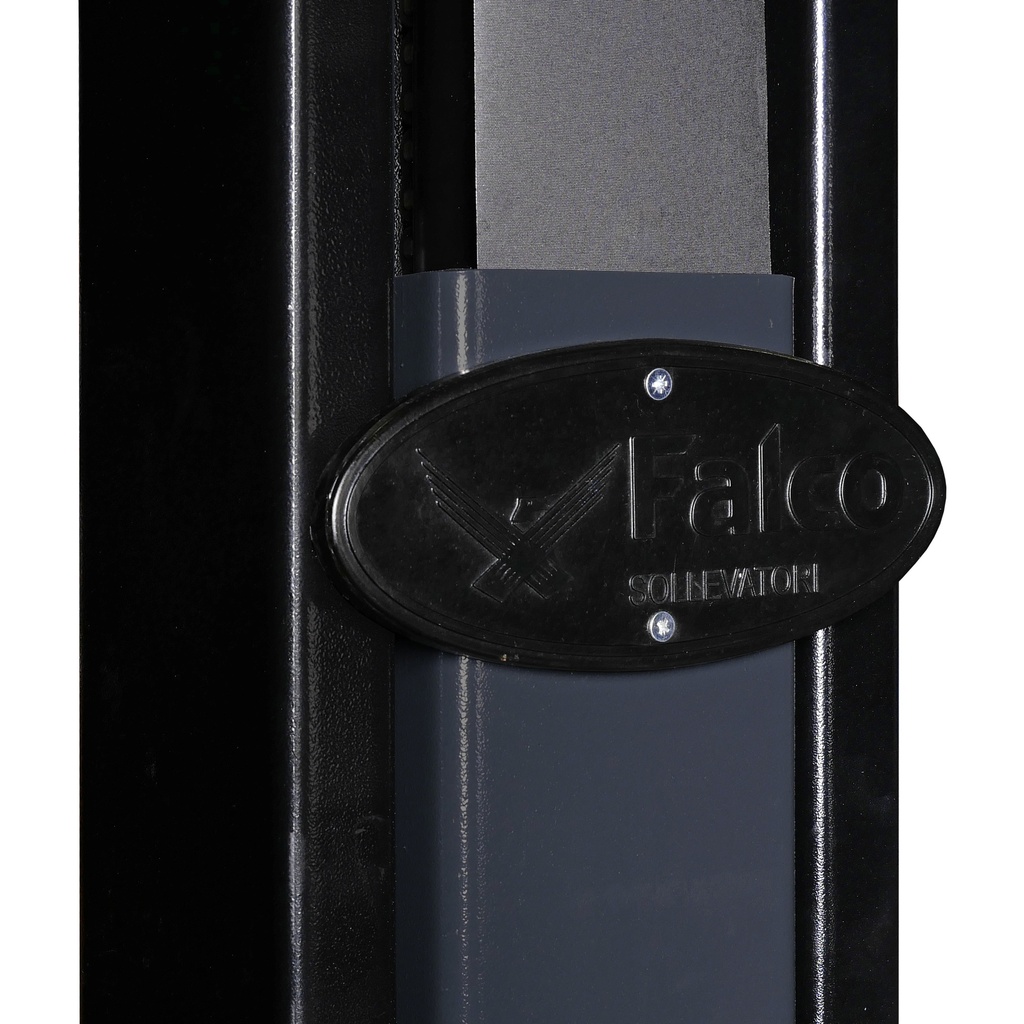

protective caps on the inside of the columns
protective rubbers door stop
robust columns manufactured from rolled steel
hydraulic cylinder on both sides
extreme low threshold of 45mm

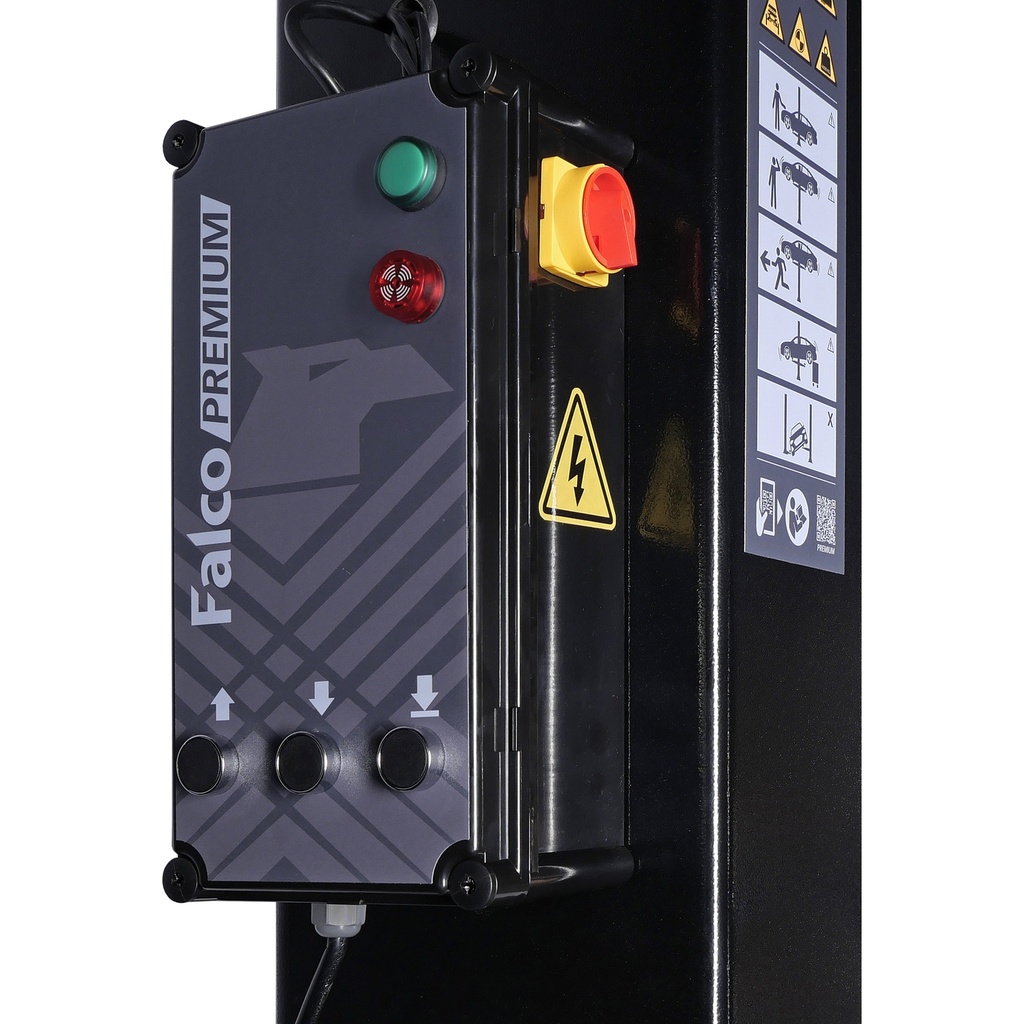

dead man's switch for lifting and lowering
automatic protection against overcharge
height limit switch
12 heavy M18 security bolts
Technical specifications:
capacity = 4000kg
voltage = 230V
motor power = 2,2kW
min. working height = 100mm
max. lifting height = 1850mm

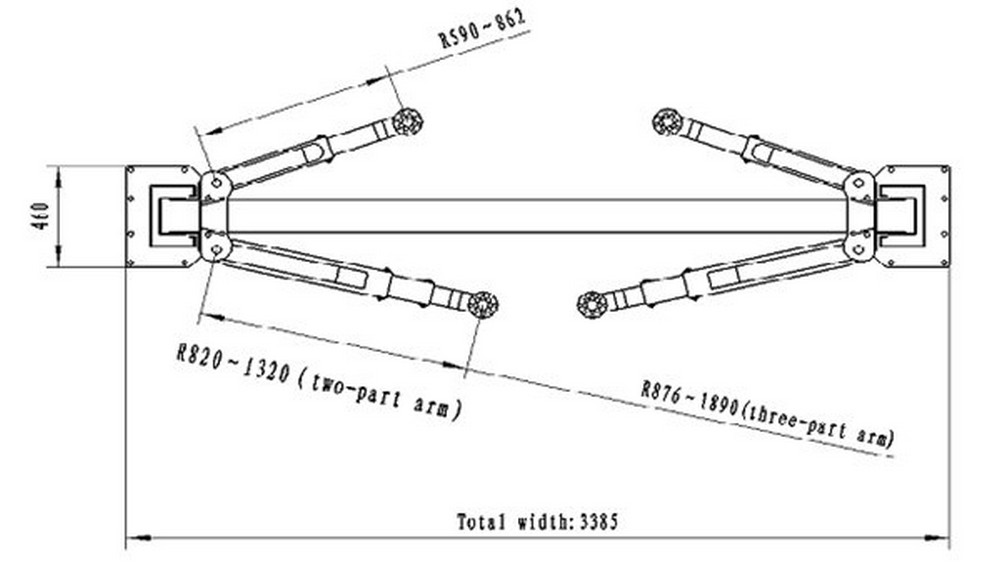

reach short lifting arm = 620 - 890mm
reach long lifting arm = 790 - 1570mm

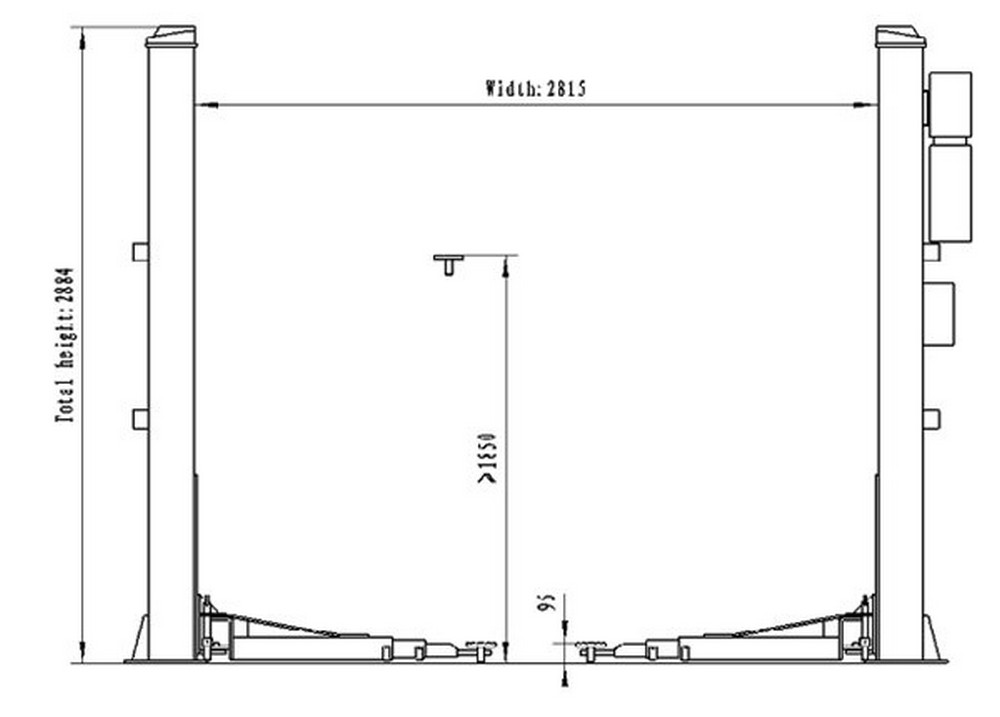

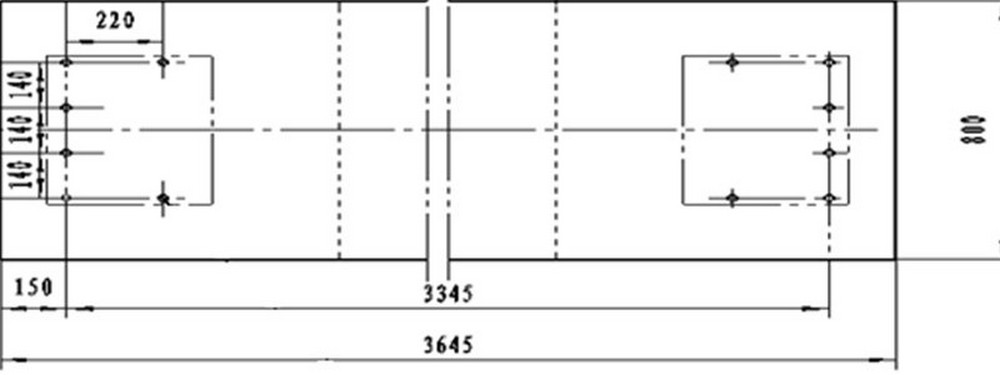

distance between the columns = 2815mm
height of the columns = 2806mm
weight = 610kg
oil capacity = 10L CH32 (not included!)
All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
Product Dimensions: | |
---|---|
Product Length | 0 mm |
Product Width | 0 mm |
Product Height | 0 mm |
Product Weight | 610.0 Kg |
Package Dimensions: | |
Package Length | 2,890 mm |
Package Width | 500 mm |
Package Height | 720 mm |
Package Weight | 620.00 Kg |
