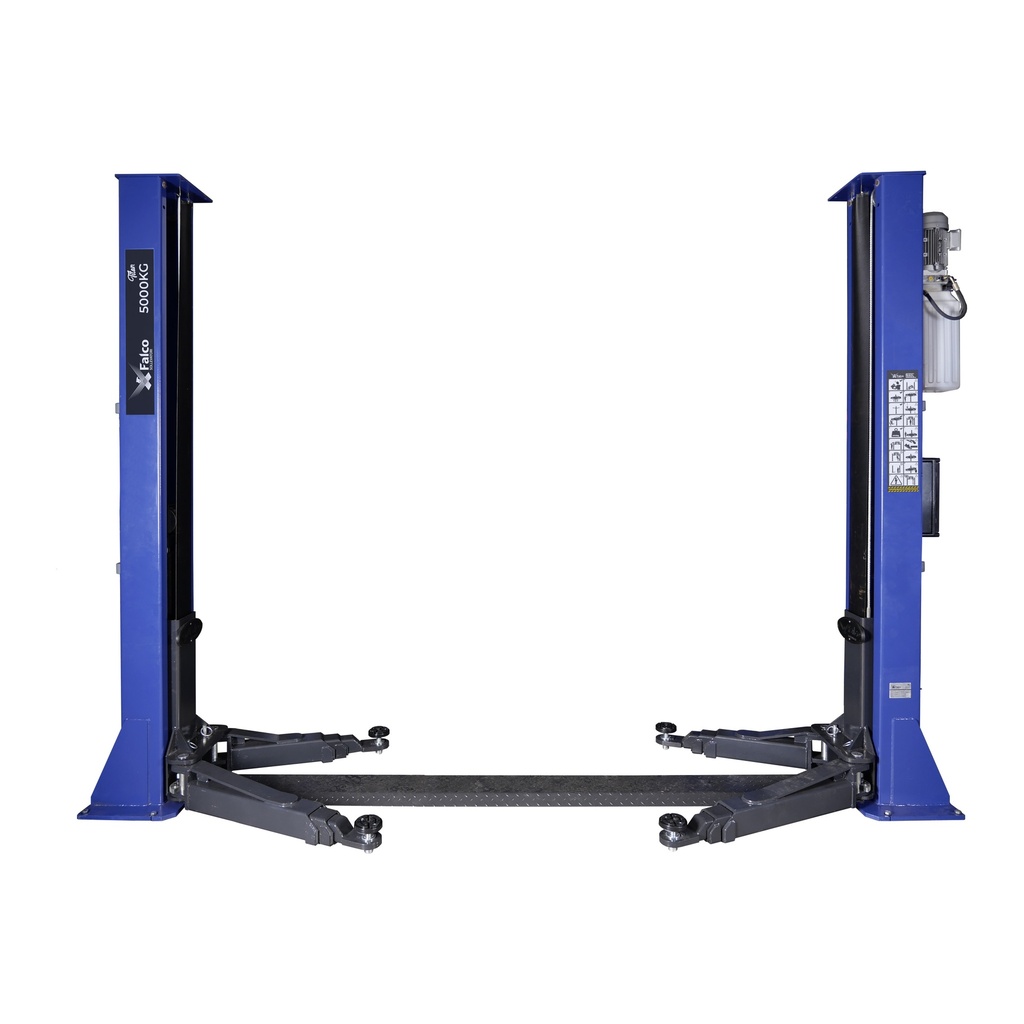

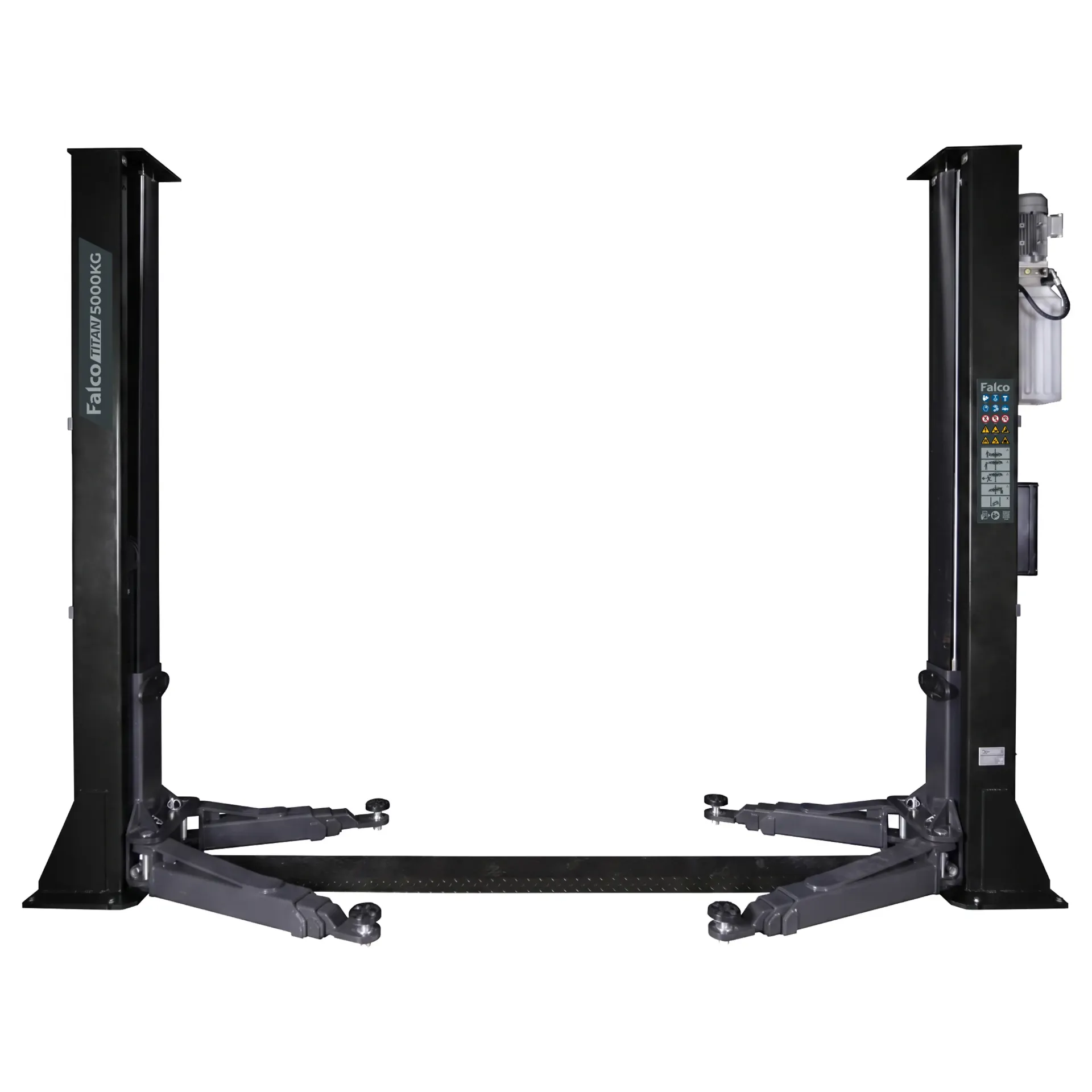

Two post lift 5000kg 400V Titan

Brand: Falco Sollevatori

Product Code: VL50F400

EAN: 8720028097210

Availability: Available

https://www.valkenpower.com/web/image/product.template/61854/image_1920?unique=b0dfb07

€ 3,811.50 Incl. VAT 3811.5 EUR € 3,811.50

€ 3,150.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Two column lift bridge / two pile bridge / 2 column lift bridge

    Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The Titan fully automatic model has a large range, is a very complete and reliable model, making the lift suitable for large vehicles in particular.

    Features:

    • Large triple telescopic adjustable wishbones

    • Steel cable synchronization control (synchronization)

    • Quality hydraulic pump incl. cooling fins

    • 24V control box

    • Transparent oil reservoir incl. oil level

    • Foot protection incl. acoustic safety signal

    • Exit when reaching highest position

    • Height adjustable carrying pads with double spindles

    • Automatic wishbone lock

    • Fully automatic electric detent

    • Protective cap inside column

    • Robust columns made of rolled steel

    • Protective rubbers door stop

    • Hydraulic cylinder on both sides

    • Dead mans operation when lifting and lowering

    • Automatic overload protection

    • Height Limit Switch

    • Fixing kit floor mounting

    • Set of 70mm height adapters (4 pieces)

    Technical specifications:

    • capacity = 5000kg

    • voltage = 400V

    • motor power = 2.2kW

    • minimum recording height = 105mm

    • maximum lifting height = 1900mm

    • reach short lift arms = 800 - 1500mm

    • reach long lift arms = 1000 - 1950mm

    • distance between the columns = 3342mm

    • height of the columns = 2880mm

    • total width = 4136mm

    • weight = 1000kg

    • oil capacity = 10L CH32 (not included)

    All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.

    Product Dimensions:
    Product Length 4,136 mm
    Product Width 600 mm
    Product Height 2,930 mm
    Product Weight 1,000.0 Kg
    Package Dimensions:
    Package Length 2,950 mm
    Package Width 630 mm
    Package Height 1,100 mm
    Package Weight 1,050.00 Kg

    • 5000kg Capacity

    • Very large range

    • Fully automatic

    • Triple adjustable arms

    • Adjustable Double Spindle Pads
