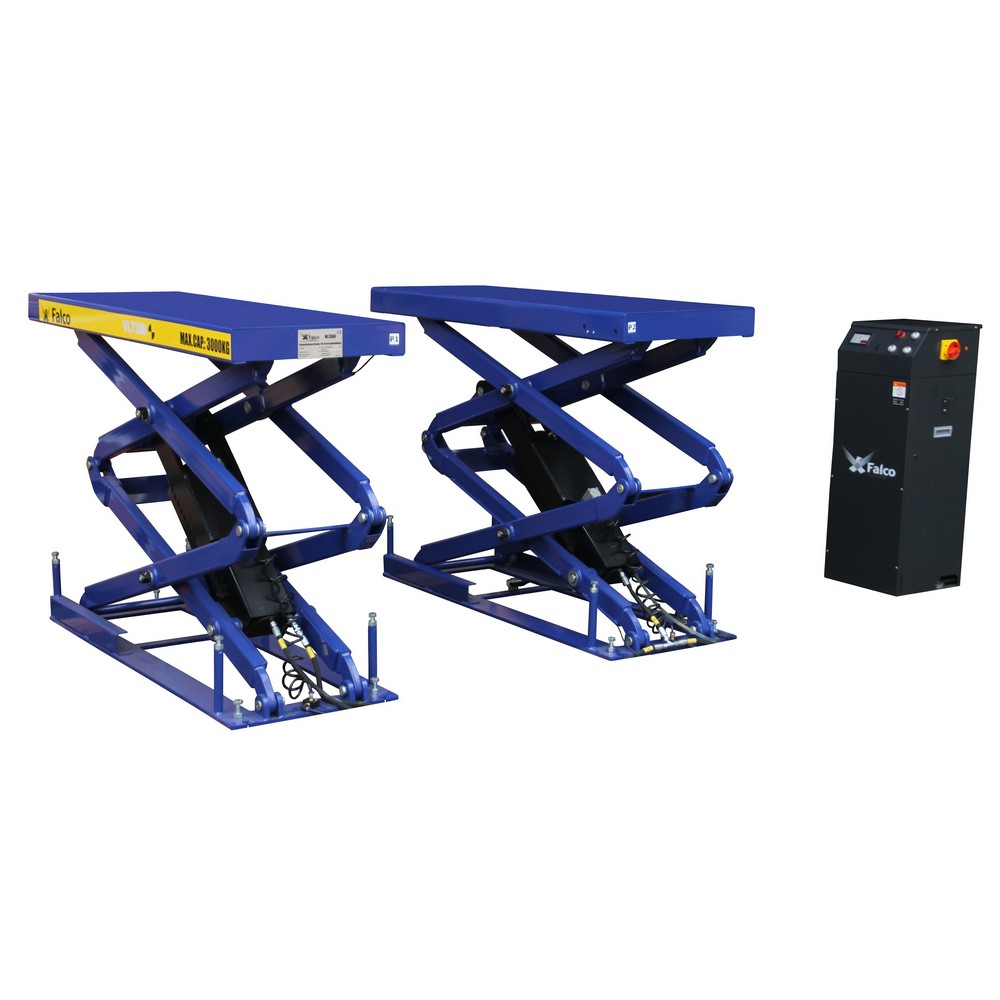

Double scissor lift in-ground 3000kg 400V

Lifts / Crosslifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL7330

EAN: 8720028070404

Availability: Available

€ 3,539.25 Incl. VAT https://schema.org/InStock 3539.25 EUR € 3,539.25

€ 2,925.00

  • Voltage
  • Lifting capacity
  • Platform length incl. ramps
  • Platform width
  • Distance between the platforms
  • Motor capacity
  • Oil type
  • Lifting height min.
  • Lifting height max. incl. pads
  • Lifting time

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Fully automatic scissor lift / built-in lift

This Falco Sollevatori wheel-free double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.

This built-in double scissors lift model is accessible all around and suitable for many vehicles, including extra low cars. Because of the extendable platforms, the lift is also suitable for small vans.
Thanks to its robust construction and thoughtful design, the scissors lift is standard equipped with the following convenient features:

  • platform length = 1540mm, extendable to 1745mm

  • electro-hydraulic double transpump

  • equipped with 2 heavy hydraulic cylinders

  • automatic venting through vent button

  • automatic synchronization

  • automatic overload protection

  • pneumatic unlocking made of high-quality material

  • control valve for controlling the speed when dropping

  • limit sensor for limiting the maximum lifting height and the minimum safety height

  • deadman operation when lifting and lowering

  • foot protection including acoustic protection signal

  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG

  • complies with the NEN-EN1493 safety standard

Product Dimensions:
Product Length 1,540 mm
Product Width 1,900 mm
Product Height 1,500 mm
Product Weight 800.0 Kg
Package Dimensions:
Package Length 600 mm
Package Width 1,560 mm
Package Height 2,000 mm
Package Weight 800.00 Kg

  • Accessible all around because of built-in model

  • Extendable platforms up to 1745mm

  • Suitable for extra low cars

Specifications

Voltage 400V - 3 Phase
Lifting capacity 3000 kg
Platform length incl. ramps 1745 mm
Platform width 550 mm
Distance between the platforms 800 mm (recommended)
Motor capacity 2.6 kW
Oil type CH32 / CH46
Lifting height min. nvt
Lifting height max. incl. pads 2030 mm
Lifting time 60 sec.
