Fully automatic car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge

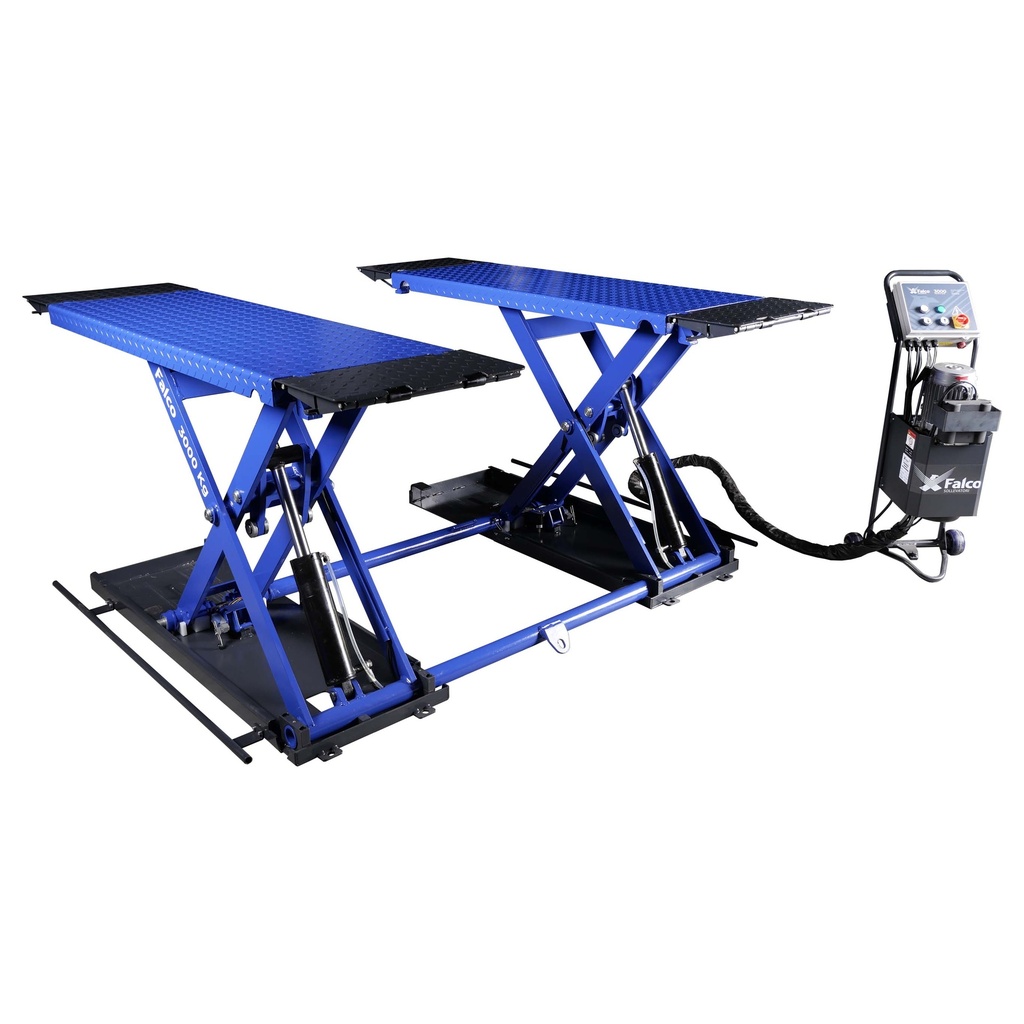

This Falco tire bridge focuses on efficiency and ease of use. Thanks to the Sync safety system, it always drops synchronously. The bridge is equipped with an acoustic signal and a rail is fitted at the bottom for foot protection. The lanes are made of wear-resistant tear plate over the entire length. The stable solid design is easy to use anywhere on a straight surface and also includes mounting holes for fixed installation. It can be used both mobile and fixed. The bridge is supplied as standard including a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop.
Characteristics:
Extra low ramp height of 110mm
Mobile tire bridge
Powerful hydraulic cylinders
Fully automated electric safety interlock
Foot protection incl. acoustic safety signal
Start elevator
Adjustable ramp / extension piece
Foot protection switch
Emergency lowering valve
Incl. Wheel set, plug and rubber support blocks
lock = automatic
Specifications
| Lifting capacity | 3000 kg |
| Lifting height min. | 115 mm |
| Voltage | 230V |
| Lifting height max. incl. pads | 1025 mm |
| Platform length incl. ramps | 1984 mm |
| Platform width | 515 mm |
| Distance between the platforms | 810 mm |
| Oil type | CH32 / CH46 |
| Motor capacity | 1.5 kW |
| Lifting time | 35 sec. |
| Product Dimensions: | |
|---|---|
| Product Length | 1,984 mm |
| Product Width | 1,861 mm |
| Product Height | 1,000 mm |
| Product Weight | 580.0 Kg |
| Package Dimensions: | |
| Package Length | 2,000 mm |
| Package Width | 1,700 mm |
| Package Height | 1,200 mm |
| Package Weight | 592.00 Kg |
