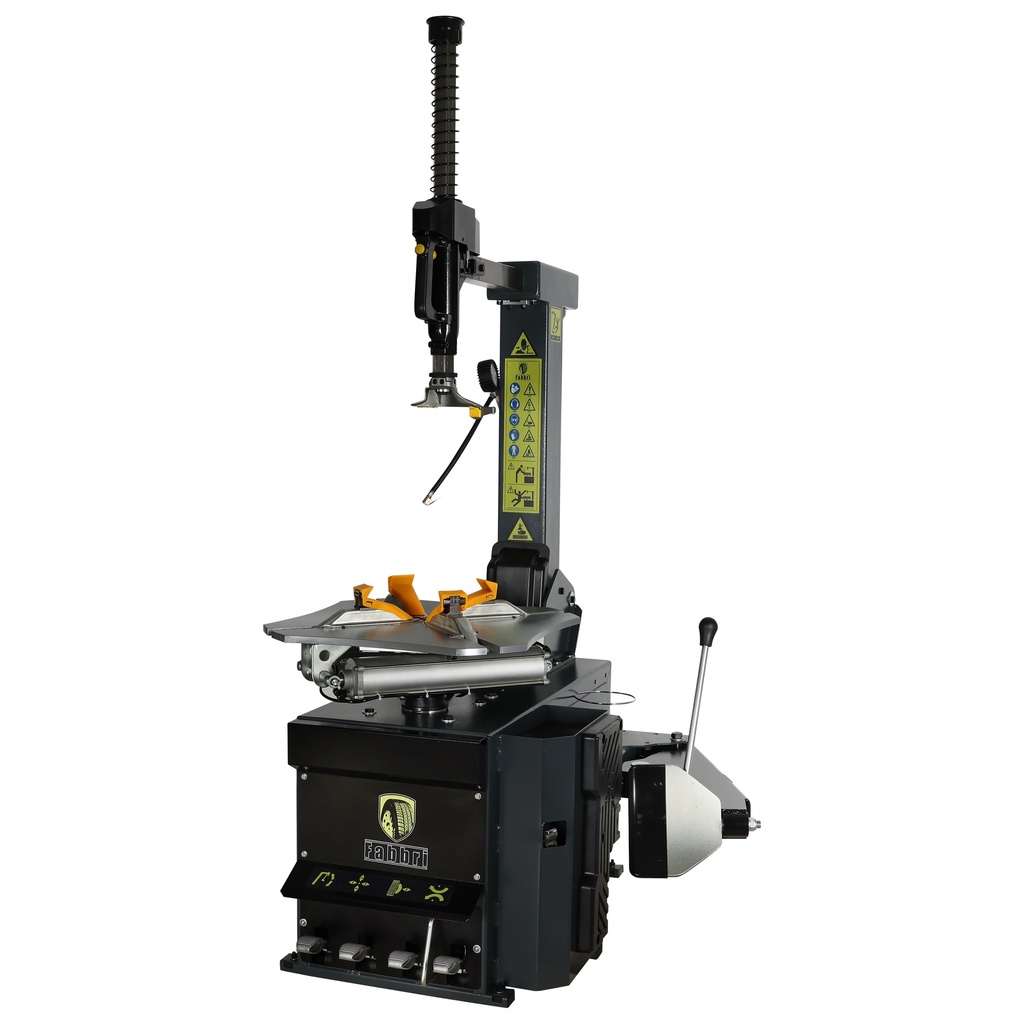

Car tyre changer
Full-automatic tyre changer equipped with stabile tilting post for intensif use. This tyre changer is provided with reinforced frame this has a double function for trouble free dis-mounting of low profile tyres.
Technical specs:
- motor power = 1.1Kw /1.5Pk
- power = 230V
- bead-breaker force = 2500kg
- operating pressure = 8-10 bar
- rim clamping from outside = 10''- 21''
- rim clamping from inside = 12''- 24''
- max wheel diameter = 41'' (1040)mm
- wheel width = 14''- (355)mm
- type = ZH650
standart provided accessories :
beading lifting tool, air purifier, accessoires set for alloyrims, gun inflator, locking wedge protector, connector
Specifications
| Rim diameter range | 10" - 24" |
| Tire width max. | 14" (355 mm) |
| Wheel diameter max. | 41" (1040 mm) |
| External clamping range | 10" - 21" (254 - 533 mm) |
| Internal clamping range | 12" - 24" (305 - 610 mm) |
| Working air pressure | 8 - 10 Bar |
| Power supply | 230V |
| Frequency | 50 Hz |
| Motor capacity | 1.1 kW |
| Bead breaker force | 2500 kg |
| Rotation speed | 6 - 8 rpm |
| Mounting head shaft diameter | 30 mm |
| Sound level | 70 dB |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 960 mm |
| Product Width | 1,050 mm |
| Product Height | 1,825 mm |
| Product Weight | 221.0 Kg |
| Package Dimensions: | |
| Package Length | 750 mm |
| Package Width | 970 mm |
| Package Height | 910 mm |
| Package Weight | 241.00 Kg |
| Package Type: | |
| 1 Pcs |
