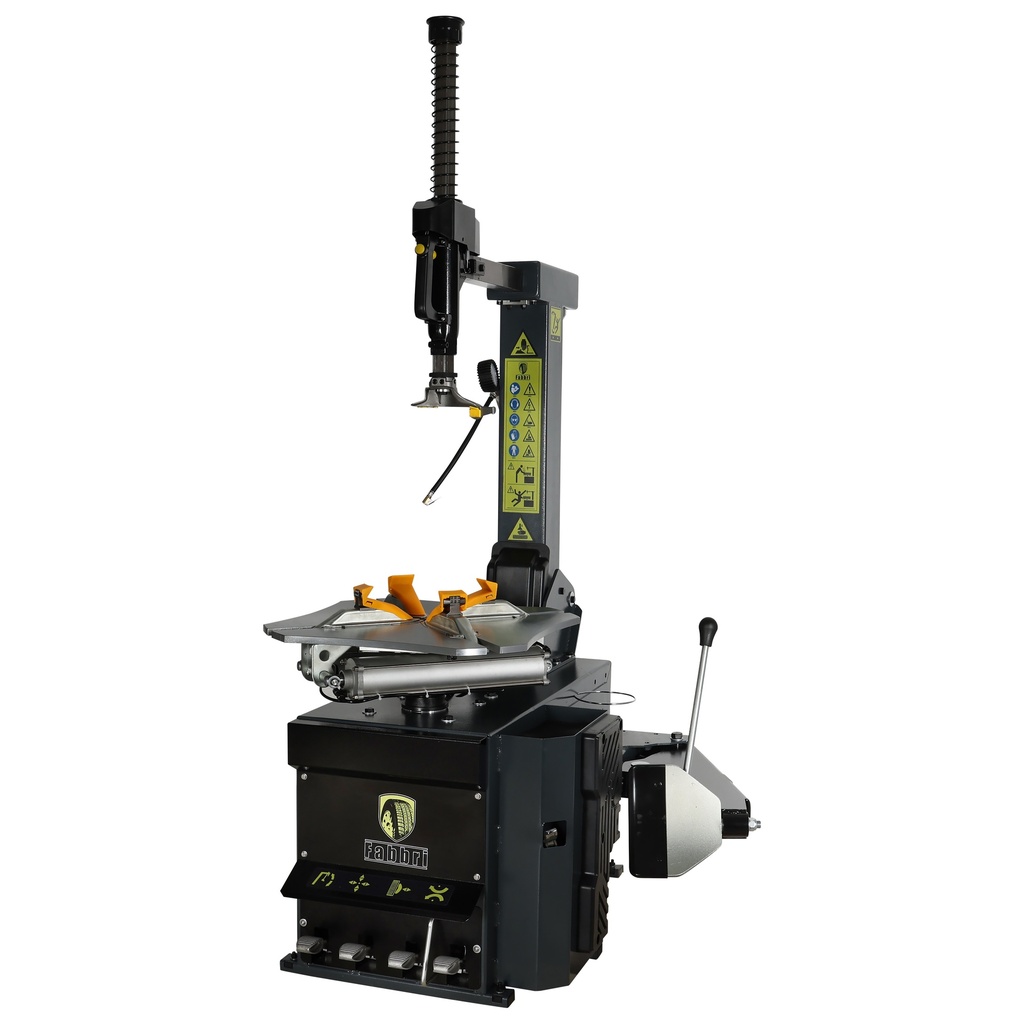

Reifenmontagemaschine / Reifen Montagegerät
Full-automatic tyre changer equipped with stabile tilting post for intensif use. This tyre changer is provided with reinforced frame this has a double function for trouble free dis-mounting of low profile tyres.
Technical specs:
- motor power = 1.1Kw / 1.5Kw
- power = 230V
- bead-breaker force = 2500kg
- operating pressure = 8-10 bar
- rim clamping from outside = 10''- 21''
- rim clamping from inside = 12''- 24''
- max wheel diameter = 41'' (1040)mm
- wheel width = 14''- (355)mm
- type = ZH650
standart provided accessories :
beading lifting tool, air purifier, accessoires set for alloyrims, gun inflator, locking wedge protector, connector
Specifications
| Felgendurchmesserbereich | 10" - 24" |
| Breite des Reifens max. | 14" (355 mm) |
| Raddurchmesser max. | 41" (1040 mm) |
| Spannbereich außen | 10" - 21" (254 - 533 mm) |
| Spannbereich innen | 12" - 24" (305 - 610 mm) |
| Arbeitsluftdruck | 8 - 10 Bar |
| Stromversorgung | 230V |
| Frequenz | 50 Hz |
| Motorleistung | 1.1 kW |
| Druckkraft des Wulstlösers | 2500 kg |
| Rotationsgeschwindigkeit | 6 - 8 rpm |
| Durchmesser der Montagekopf-Achse | 30 mm |
| Geräuschpegel | 70 dB |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 960 mm |
| Produkt Breite | 1.050 mm |
| Produkt Höhe | 1.825 mm |
| Produktgewicht | 221,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 750 mm |
| Breite des Pakets | 970 mm |
| Paket Höhe | 910 mm |
| Gewicht des Pakets | 241,00 Kg |
| Pakettyp: | |
| 1 Stück |
