Cascos
Cascos lifts are of 100% European production and are market leaders. The lifts are among the safest, most resistant, versatile and most reliable lifts on the market. This is because they use the highest quality materials of European origin with high quality standards. Cacos does not cut costs for materials, so that absolute top quality can be guaranteed.
At Cascos lifts, three key words are central, namely:
Reliability:
The robust construction of the lifts ensure high resistance to traction and dimensional stability. The high quality of the components such as the steel bearings, spindle and safety nuts ensure a considerably longer service life for the lifts. Maintenance costs are low due to these durable parts.
Functionality:
100% symmetrical: The car can be placed in any direction. Maximum load is possible at every opening angle and at every point of the extendable arms. This versatility is an enormous added value.
Thanks to the stable and narrow lifting columns, the installation of a Cascos lift requires minimal space, while the space between the columns remains large. These dimensions are between 2.70 and 3 meters.
Safety:
The robust columns, the steel bearings, but especially the safety nuts, ensure very high safety. The safety nut is so strong that it offers protection for bridges with a load capacity of up to 5500 kg.
Furthermore, the Cascos pole lifts have a number of very thoughtful features:

  • SlenderTec columns: Very robust, 10 to 23 mm thick.
  • Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.
  • Large spindle diameter: 45 mm, the largest spindle on the market. This ensures less friction and therefore less wear on the working nut. Less lubrication is also required.
  • Steel bearings: Less wear compared to nylon systems because they last longer. They also offer support to the columns.

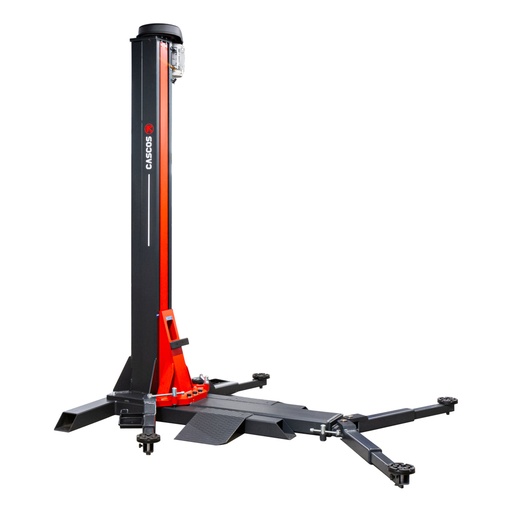

Ein Säulen Hebebuhne 2500kg Cascos [13167] Ein Säulen Hebebuhne 2500kg Cascos
mm mm mm Kg

Ein Pole Brücke / Spindelbrücke / Autobrücke

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs. Due to the complete symmetry, the vehicle can be placed in any direction. This in combination with the extendable arms ensures that maximum load is possible in every position.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

  • SlenderTec solid columns: Very robust, 10 to 23mm thick.

  • Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

  • Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

  • Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

  • Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

This professional single post lift has a particularly strong and solid column and a solid base. This makes the lift suitable for all types of mechanical, body, paint and maintenance jobs. Due to its compact design, the single post lift is ideal for small garages and workshops with maximum versatility.

The lift has the following features:

  • Single motor: 3-phase, 400V

  • Electromagnetic operation

  • Stable, sturdy base

  • Symmetrical arms: 4 arms that extend 2 time

  • Rubber protectors for opening doors

  • Protection of the spindle that prevends the operator from getting durty by touching the column

Specifications:

  • capacity = 2500kg

  • voltage = 400V / 3-fase

  • motor power = 3kW

  • minimum height = 125mm

  • maximum height = 1990mm

  • lifting time = 45 seconds

  • distance between the columns = 2640mm

  • height of the columns = 2435mm

  • range of front double arms = 582 - 785mm

  • range of rear double arms = 700 - 980mm

  • total weight = 600kg

Hebebühnen / 1 Säulen Hebebühnen Cascos 13167 8720028088386
€ 4.658,50 Inklusive MwSt https://schema.org/SoldOut
€ 4.658,50 4658.5 EUR

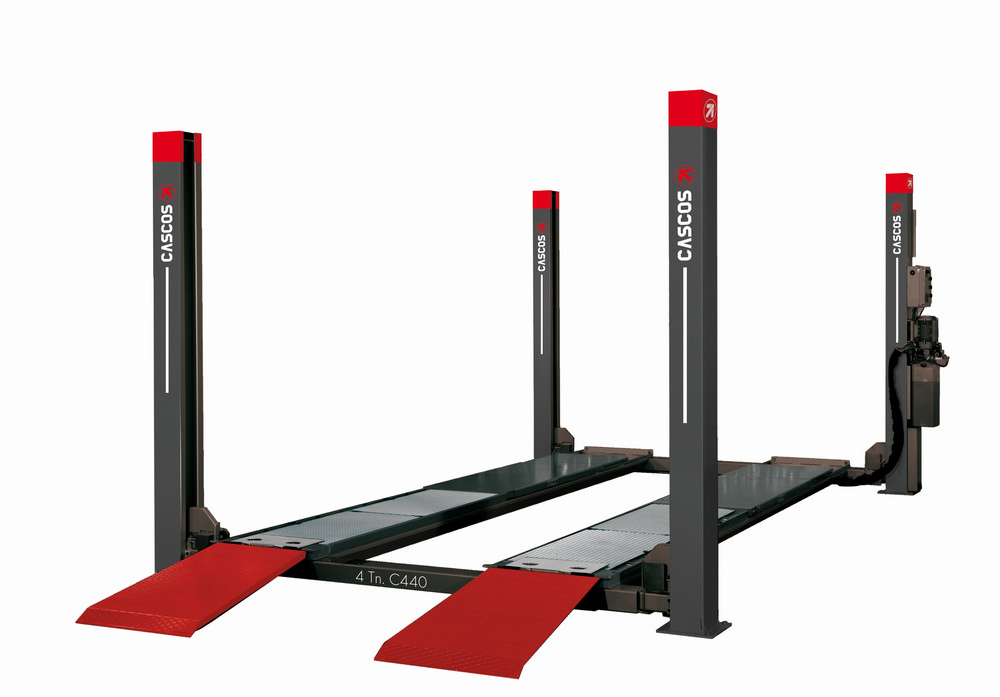

Vier Säulen Hebebühne 4000kg 4,8m Achsvermessungbühne 3m Antriebsbreite Cascos [13380] Vier Säulen Hebebühne 4000kg 4,8m Achsvermessungbühne 3m Antriebsbreite Cascos
mm mm mm Kg

Viersäulenlift / Servicelift / Autolift / Vier Stempelhebebühne

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
With a very low minimum ramp height and a maximum lifting height of 2000mm, these lifts are very versatile and suitable for cars, buses and 4x4 vehicles.
The lifts are equipped with a safety indicator and have both a mechanical and a pneumatic protection.

Furthermore, the Cascos four pole lifts have a number of very thoughtful features:

  • Double T-profiles: Runways reinforced with double T-welded steel beams. These are virtually impossible to deform, withstand the load better over time and ensure that the runway is perfectly flat, ideal for very precise work.

  • Extra safety: Cascos gives priority to safety above all and has developed a double safety system for all columns, namely:
    Mechanical safety: by means of a safety bar.
    Pneumatic safety: by means of safety ladders.

  • Leveling alarm: Cascos lifts have an indicator light that warns if the runways are poorly leveled and ensures that the cylinder works in perfect conditions, which ensures a longer service life.

  • Hydraulic cylinders: One by one produced and tested in the factory.

  • Convenience and efficiency:
    Manual lowering valves to lower the lift in event of a power failure or malfunction.
    Adjustable lifting timer that can speed up the lowering, depending on the load volume.

  • Thermal protection: Electric motors have thermal protection against overheating.

  • For Cascos four post lifts, less installation space is required and a larger working surface is available, which makes the lift unique in its kind.

This alignment model four column lift has a capacity of 4 tons and has the following features:

  • Long alignment runways of 4,8 meters long and 630mm wide.

  • A drive width / distance between the columns of no less than 3 meters. This makes the lift very suitable for alignment and ensures an ideal working space at the vehicle.

  • Wide runways of 630mm, suitable for working with wider tires.

  • With a minimum ramp height of only 180mm, this lift is the lowest alignment lift on the market. Due to the low ramp height the ramps are shorter, making the lift suitable for low vehicles, such as sports cars.

Specifications:

  • capacity = 4000kg

  • voltage = 230-400V / 3 phase

  • motor power = 3kW

  • minimum drive height = 180mm

  • maximum lifting height = 2000mm

  • length of the runways = 4800mm

  • width of the runways = 630mm

  • distance between the runways = 740 - 990mm

  • drive width / distance between the columns = 3000mm

  • height of the columns = 2410mm

  • lifting time = 40 seconds

  • electro-hydraulic

Note: The price for this lift does not include the delivery and placement of the lift. Extended guarantees only apply in combination with a Spoods installation / mainenance contract. For more information, contact one of our employees.
The presence of a forklift truck is necessary to unload the lift!

Hebebühnen / Vier Säulen Hebebühnen Cascos 13380 8720028091065
€ 8.470,00 Inklusive MwSt https://schema.org/InStock
€ 8.470,00 8470.0 EUR
Vier Säulen Hebebühne 4000kg 4,8m flat Cascos [13381] Vier Säulen Hebebühne 4000kg 4,8m flat Cascos
mm mm mm Kg

Viersäulenlift / Servicelift / Autolift / Vier Stempel Hebebühne

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.

At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
With a very low minimum ramp height and a maximum lifting height of 2000mm, these lifts are very versatile and suitable for cars, buses and 4x4 vehicles.
The lifts are equipped with a safety indicator and have both a mechanical and a pneumatic protection.

Furthermore, the Cascos four pole lifts have a number of very thoughtful features:

  • Double T-profiles: Runways reinforced with double T-welded steel beams. These are virtually impossible to deform, withstand the load better over time and ensure that the runway is perfectly flat, ideal for very precise work.

  • Extra safety: Cascos gives priority to safety above all and has developed a double safety system for all columns, namely:
    Mechanical safety: by means of a safety bar.
    Pneumatic safety: by means of safety ladders.

  • Leveling alarm: Cascos lifts have an indicator light that warns if the runways are poorly leveled and ensures that the cylinder works in perfect conditions, which ensures a longer service life.

  • Hydraulic cylinders: One by one produced and tested in the factory.

  • Convenience and efficiency:
    Manual lowering valves to lower the lift in event of a power failure or malfunction.
    Adjustable lifting timer that can speed up the lowering, depending on the load volume.

  • Thermal protection: Electric motors have thermal protection against overheating.

  • For Cascos four post lifts, less installation space is required and a larger working surface is available, which makes the lift unique in its kind.

This model four column lift has a capacity of 4 tons and has the following features:

  • Flat long runways of 4,8 meters long and 630mm wide.

  • Due to a drive width of 2780mm, the lift is suitable for passenger cars, small vans and 4x4 vehicles.

  • Wide runways of 630mm, suitable for working with wider tires.

  • With a minimum ramp height of only 130mm, this lift is the lowest on the market. Due to the low ramp height the ramps are shorter, making the lift suitable for low vehicles, such as sports cars.

Specifications:

  • capacity = 4000kg

  • voltage = 230-400V / 3 phase

  • motor power = 3kW

  • minimum drive height = 130mm

  • maximum lifting height = 2000mm

  • length of the runways = 4800mm

  • width of the runways = 630mm

  • distance between the runways = 740 - 990mm

  • drive width / distance between the columns = 3000mm

  • height of the columns = 2410mm

  • lifting time = 40 seconds

  • electro-hydraulic

Note: The price for this lift does not include the delivery and placement of the lift. Extended guarantees only apply in combination with a Spoods installation / mainenance contract. For more information, contact one of our employees.
The presence of a forklift truck is necessary to unload the lift!

Hebebühnen / Vier Säulen Hebebühnen Cascos 13381 8720028091041
€ 7.865,00 Inklusive MwSt https://schema.org/InStock
€ 7.865,00 7865.0 EUR

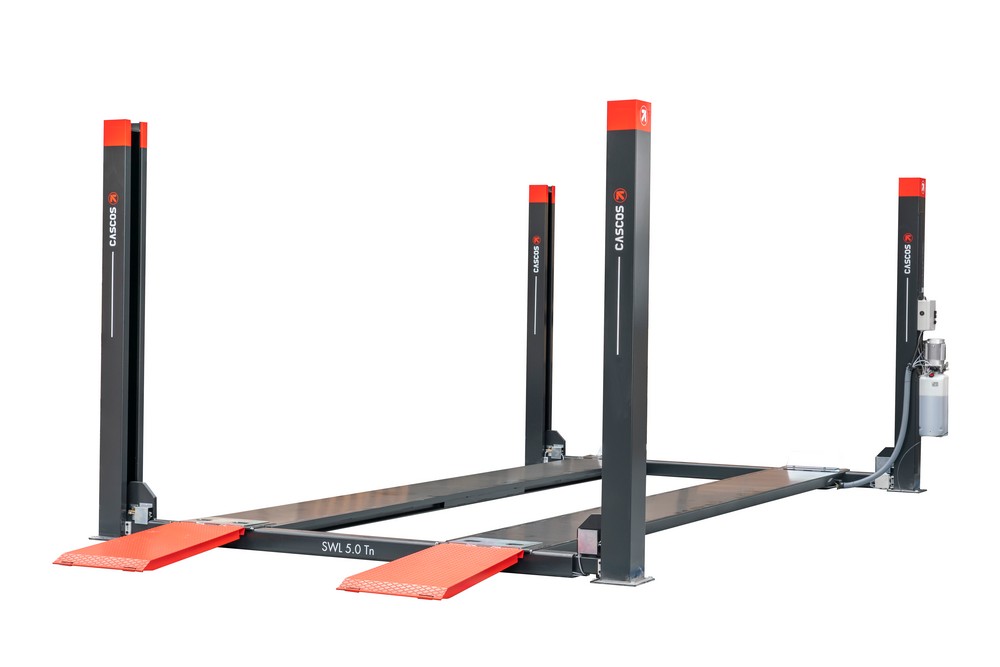

Vier Säulen Hebebühne 5000kg 5,7m flat 3m Antriebsbreite Cascos [13376] Vier Säulen Hebebühne 5000kg 5,7m flat 3m Antriebsbreite Cascos
mm mm mm Kg

Viersäulenlift / Servicelift / Autolift / Vier Stempelhebebühne

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
With a very low minimum ramp height and a maximum lifting height of 2000mm, these lifts are very versatile and suitable for cars, buses and 4x4 vehicles.
The lifts are equipped with a safety indicator and have both a mechanical and a pneumatic protection.

Furthermore, the Cascos four pole lifts have a number of very thoughtful features:

  • Double T-profiles: Runways reinforced with double T-welded steel beams. These are virtually impossible to deform, withstand the load better over time and ensure that the runway is perfectly flat, ideal for very precise work.

  • Extra safety: Cascos gives priority to safety above all and has developed a double safety system for all columns, namely:
    Mechanical safety: by means of a safety bar.
    Pneumatic safety: by means of safety ladders.

  • Leveling alarm: Cascos lifts have an indicator light that warns if the runways are poorly leveled and ensures that the cylinder works in perfect conditions, which ensures a longer service life.

  • Hydraulic cylinders: One by one produced and tested in the factory.

  • Convenience and efficiency:
    Manual lowering valves to lower the lift in event of a power failure or malfunction.
    Adjustable lifting timer that can speed up the lowering, depending on the load volume.

  • Thermal protection: Electric motors have thermal protection against overheating.

  • For Cascos four post lifts, less installation space is required and a larger working surface is available, which makes the lift unique in its kind.

This model four column lift has a capacity of 4 tons and has the following features:

  • Flat extra long runways of 5,7 meters long and 530mm wide.

  • A drive width / distance between the columns of no less than 3 meters. This in combination with the small runways of 530mm ensure an ideal working space at the vehicle.

  • With a minimum ramp height of only 130mm, this lift is the lowest on the market. Due to the low ramp height the ramps are shorter, making the lift suitable for low vehicles, such as sports cars.

Specifications:

  • capacity = 5000kg

  • voltage = 230-400V / 3 phase

  • motor power = 3kW

  • minimum drive height = 130mm

  • maximum lifting height = 2000mm

  • length of the runways = 5700mm

  • width of the runways = 530mm

  • distance between the runways = 684 - 1184mm

  • drive width / distance between the columns = 3000mm

  • height of the columns = 2410mm

  • lifting time = 40 seconds

  • electro-hydraulic

Note: The price for this lift does not include the delivery and placement of the lift. Extended guarantees only apply in combination with a Spoods installation / mainenance contract. For more information, contact one of our employees.
The presence of a forklift truck is necessary to unload the lift!

Hebebühnen / Vier Säulen Hebebühnen Cascos 13376 8720028091058
€ 9.075,00 Inklusive MwSt https://schema.org/SoldOut
€ 9.075,00 9075.0 EUR

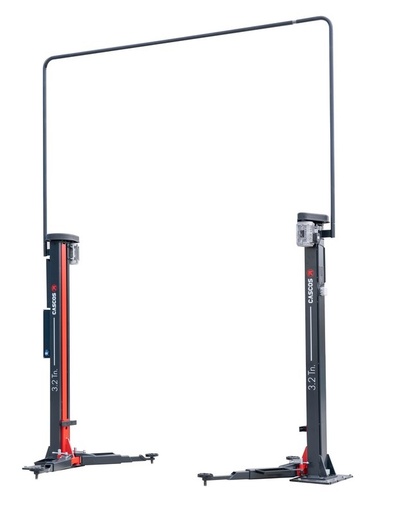

Zwei Säulen Hebebühne 3200kg bodenlos Comfort Cascos [13120SC] Zwei Säulen Hebebühne 3200kg bodenlos Comfort Cascos
mm mm mm Kg

Zwei Pole Brücke / Spindelbrücke / Autobrücke

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

  • SlenderTec solid columns: Very robust, 10 to 23mm thick.

  • Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

  • Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

  • Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

  • Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

This Comfort model without base has a capacity of 3,2 tons and has the following features:

  • ILC-system (Intelligent Lift Control): An innovative control system that controls the operation of the lift and can display the following on the LCD screen: safety warnings, useful information about the operation of the lift, operational reports, maintenance reports and troubleshooting.

  • Electrical synchronization with electronic board and detectors: The electronic board is programmable and protected against voltage changes, and short circuits. In addition, this system enables quick and easy identification of the operating status of the lift and ables ILC system operating.

  • Independent motors in each column.

  • Level is controlled through 4 inductive sensors that ensure absolute synchronisation of the lift, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.

  • It is possible to connect both the motor through inground installation and work without arch for the same price. Ask one of our employees for the possibilities.

  • Floorless: provides optimum working space between the columns.

  • Both symmetrical and asymmetrical arms: 2 arms that extend 2 times and 2 arms that extend 3 times.

  • Double screw spindles for extra high picking.

Specifications:

  • capacity = 3200kg

  • voltage = 400V / 3-fase

  • motor power = 2,2 2,2kW

  • minimum height = 100mm

  • maximum height = 1960mm

  • lifting time = 45 seconds

  • distance between the columns = 2700mm

  • height of the columns = 2435mm

  • total height = 4250mm

  • range of double arms = 710 - 1050mm

  • range of triple arms = 597 - 1122mm

  • total weight = 600kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Hebebühnen / Zwei Säulen Hebebühnen Cascos 13120SC 8720028088379
€ 5.445,00 Inklusive MwSt https://schema.org/InStock
€ 5.445,00 5445.0 EUR

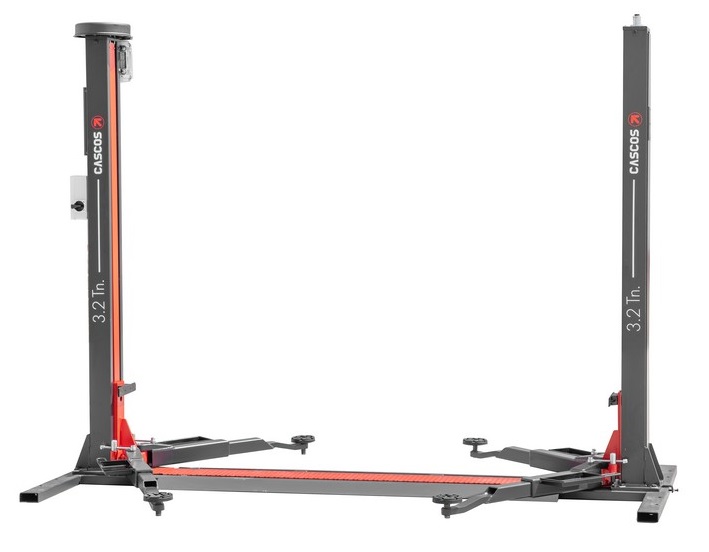

Zwei Säulen Hebebühne 3200kg Comfort Cascos [13120C] Zwei Säulen Hebebühne 3200kg Comfort Cascos
mm mm mm Kg

Zwei Pole Brücke / Spindelbrücke / Autobrücke

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

  • SlenderTec solid columns: Very robust, 10 to 23mm thick.

  • Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

  • Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

  • Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

  • Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

This Comfort model lift with base has a capacity of 3,2 tons and has the following features:

  • Single motor: 3-phase, 400V

  • Mechanical synchronization.

  • Stable, sturdy floor plate.

  • Both symmetrical and asymmetrical arms: 2 arms that extend 2 times and 2 arms that extend 3 times.

  • Double screw spindles for extra high picking.

Specifications:

  • capacity = 3200kg

  • voltage = 400V / 3-fase

  • motor power = 3,7kW

  • minimum height = 100mm

  • maximum height = 1960mm

  • lifting time = 45 seconds

  • distance between the columns = 2700mm

  • height of the columns = 2435mm

  • range of double arms = 710 - 1050mm

  • range of triple arms = 597 - 1122mm

  • total weight = 600kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Hebebühnen / Zwei Säulen Hebebühnen Cascos 13120C 8720028088362
€ 5.142,50 Inklusive MwSt https://schema.org/InStock
€ 5.142,50 5142.5 EUR

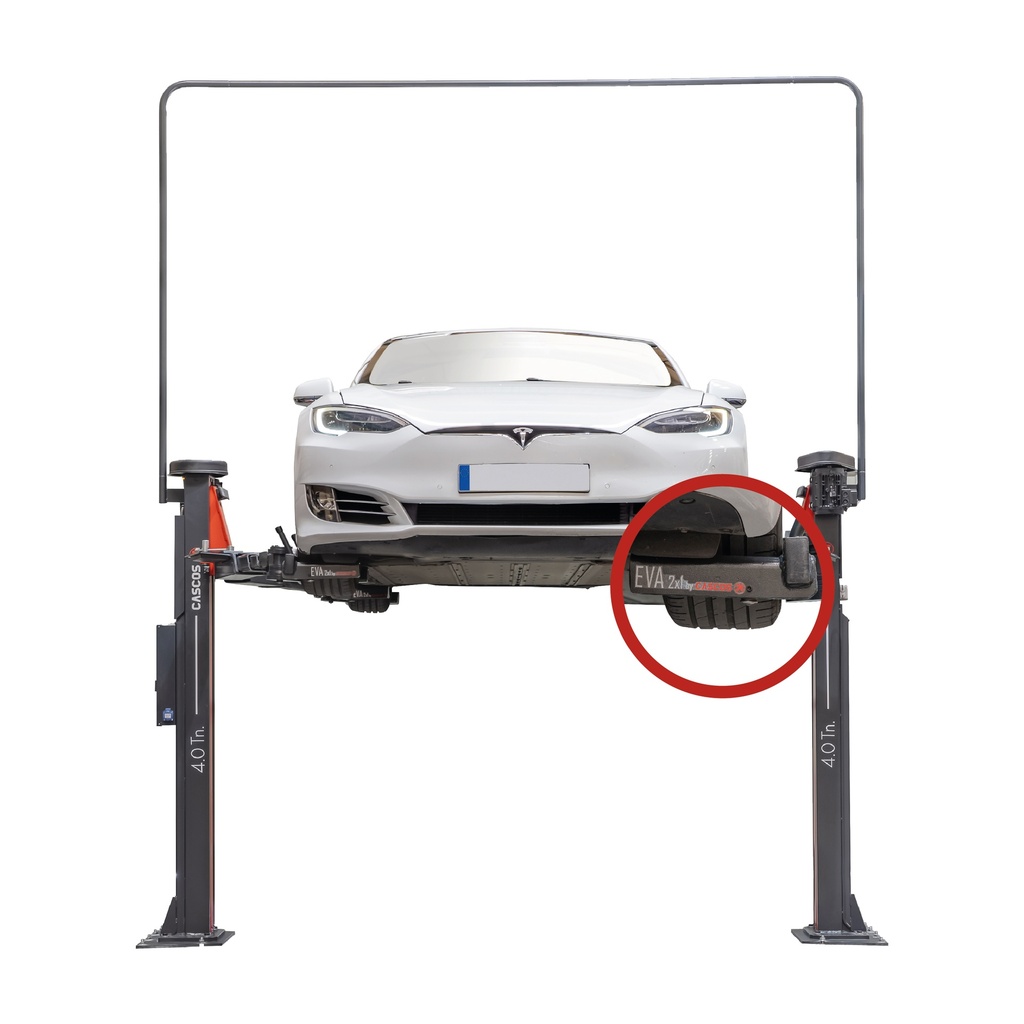

Zwei Säulen Hebebühne 4000kg bodenlos 2 in 1 EVA Cascos [13194S4EVA] Zwei Säulen Hebebühne 4000kg bodenlos 2 in 1 EVA Cascos
mm mm mm Kg

Zwei Pole Brücke / Spindelbrücke / Autobrücke / EVA / Elektrofahrzeug Adapter

Zweisäulenspindelhubbrücke EVA (Electric Vehicle Adapter) inkl. Radadapter & Gummihebeplatte. Diese zweisäulige 2 in 1-Hubbrücke mit Spindel hat einen sehr großen Aufnahmebereich und kann Elektro-, Hybrid- und Kraftstofffahrzeuge heben. Dank der austauschbaren Hebearme kann das EVA-System verwendet werden, das über die Reifen hebt, sodass keine zusätzlichen Adapter zum Heben von Elektrofahrzeugen benötigt werden.

Technische Daten:

  • Kapazität = 4000kg

  • Spannung = 400V

  • Motorleistung = 3,3 kW

  • min.Ansaughöhe = 100mm

  • max.Hubhöhe = 1970mm

  • Abstand zwischen den Säulen = 2700mm

  • Höhe der Säulen = 2435mm

  • Gesamthöhe = 4250mm

  • Gewicht = 750kg

Hinweis: Der Preis für diese Hebebühne beinhaltet nicht die Lieferung und Aufstellung der Hebebühne. Für weitere Informationen zu Installations- und Serviceverträgen können Sie sich an einen unserer Mitarbeiter wenden.
Hebebühnen / Zwei Säulen Hebebühnen Cascos 13194S4EVA 8720028100552
€ 9.075,00 Inklusive MwSt https://schema.org/SoldOut
€ 9.075,00 9075.0 EUR

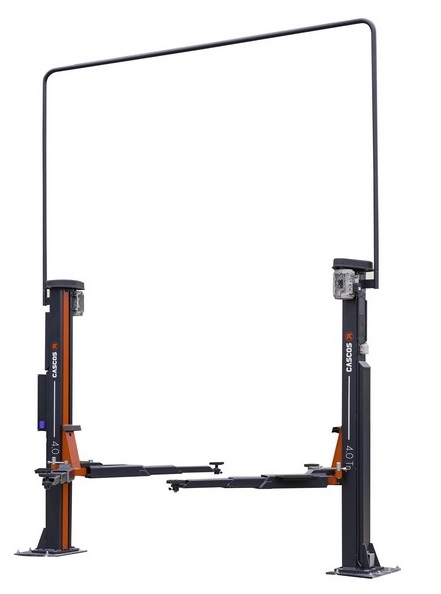

Zwei Säulen Hebebühne 4000kg bodenlos Confort Cascos [13194S] Zwei Säulen Hebebühne 4000kg bodenlos Confort Cascos
mm mm mm Kg

Zwei Pole Brücke / Spindelbrücke / Autobrücke

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

  • SlenderTec solid columns: Very robust, 10 to 23mm thick.

  • Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

  • Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

  • Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

  • Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

Thanks to the hight capacity of 4 tons, the design without base and the large reach of the lifting arms, this Cascos lift is indispensible in every professional garage or workshop. The lift is very versatile and suitable for almost every vehicle.

This lift has the following thoughtful features:

  • ILC-system (Intelligent Lift Control): An innovative control system that controls the operation of the lift and can display the following on the LCD screen: safety warnings, useful information about the operation of the lift, operational reports, maintenance reports and troubleshooting.

  • Electrical synchronization with electronic board and detectors: The electronic board is programmable and protected against voltage changes, and short circuits. In addition, this system enables quick and easy identification of the operating status of the lift and ables ILC system operating.

  • Independent motors in each column.

  • Level is controlled through 4 inductive sensors that ensure absolute synchronisation of the lift, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.

  • It is possible to connect both the motor through inground installation and work without arch for the same price. Ask one of our employees for the possibilities.

  • Floorless: provides optimum working space between the columns.

  • Both symmetrical and asymmetrical arms: 4 arms that extend 3 times.

  • Double screw spindles for extra high picking.

Specifications:

  • capacity = 4000kg

  • voltage = 400V / 3-fase

  • motor power = 3 + 3kW

  • minimum height = 100mm

  • maximum height = 1970mm

  • lifting time = 45 seconds

  • distance between the columns = 2700mm

  • height of the columns = 2435mm

  • total height = 4250mm

  • range of triple arms = 668 - 1341mm

  • total weight = 750kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Hebebühnen / Zwei Säulen Hebebühnen Cascos 13194S 8720028088393
€ 7.865,00 Inklusive MwSt https://schema.org/InStock
€ 7.865,00 7865.0 EUR
