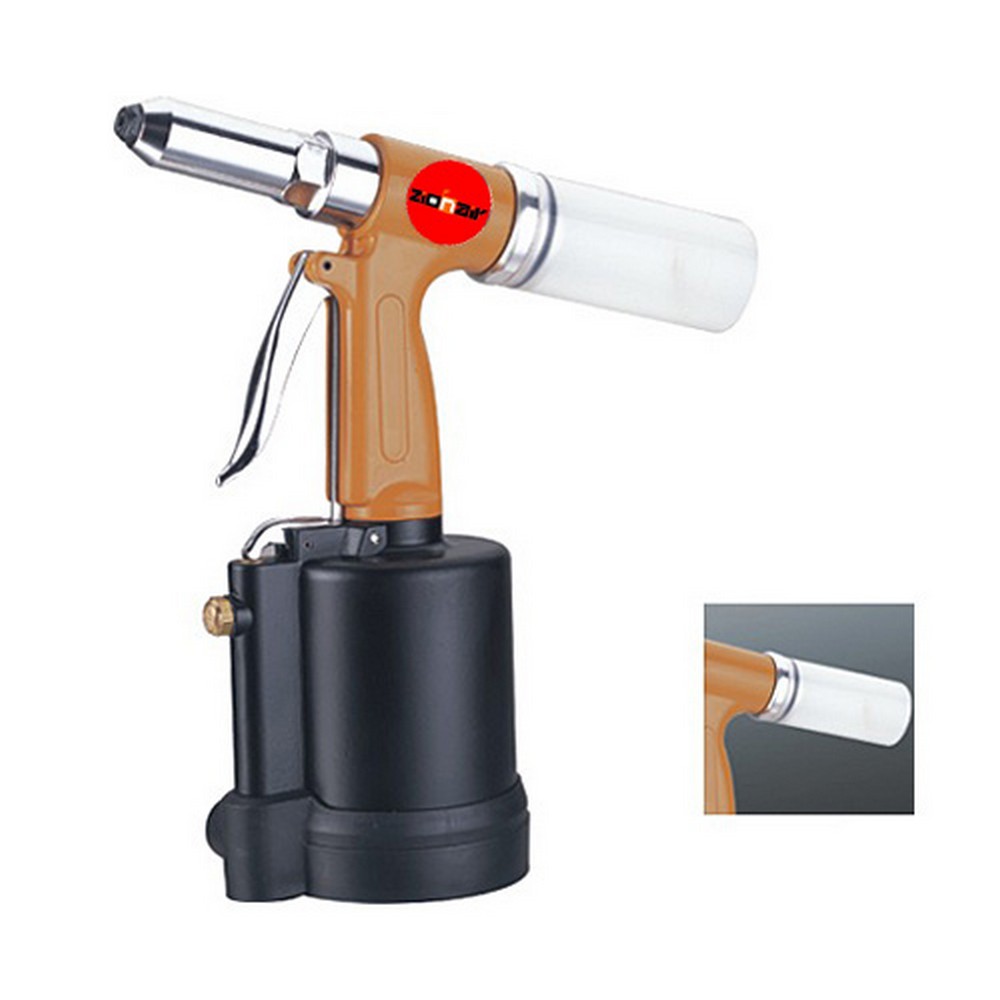

Air riveter
Hydraulic piston for increased power.
Ultra high speed, ideal for assembly line.
Sets rivets up to 1/4" (6mm) steel and 4,8mm stainless steel.
Easy operation in any position with one hand.
- capacity = 3.2, 4.0, 4.8, 6,0mm
- stroke length = 14mm
- air inlet = 1/4"
- air hose = 3/8"
- avg. air consumption = 0,03 SCFM / 0,85 L/min
- working pressure = 6,3 bar
- length x height = 225 x 93mm
- weight = 1,66kgs
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 165 mm |
| Produkt Breite | 90 mm |
| Produkt Höhe | 275 mm |
| Produktgewicht | 1,62 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 100 mm |
| Breite des Pakets | 170 mm |
| Paket Höhe | 285 mm |
| Gewicht des Pakets | 1,92 Kg |
