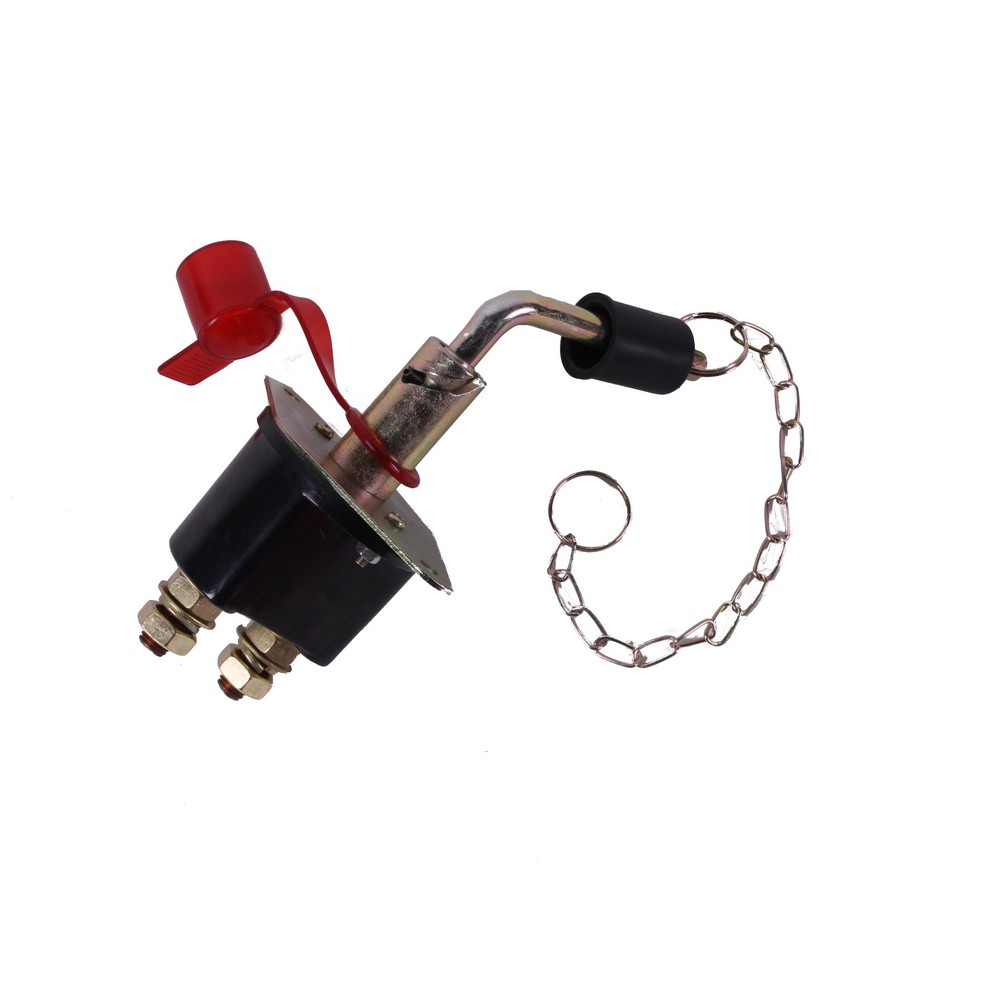

Battery isolator kill switch
This Battery kill switch allows you to instanly shut of the power of youre battery. The switch is equiped with an removable key, ideal against current leakage and unauthorized use.
Specifications:
- voltage = 12v/24v
- current = 500amp at 12v and 250amp at 24v (continuous)
- max current = 1000amp (intermittent)
- build in size = 63mm
- fixing holes dia = 6mm
- fixing holes centr = 100mm
- height above panel = 40mm (without key)
- height above panel = 100mm (with key)
- depth below panel = 80mm
Produkt Abmessungen:
| Length | 120 mm |
|---|---|
| Width | 65 mm |
| Height | 160 mm |
| Weight | 0,6 kg |
Abmessungen der Verpackung:
| Length | 110 mm |
|---|---|
| Width | 65 mm |
| Height | 95 mm |
| Weight | 0,80 kg |
