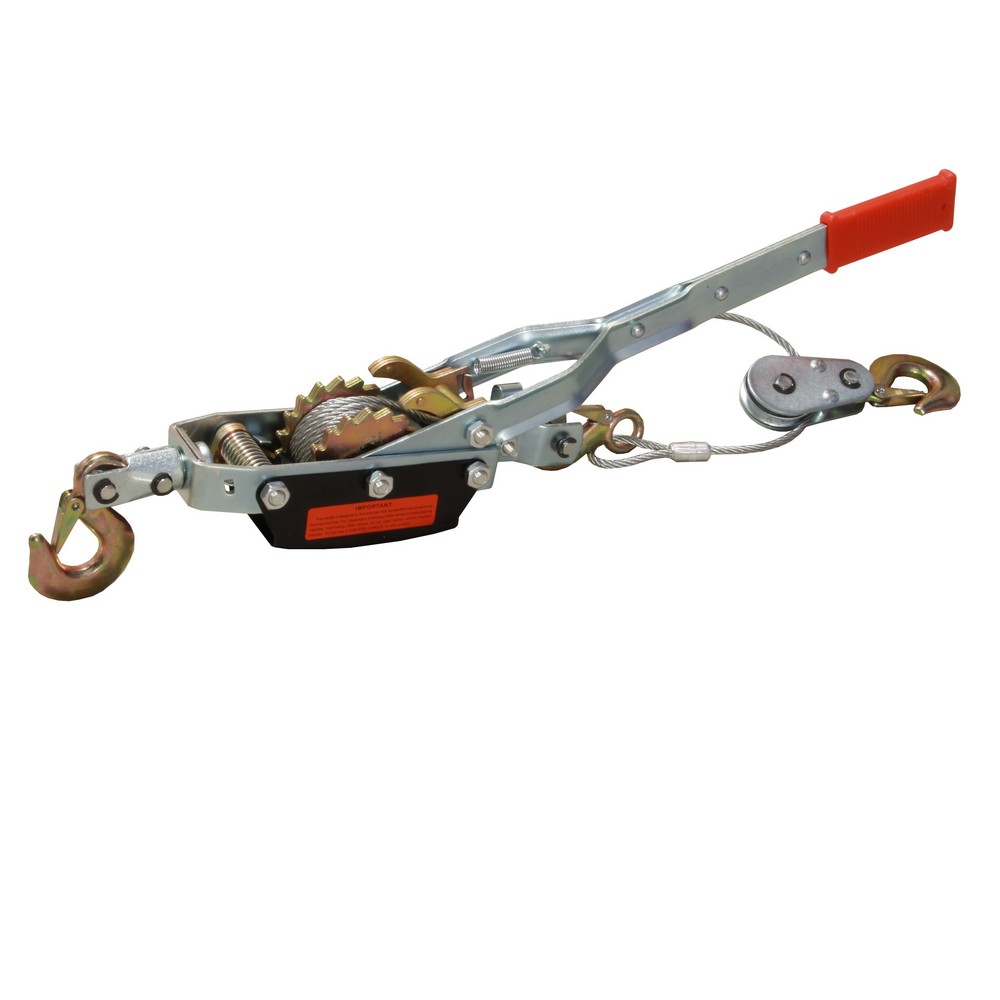

Seilzug mit Ratsche Multi-functional tool. Suitable for pulling loads and for example clamping of cables. Safety hooks for heave loads. One piece frame construction with H-D frame bolts. - pulling capacity double line = 4000kg - pulling capacity single line = 2000kg - cable diameter = 5,5mm - leverage = 15:1 - max. cable length = 130cm - total length = 185cm

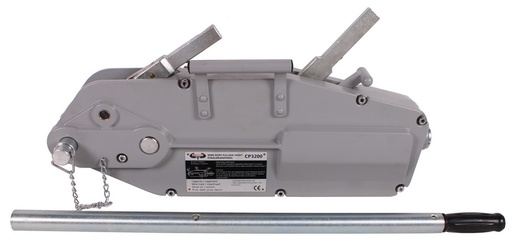

Zeilzug TORSO Wire rope hoists are portable, strong and can be used in any application. the design of the hoist allows for both vertical and horizontal use. To prevent overload the manual control handle is equiped with an safety break pin. The load capacaty of the device can be increased with an scheave block/snatch block. Specifications: - capacity = 3200kg - cable length = 20mtr - cable diameter = 16mm - stroke = 28mm - 1 lifting stroke - max. handforce = 44kg

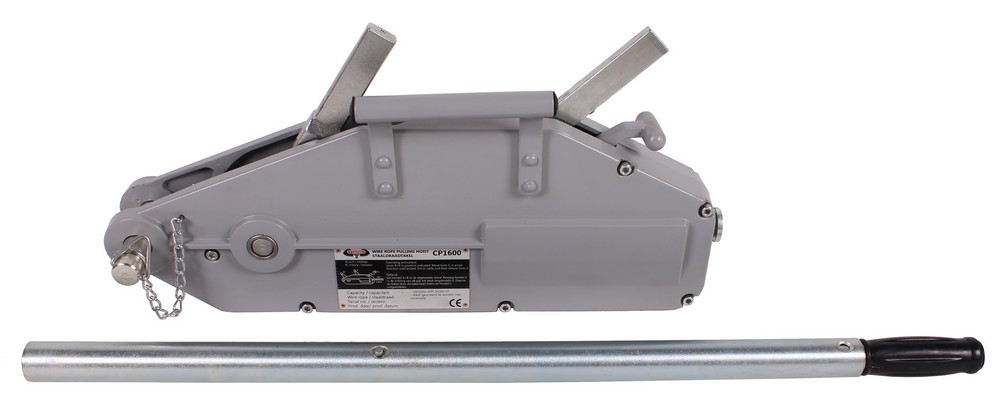

Zeilzug TORSO Wire rope hoists are portable, strong and can be used in any application. the design of the hoist allows for both vertical and horizontal use. To prevent overload the manual control handle is equiped with an safety break pin. The load capacaty of the device can be increased with an scheave block/snatch block. Specifications: - capacity = 1600kg - cable length = 20mtr - cable diameter = 11mm - stroke = 55mm - 1 lifting stroke - max. handforce = 41kg - weight puller = 11,9kg

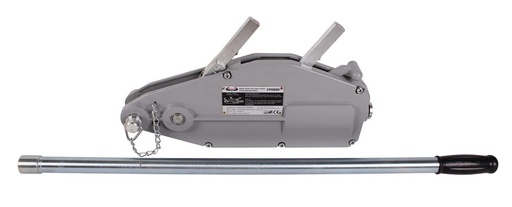

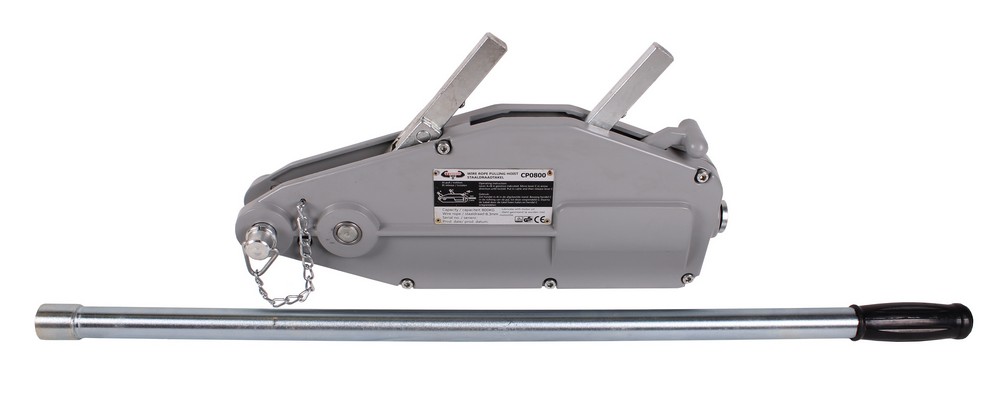

Zeilzug TORSO Wire rope hoists are portable, strong and can be used in any application. the design of the hoist allows for both vertical and horizontal use. To prevent overload the manual control handle is equiped with an safety break pin. The load capacaty of the device can be increased with an scheave block/snatch block. Specifications: - capacity = 800kg - cable length = 20mtr - cable diameter = 8.3mm - stroke = 52mm - 1 lifting stroke - max. handforce = 28kg - weight puller = 6,25kg
