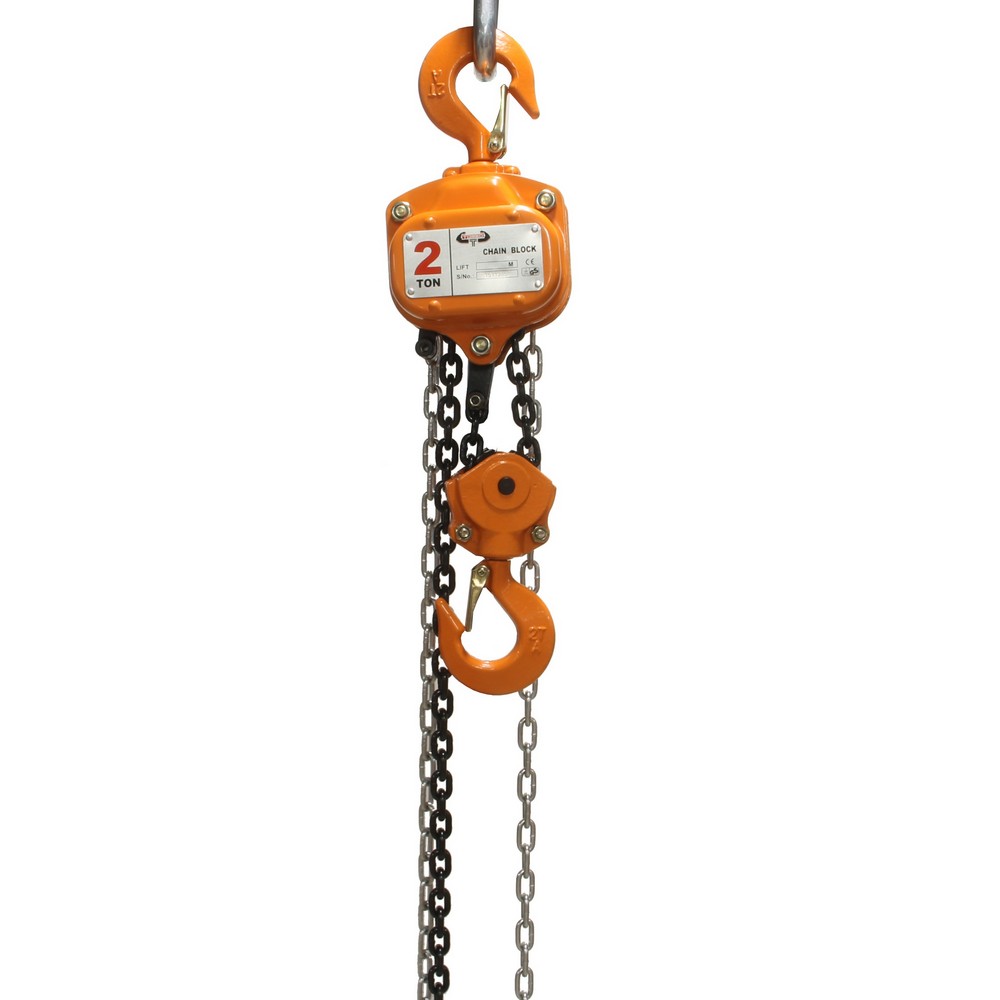

Chain block
These robust Torso chain hoists are ideal for your lifting operations. Using the light chain you can easily lift vertically. The chain hoists are supplied with a heavy load chain. Both hooks (below and above) are provided with a safety valve.
- capacity = 2ton
- lift = 3m
- test load = 3ton
- effort required to lift max load = 330N
- diameter of load chain = 6mm
- length silver operating chain = 5,5m
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 187 mm |
| Produkt Breite | 161 mm |
| Produkt Höhe | 430 mm |
| Produktgewicht | 15,9 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 270 mm |
| Breite des Pakets | 215 mm |
| Paket Höhe | 225 mm |
| Gewicht des Pakets | 16,50 Kg |
| Package Type: | |
| 60 Pcs |
