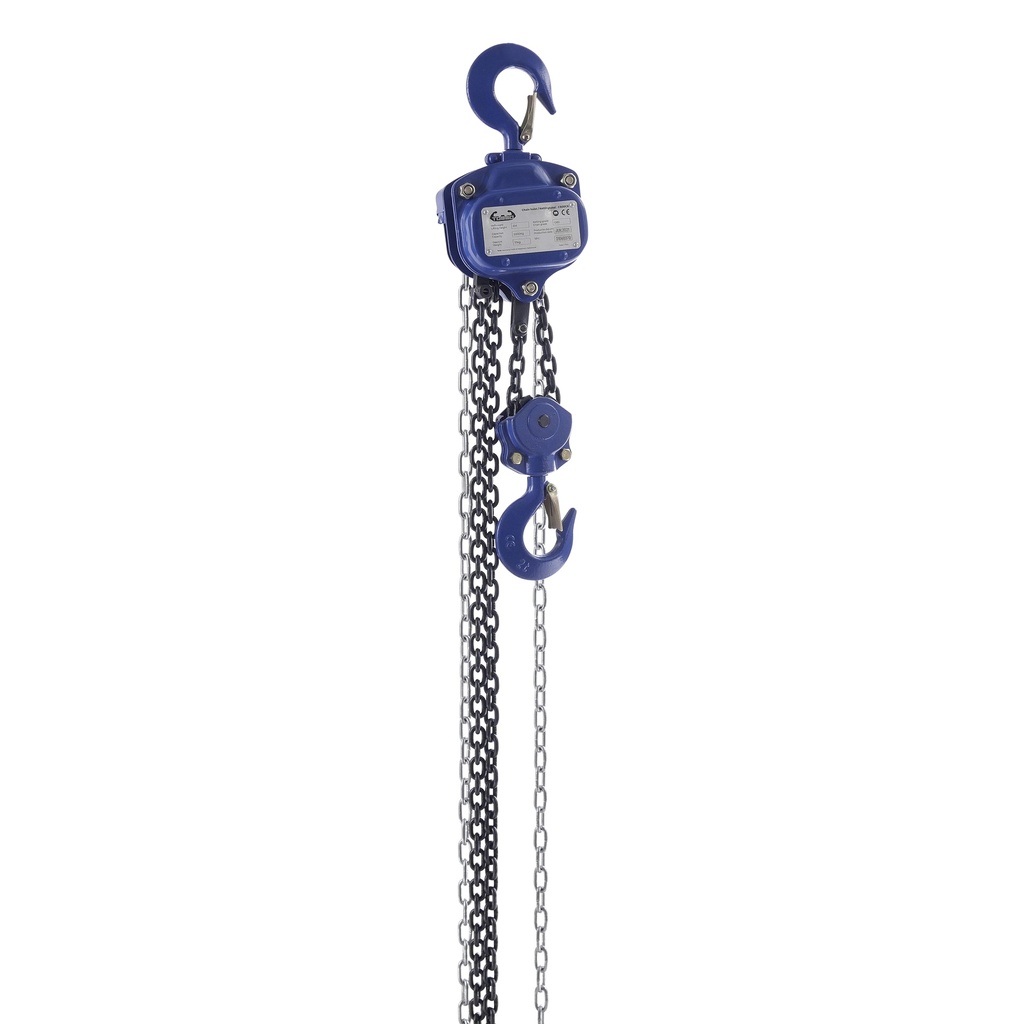

Chain hoist
These robust Torso chain hoists are ideal for lifting operations. Using the light chain its easy to lift vertically. The chain hoists are supplied with a heavy load chain and both hooks (below and above) are provided with a safety valve.
Technical specifications:
capacity = 2 ton
lifting height = 6m
max. distance between hooks = 6,35m
load chain = 6 x 30mm grade 80
load chain length = 12m
operating chain = 5 x 32mm
operating chain length = 2 x 6m
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 6.400 mm |
| Produkt Breite | 170 mm |
| Produkt Höhe | 120 mm |
| Produktgewicht | 22,9 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 260 mm |
| Breite des Pakets | 215 mm |
| Paket Höhe | 250 mm |
| Gewicht des Pakets | 23,54 Kg |
