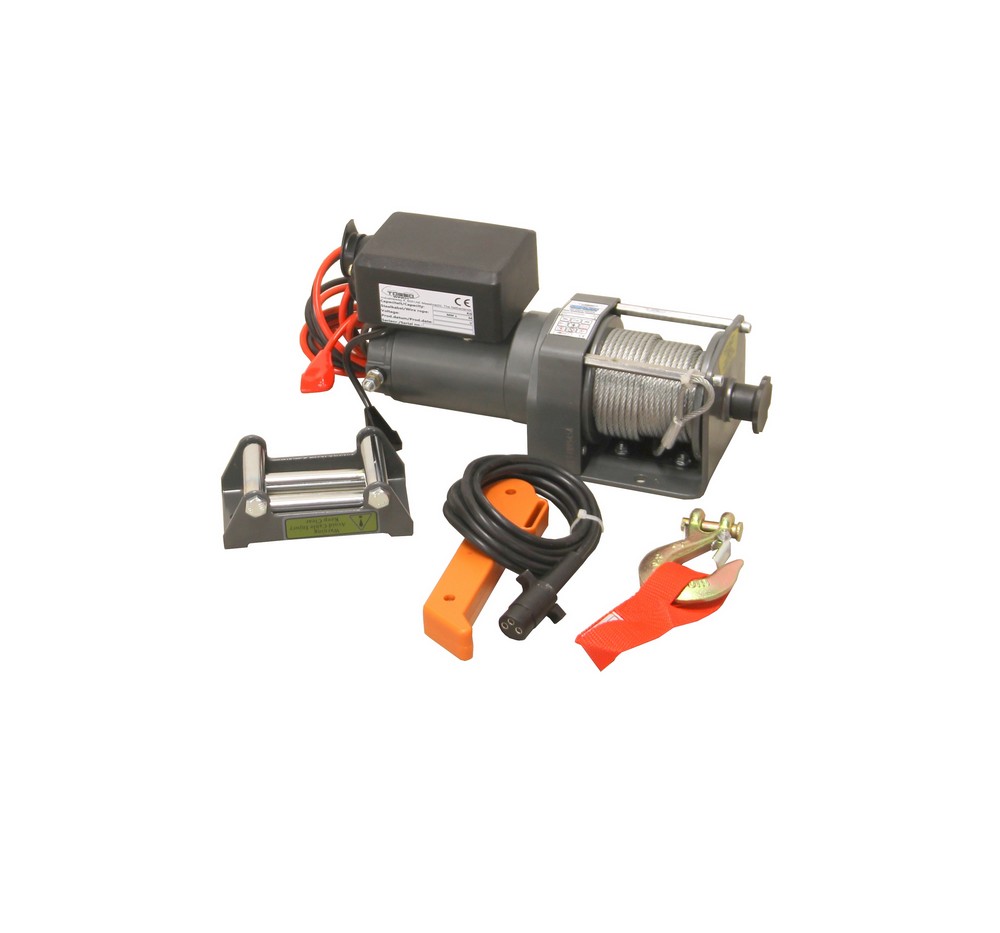

Motorwinde / Seilhebezug
Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
- mounting dimensions heart to heart = 125 x 75mm
Wireless remote optional.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specification:
- rated pull = 900Kg / 2000lbs
- reduction ratio = 153:1
- voltage = 24V
(not suitable to pull up cars, for this we advise a minimum of 8000lbs / 3600kg)
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 310 mm |
| Produkt Breite | 100 mm |
| Produkt Höhe | 150 mm |
| Produktgewicht | 10,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 390 mm |
| Breite des Pakets | 200 mm |
| Paket Höhe | 210 mm |
| Gewicht des Pakets | 12,00 Kg |
