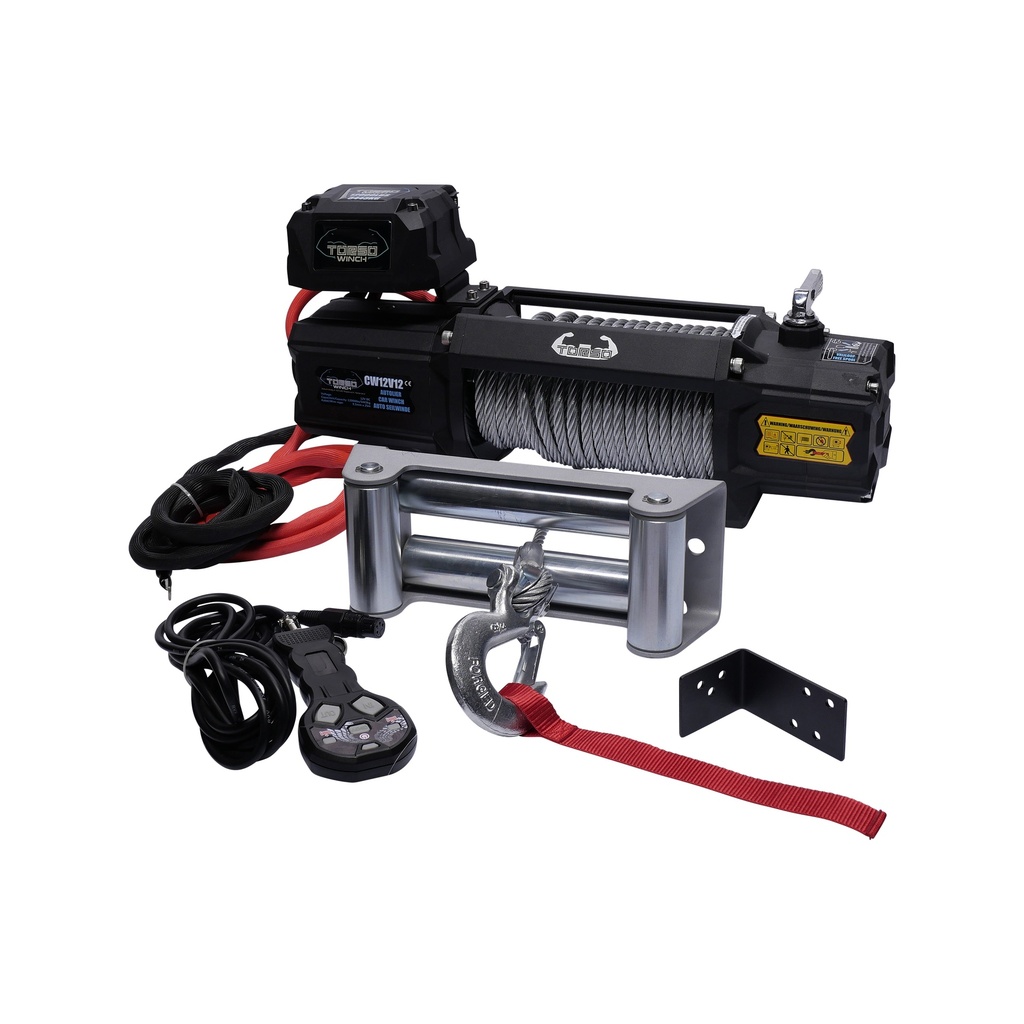

Elektro Seilwinde 12V 5443kg

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:

• 4-way fair load roller, for excellent cable mobility

• remote control: can be used with both cable and wireless

• length control cable = 3.8m

• range wireless control = 65m

• battery = L1028F, not rechargeable

• clevis pinned / latched hook

• 1.8m battery conection cable

• hand operated clutch for free spooling

• automatic brake in the event of a power failure

• 1.5 ton pulley block


Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:

• 12V single line

• rated pull = 5443kg (12000lbs)

• gear reduction ratio = 265:1

• Serie-wound motor = 12V 6HP

• drum size = 63 x 226mm

• cable length = 25m

• cable diameter = 9.5mm

• line pull = 0kg, 1814kg, 2722kg, 4536kg, 5443kg

• line speed = 6.8mpm, 3.8mpm, 3mpm, 2.1mpm, 1.7mpm

• amp draw = 80A, 170A, 210A, 310A, 360A

• layer of cable = 1, 2, 3, 4

• pull per layer = 5443kg, 4490kg, 3765kg, 3175kg

• cap per layer = 6m, 13m, 22m, 25m

• mounting dimensions heart to heart = 255 x 115mm
