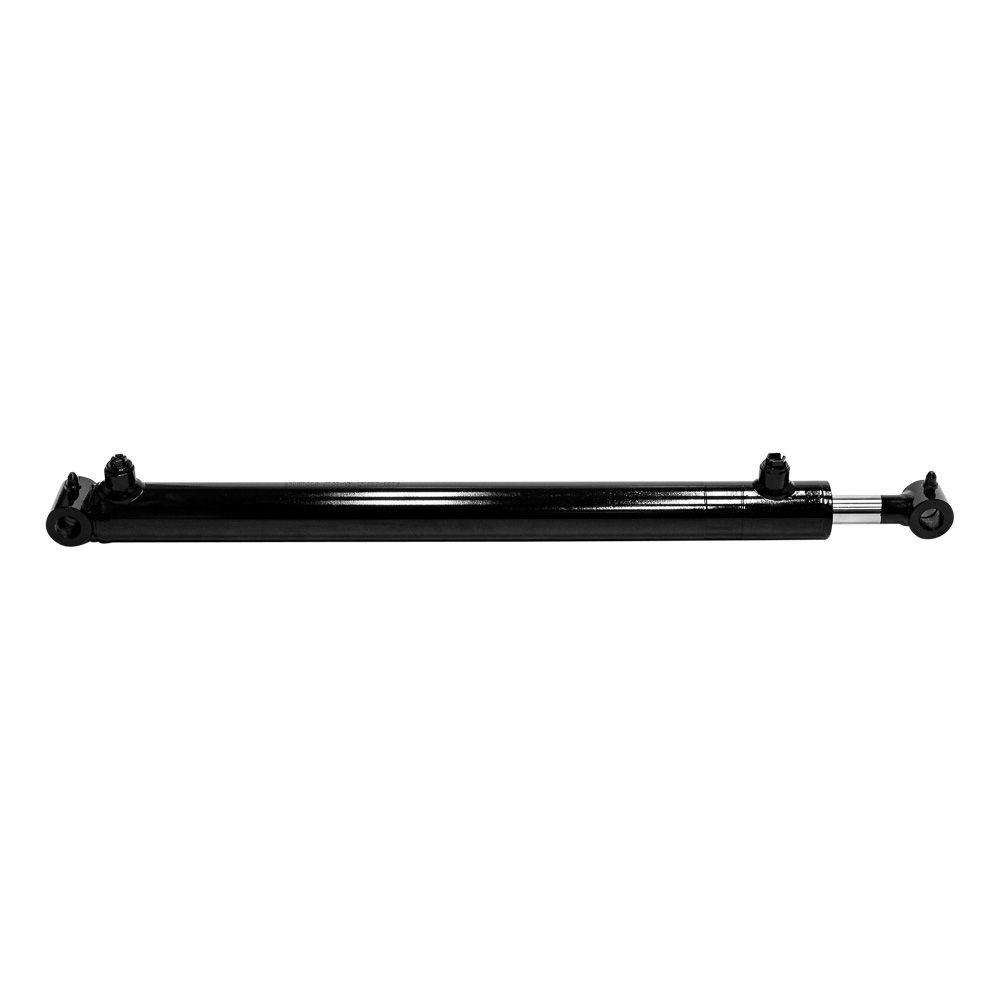

Hydrauliekzylinder doppeltwirkend
200bar model that is designed to withstand shock loads up to 400bar
bore = 1,5'' / 38,1mm
stroke = 20'' / 508mm
max. push load = 2408kg
max. pull load = 1337,8kg
shaft = 1'' / 25,4mm
retracted length = 28'' / 711,2mm
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 6,8 kg |
Abmessungen der Verpackung:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 7,20 kg |
