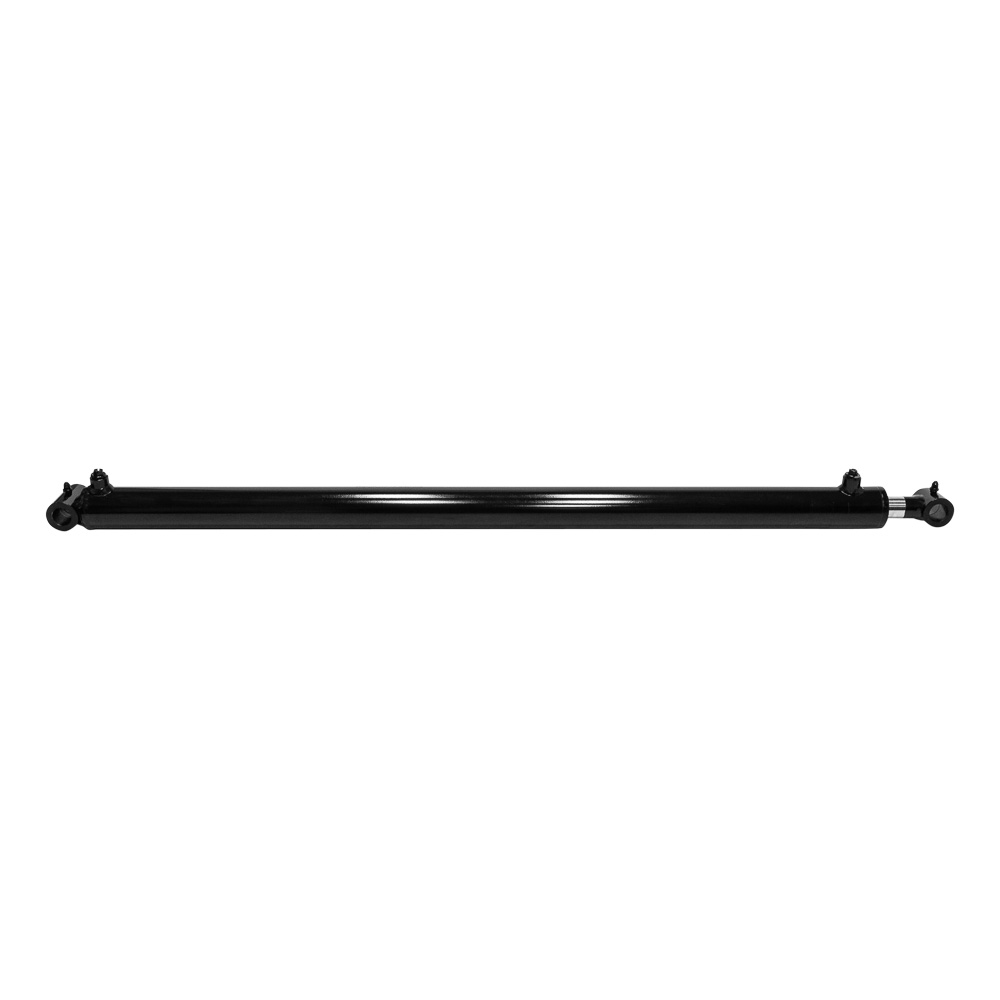

Hydrauliekzylinder doppeltwirkend
200bar model that is designed to withstand shock loads up to 400bar
bore = 2'' / 50,8mm
stroke = 30'' / 762mm
max. push load = 4281kg
max. pull load = 2608,8kg
shaft = 1-1/4'' / 28,6mm
retracted length = 38'' / 965,2mm
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 12,2 kg |
Abmessungen der Verpackung:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 13,00 kg |
