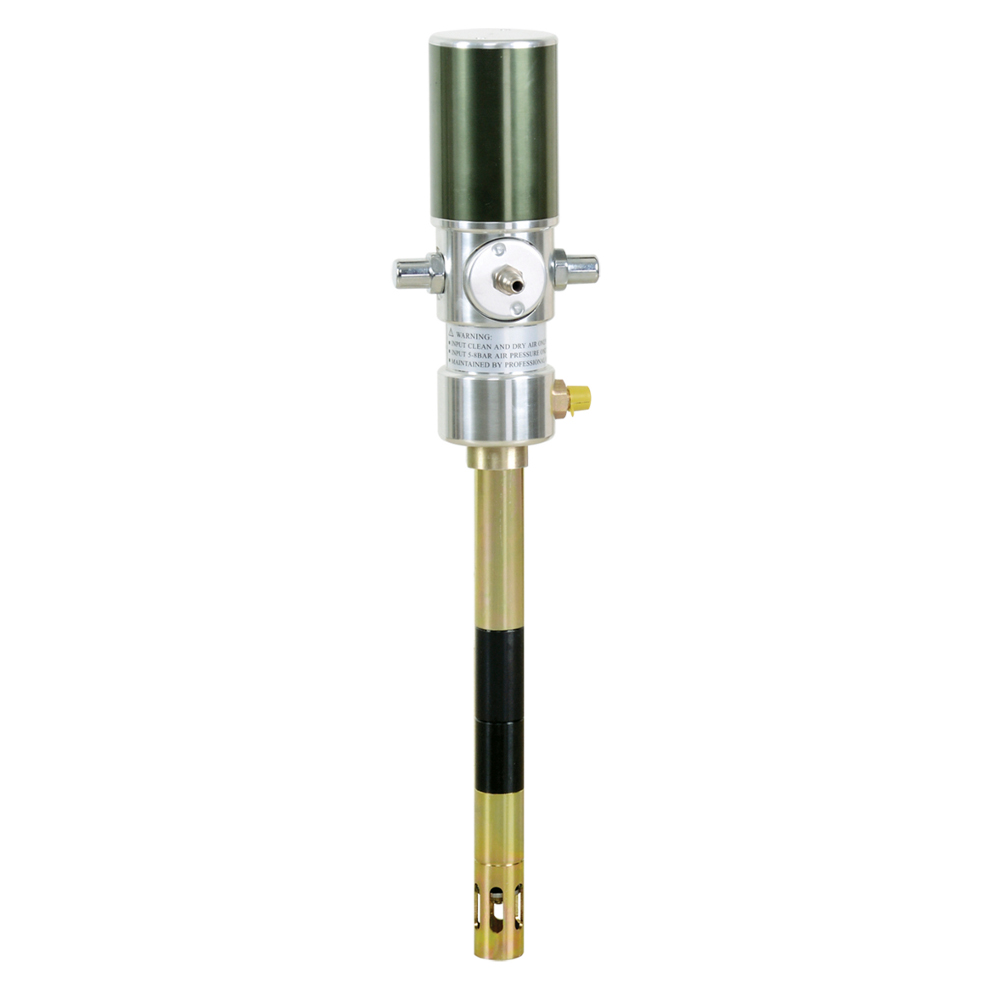

Air operated oil pump
This pump is suitable for dispensing grease with high pressure.
- drum application = 20 - 30kgs
- pressure ratio = 50:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 120 L/min
- max. free flow rate = 800 g/min
- suction tube diameter = 30mm
- suction tube length = 370mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/4''
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 0,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 0 mm |
| Breite des Pakets | 0 mm |
| Paket Höhe | 0 mm |
| Gewicht des Pakets | 5,00 Kg |
