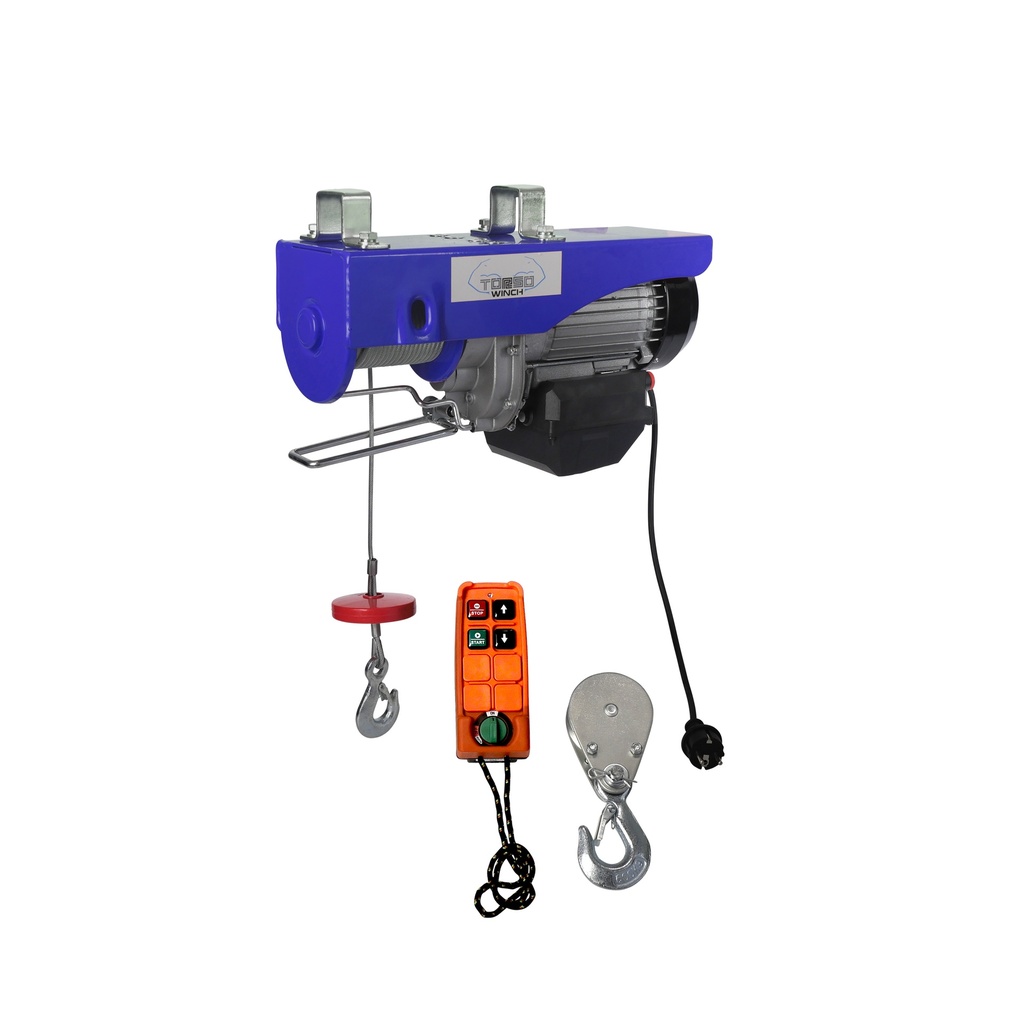

Electric hoist / hoisting winch / electric winch
This Torso lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
Using the wireless control, all the problems which usually occur due to the short operating cable, are history.
Technical specifications:
load capacity = 100kg / 200kg
lifting height = 18m / 9m
lifting speed = 8m/min / 4m/min
cable length = 18m
cable diameter = 3mm
cable break resistance = 500kg
motor power = 450W
voltage = 230V - 50Hz
mounting size center to center length = 190mm
mounting size center to center width = 90mm
Specifications
| Hubkapazität | 100 kg / 200 kg |
| Spannung | 230V / 50 Hz |
| Hubhöhe max. | 18 m / 9m |
| Hebegeschwindigkeit unter Last | 8m/min. / 4m/min. |
| Seildurchmesser | 3 mm |
| Kabellänge | 18 m |
| Einbaumaß Mitte zu Mitte Breite / Länge | 90 mm / 190 mm |
| Widerstandskabelbruch | 500 kg |
| Motorleistung | 450 W |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 315 mm |
| Produkt Breite | 130 mm |
| Produkt Höhe | 210 mm |
| Produktgewicht | 10,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 405 mm |
| Breite des Pakets | 205 mm |
| Paket Höhe | 275 mm |
| Gewicht des Pakets | 11,00 Kg |
