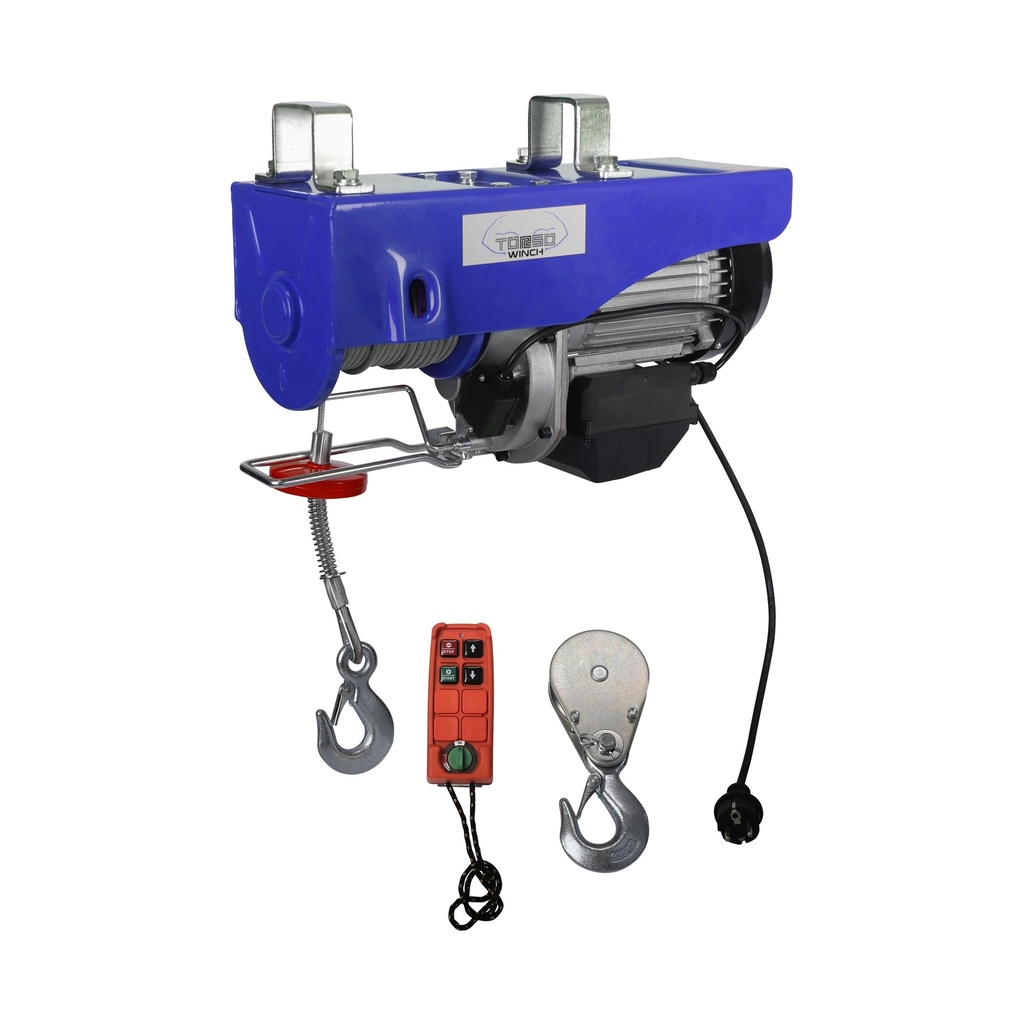

Electric hoist / hoisting winch / electric winch
This Torso lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
Using the wireless control, all the problems which usually occur due to the short operating cable, are history.
Technical specifications:
load capacity = 500kg / 990kg
lifting height = 18m / 9m
lifting speed = 8m/min / 4m/min
cable length = 18m
cable diameter = 5,6mm
cable break resistance = 2500kg
motor power = 1600W
voltage = 230V - 50Hz
mounting size center to center length = 250mm
mounting size center to center width = 110mm
Specifications
| Hubkapazität | 500 kg / 990 kg |
| Spannung | 230V / 50 Hz |
| Hubhöhe max. | 18 m / 9m |
| Hebegeschwindigkeit unter Last | 8m/min. / 4m/min |
| Seildurchmesser | 5.6 mm |
| Kabellänge | 18 m |
| Einbaumaß Mitte zu Mitte Breite / Länge | 110 mm / 250 mm |
| Motorleistung | 450 W |
| Widerstandskabelbruch | 2500 kg |
Produkt Abmessungen:
| Length | 480 mm |
|---|---|
| Width | 180 mm |
| Height | 270 mm |
| Weight | 30,5 kg |
Abmessungen der Verpackung:
| Length | 550 mm |
|---|---|
| Width | 250 mm |
| Height | 335 mm |
| Weight | 32,00 kg |
