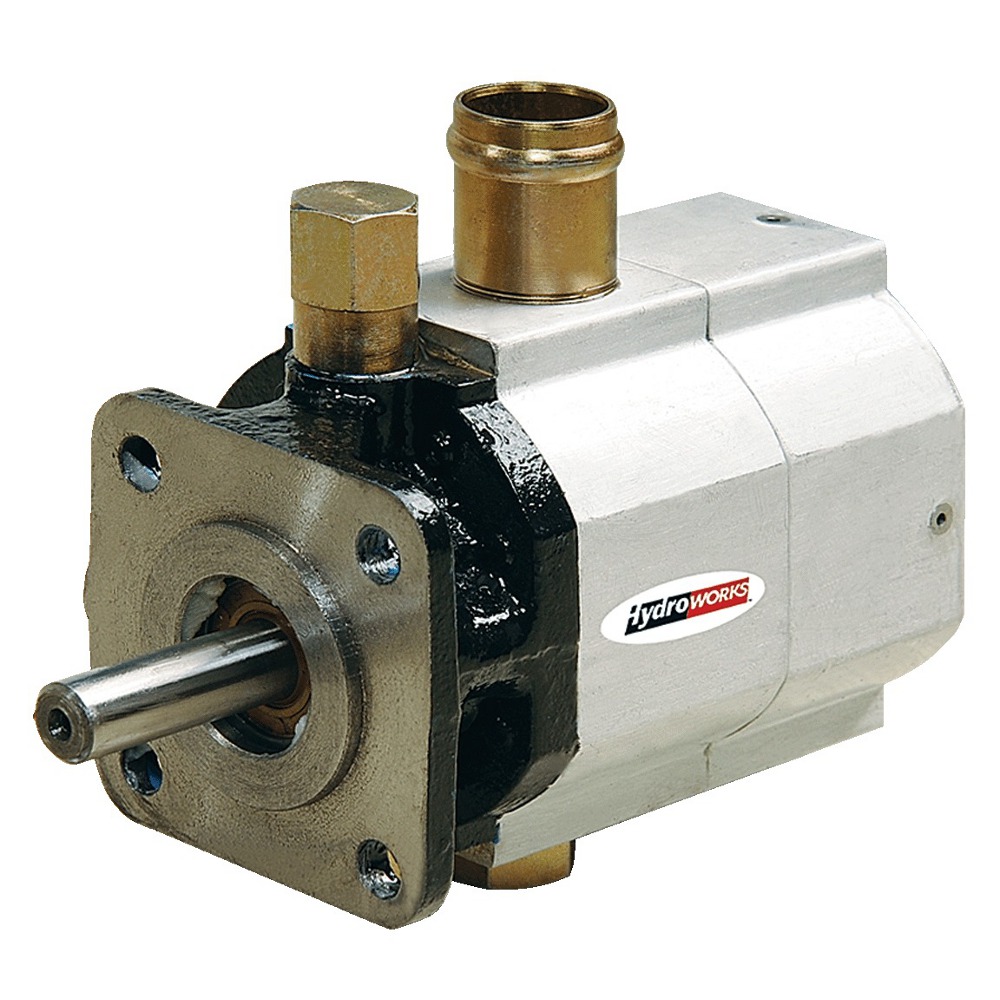

Zahnradpumpe / Hydrauliekpumpe
aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
excellent for log splitters, pressers and trash compactors
- gear displacement:
low pressure = 39,2LPM
high pressure = 10LPM
- required power = 5PK
- shaft = 12,5mm
- inlet = 3/4'' NPT
- outlet = 1/2'' NPT
CBNA-8.8/2.1
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 3,8 kg |
Abmessungen der Verpackung:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 4,00 kg |
