Ratschenzug

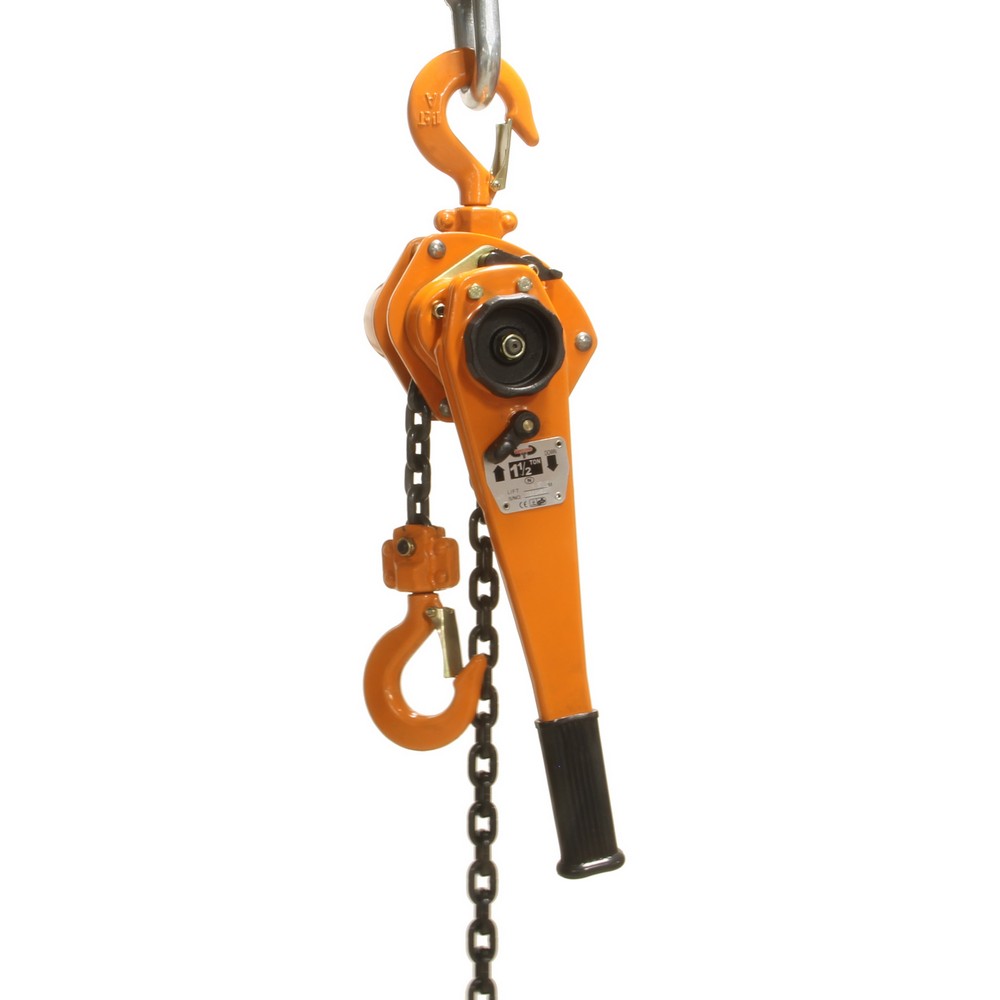

These robust Torso lever hoists are ideal for your lifting operations. They are easy to operate and therefore pleasant to work with. The lever hoists are supplied with a heavy load chain. Both hooks (below and above) are provided with a safety valve.
- capacity = 1,5 ton
- lift = 1.5m
- min. distancebetween two hooks = 335mm
- effort required at capacity = 234N
- diameter of chain = 7,1mm
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 148 mm |
| Produkt Breite | 163 mm |
| Produkt Höhe | 355 mm |
| Produktgewicht | 9,7 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 440 mm |
| Breite des Pakets | 205 mm |
| Paket Höhe | 170 mm |
| Gewicht des Pakets | 10,92 Kg |
| Package Type: | |
| 50 Pcs |
