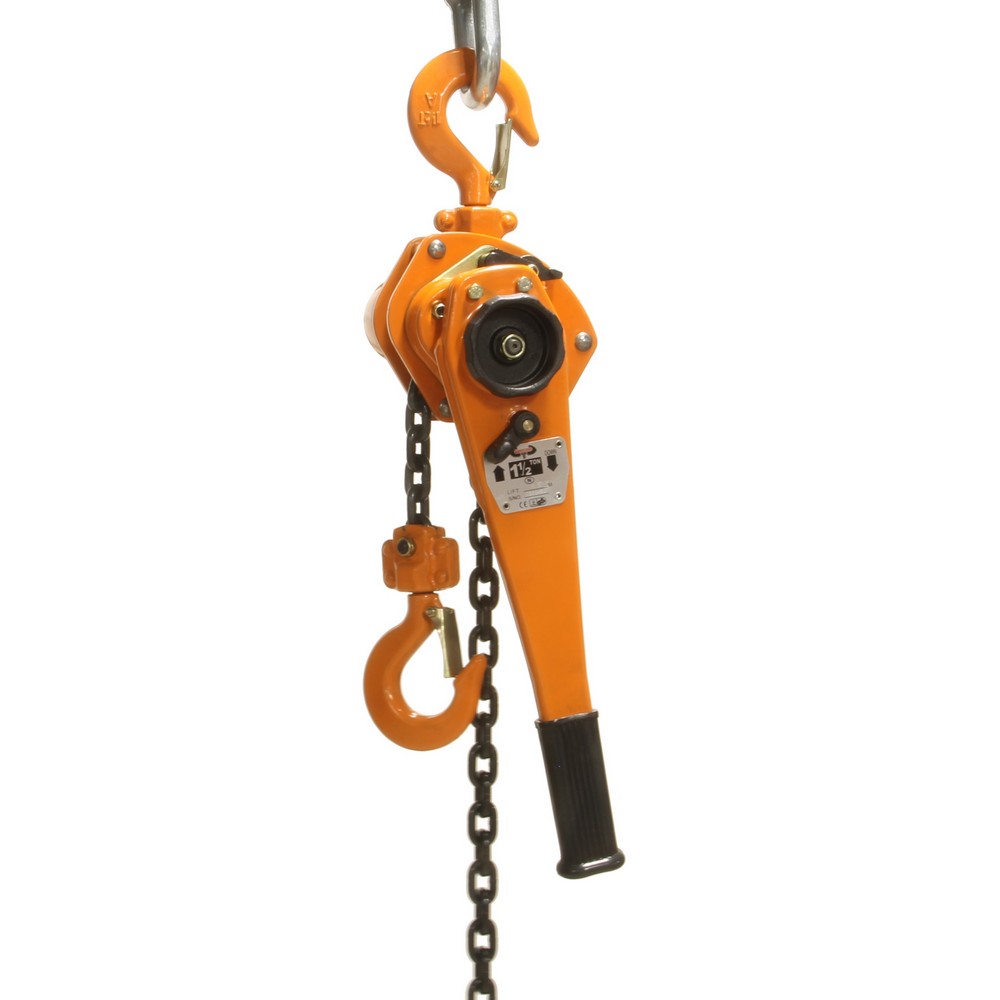

Ratschenzug
These robust Torso lever hoists are ideal for your lifting operations. They are easy to operate and therefore pleasant to work with. The lever hoists are supplied with a heavy load chain. Both hooks (below and above) are provided with a safety valve.
- capacity = 1,5 ton
- lift = 1.5m
- min. distancebetween two hooks = 335mm
- effort required at capacity = 234N
- diameter of chain = 7,1mm
Produkt Abmessungen:
| Length | 148 mm |
|---|---|
| Width | 163 mm |
| Height | 355 mm |
| Weight | 9,7 kg |
Abmessungen der Verpackung:
| Length | 440 mm |
|---|---|
| Width | 205 mm |
| Height | 170 mm |
| Weight | 10,92 kg |
