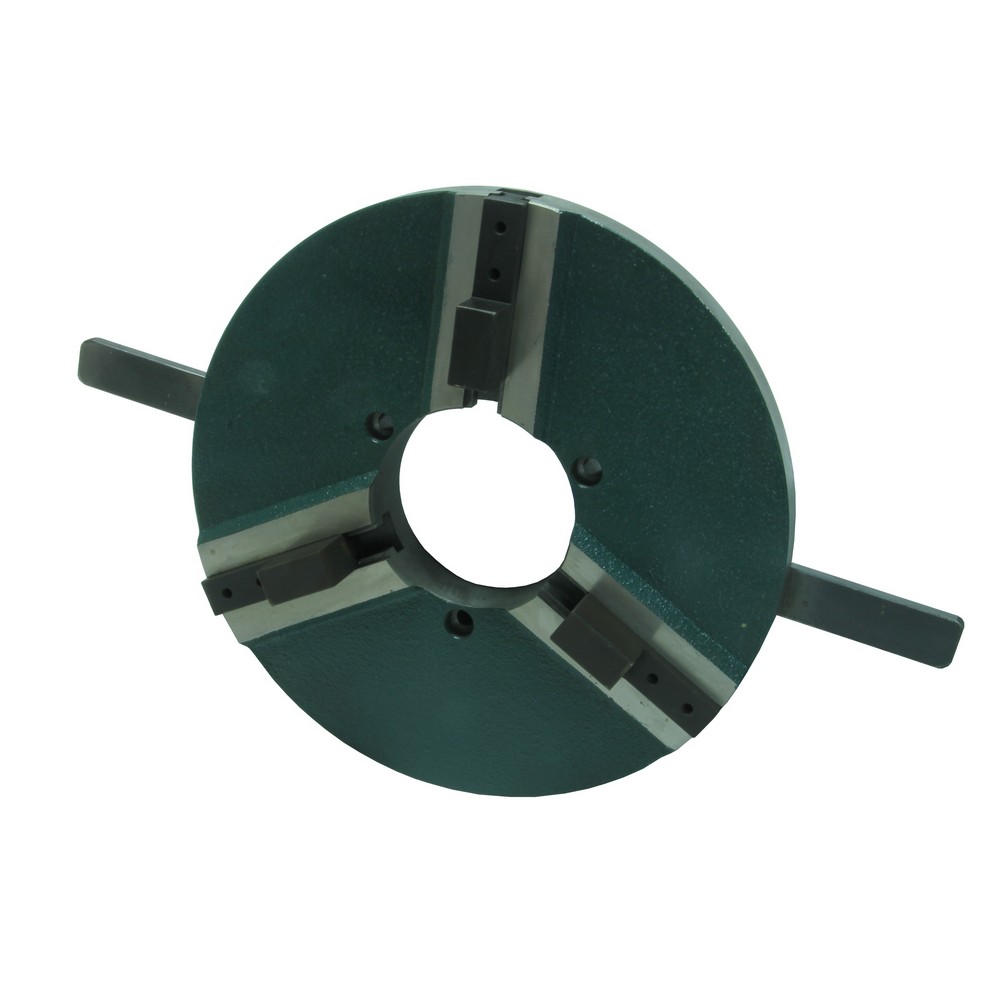

3-Backenfutter Schnellverschluss
This welding chuck 3-jaw is ideal for the use on a welding positioner. This secures the workpiece to the welding manipulator so that an excellent welding connection is realized.
Especially suitable for series production. Many of the same work pieces can easily be changed, resulting in a shorter production time.
diameter = 300mm
reach round = 80 -280mm
clamping force = 250kg
capacity = 120g
reach outside jaws = 170 - 280mm
reach inside jaws = 80 - 190mm
Suitable for the welding positioner 100kg (LM10)
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 11,8 kg |
Abmessungen der Verpackung:
| Length | 420 mm |
|---|---|
| Width | 320 mm |
| Height | 100 mm |
| Weight | 12,40 kg |
