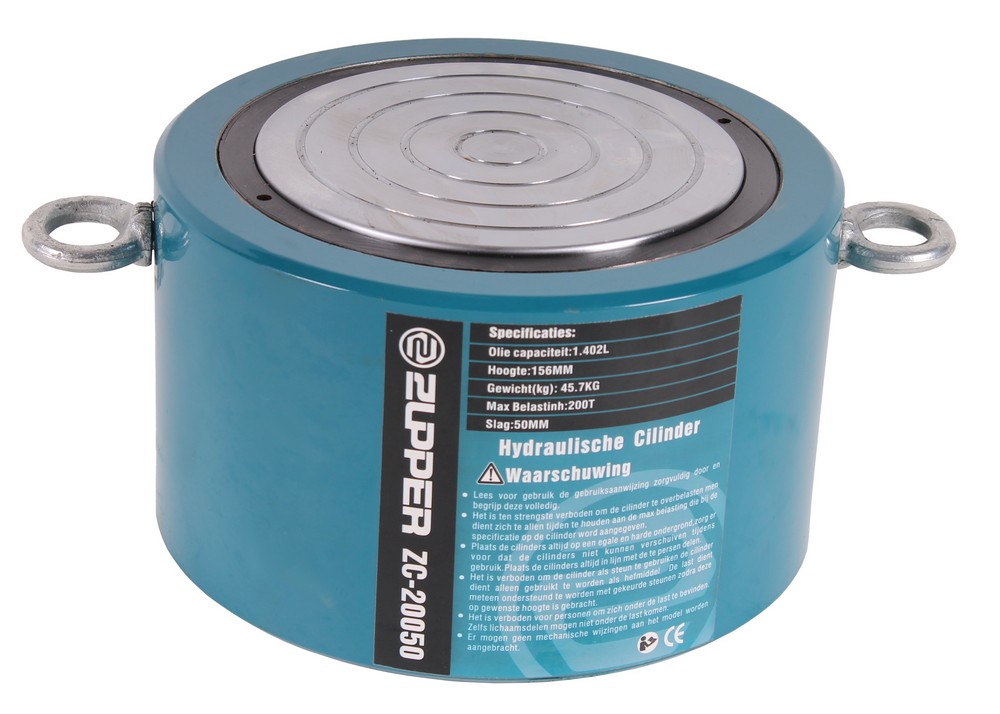

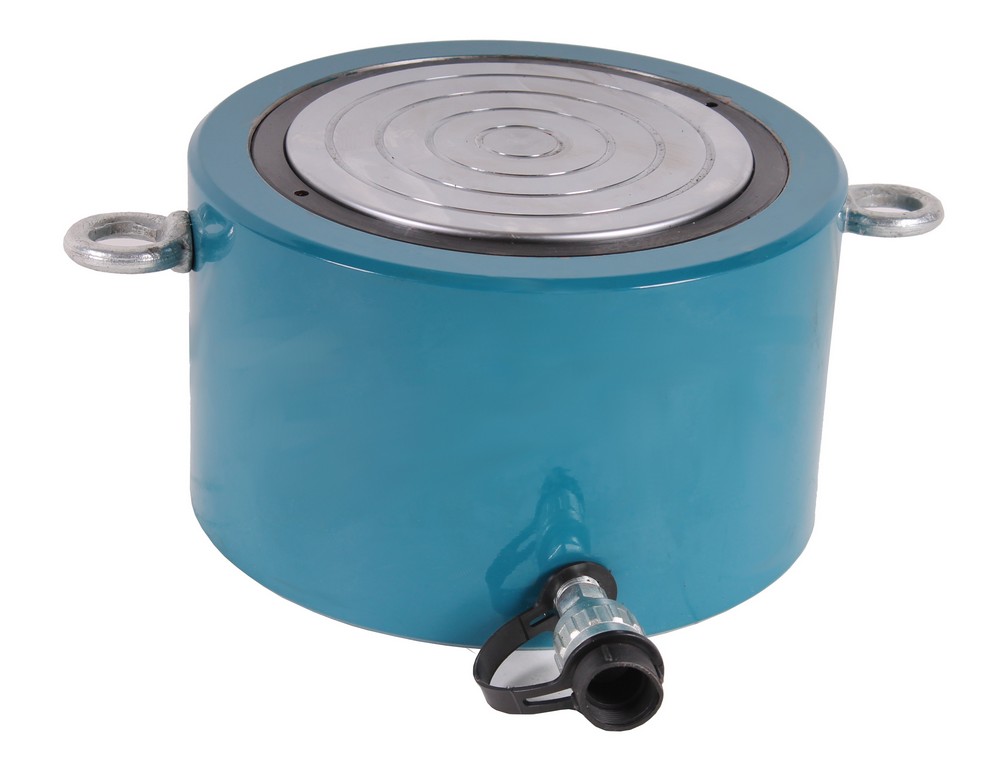

Hydraulikzylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 200 ton
- stroke = 50mm
- effective area = 224,2cm^2
- oil capacity = 1,402 L
- height of product = 156mm
- extended height = 206mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 305 mm |
| Produkt Breite | 235 mm |
| Produkt Höhe | 155 mm |
| Produktgewicht | 45,7 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 315 mm |
| Breite des Pakets | 245 mm |
| Paket Höhe | 165 mm |
| Gewicht des Pakets | 47,00 Kg |
