Druck Schalter

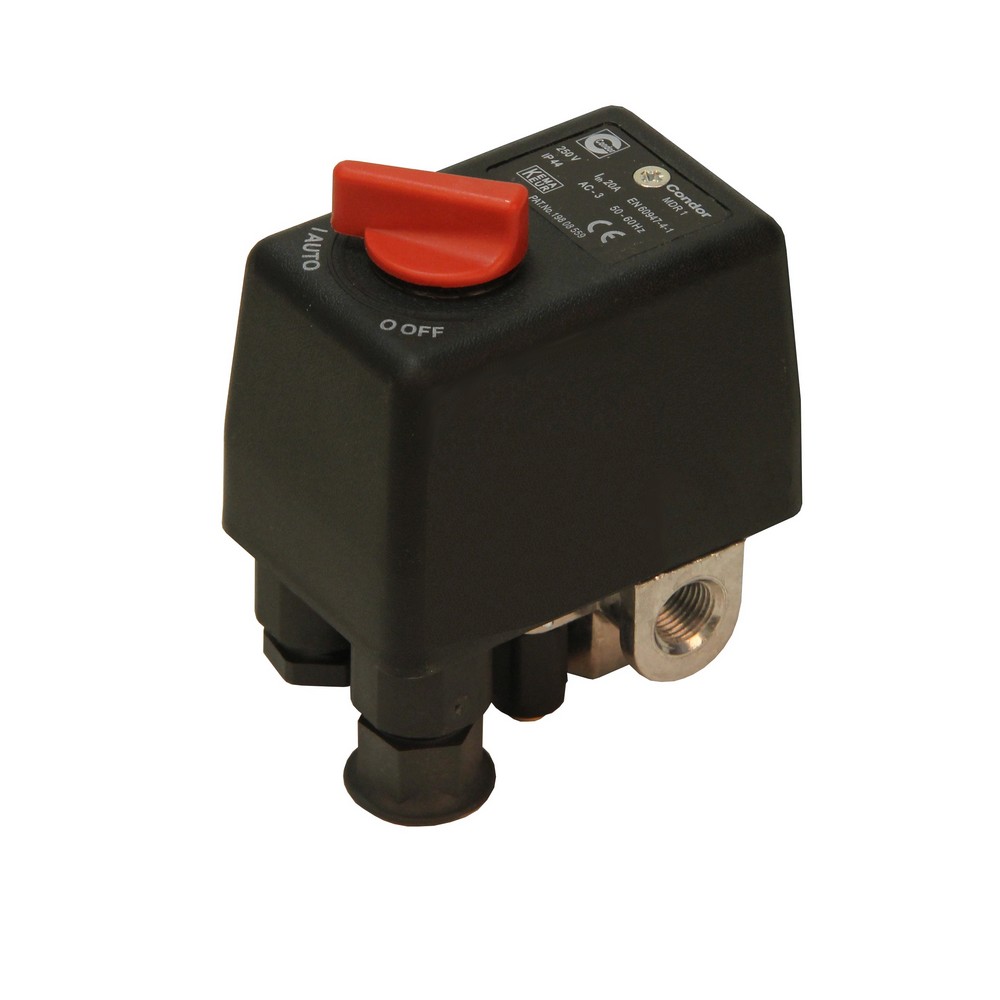

- type = Condor MDR1-11
- switching capacity = 4,0kW (AC3)
- max. cut-out pressure = 11 bar
- single phase
- 2-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 1 S
- flange variants (G1/4, F4 1/4, F4 3/8, F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP44
Produkt Abmessungen:
| Length | 105 mm |
|---|---|
| Width | 90 mm |
| Height | 55 mm |
| Weight | 0,32 kg |
Abmessungen der Verpackung:
| Length | 105 mm |
|---|---|
| Width | 90 mm |
| Height | 55 mm |
| Weight | 0,32 kg |
