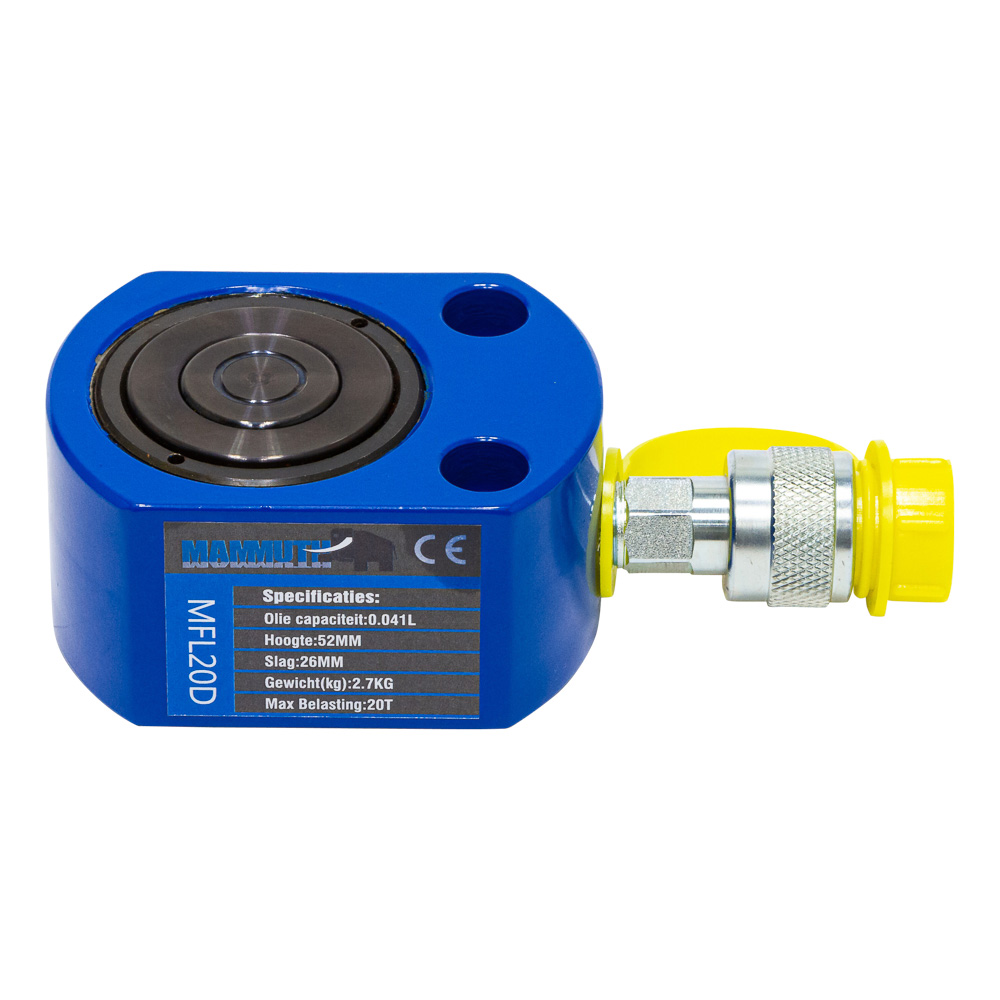

Hydraulikzylinder doppelt
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 20 ton
stroke = 26mm
effective area = 19,6cm^2
oil capacity = 0,041 L
height of product = 52mm
extended height = 80mm
outside diameter = 100x77mm
bore diameter = 60mm
plunger diameter = 53mm
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 175 mm |
| Produkt Breite | 80 mm |
| Produkt Höhe | 80 mm |
| Produktgewicht | 2,4 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 260 mm |
| Breite des Pakets | 155 mm |
| Paket Höhe | 110 mm |
| Gewicht des Pakets | 3,00 Kg |
