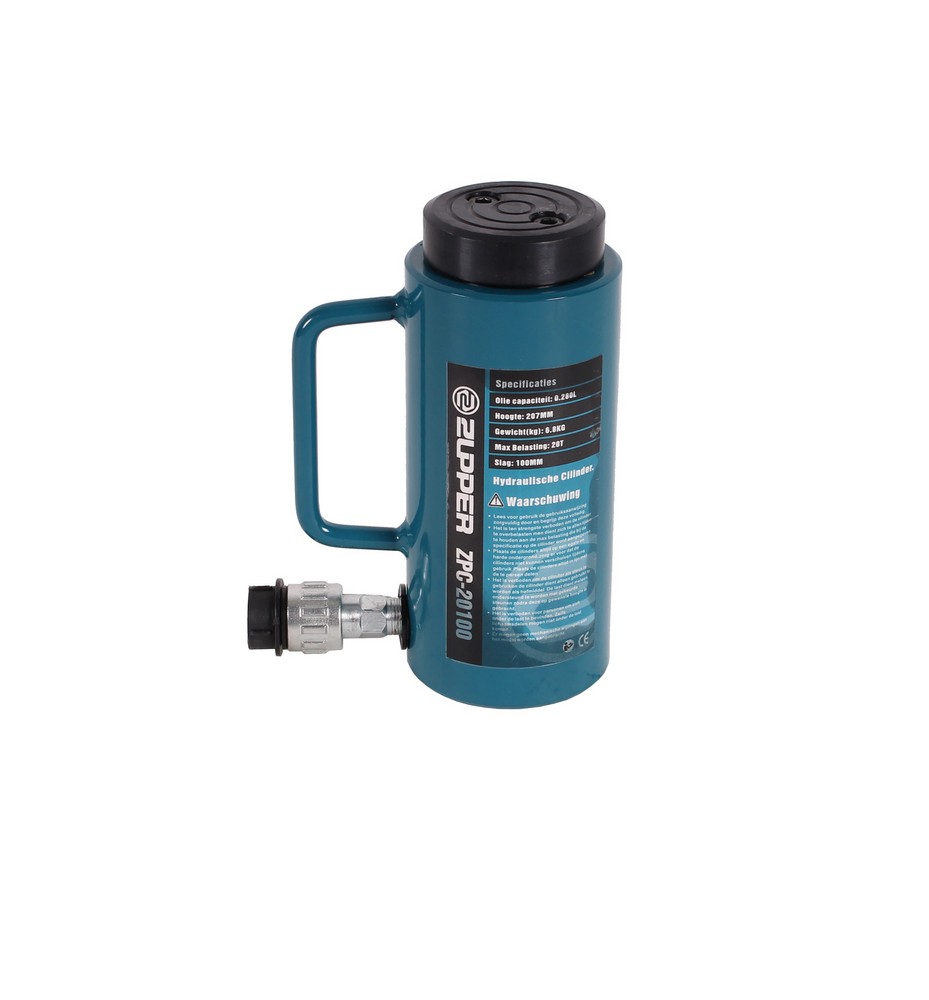

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 20 ton
- stroke = 100mm
- effective area = 33,2cm^2
- oil capacity = 0,332 L
- height of product = 207mm
- extended height = 307mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 55mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 21mm
- saddle is removable
- max. pressure = 700bar
Produkt Abmessungen:
| Length | 155 mm |
|---|---|
| Width | 85 mm |
| Height | 210 mm |
| Weight | 6,8 kg |
Abmessungen der Verpackung:
| Length | 165 mm |
|---|---|
| Width | 95 mm |
| Height | 220 mm |
| Weight | 8,00 kg |
