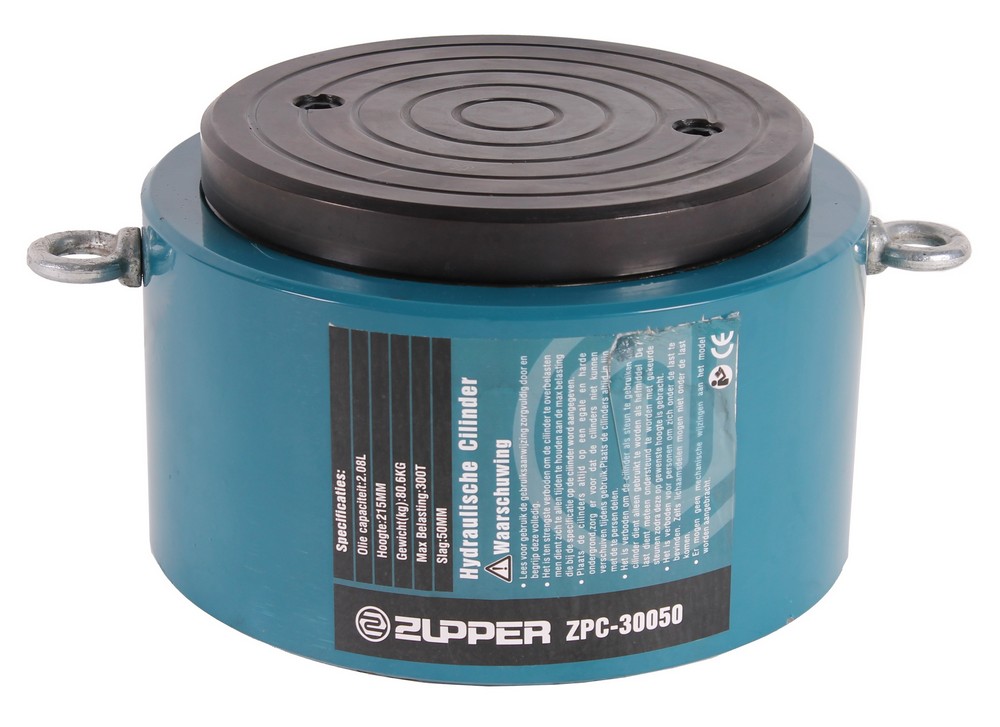

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 300 ton
- stroke = 50mm
- effective area = 514,5cm^2
- oil capacity = 2,08 L
- height of product = 181mm
- extended height = 231mm
- outside diameter = 287mm
- bore diameter = 230mm
- plunger diameter = 210mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 31mm
- saddle is removable
- max. pressure = 700bar
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 350 mm |
| Produkt Breite | 280 mm |
| Produkt Höhe | 185 mm |
| Produktgewicht | 80,6 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 360 mm |
| Breite des Pakets | 290 mm |
| Paket Höhe | 195 mm |
| Gewicht des Pakets | 82,00 Kg |
