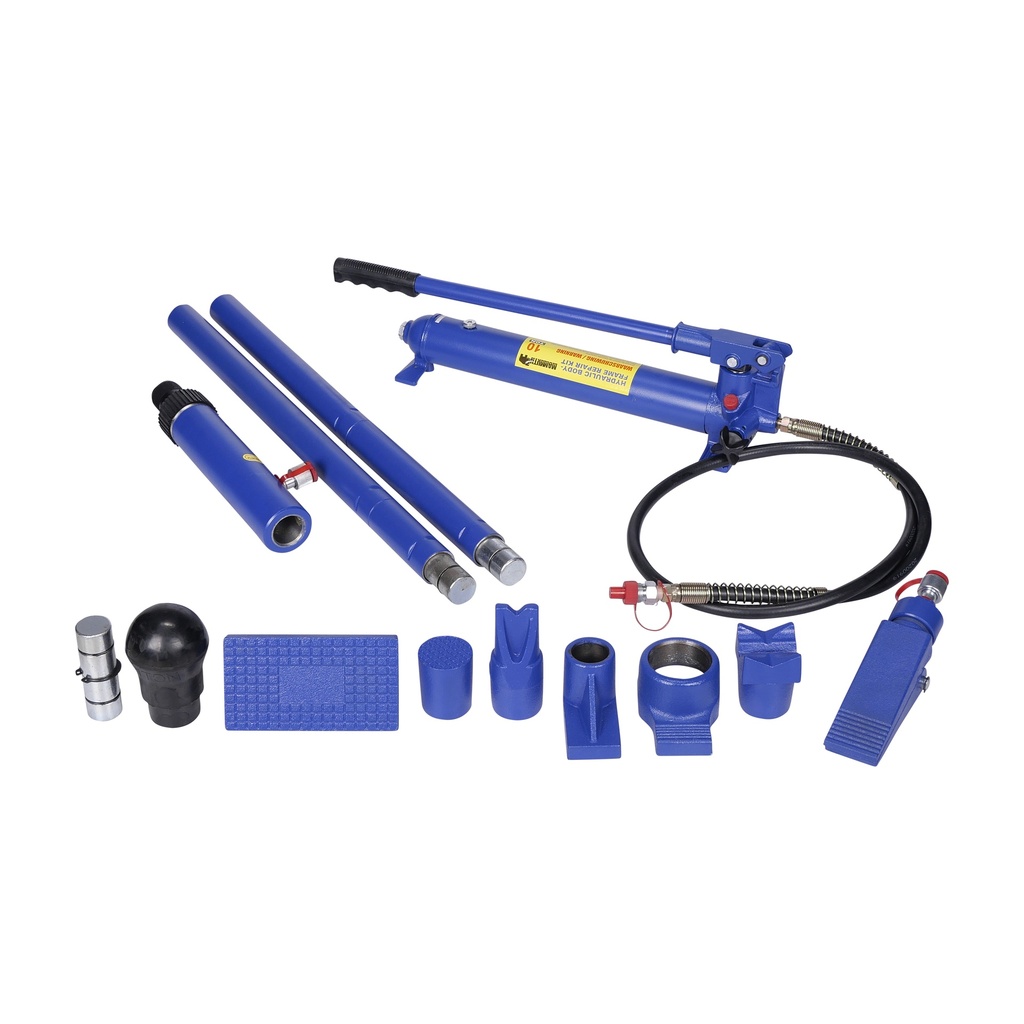

Hydraulic body repair kit / dent removal set
This Mammuth hydraulic body repair kit is suitable for bodywork work such as bending, pressing and spreading.
The cylinder is equipped with a quick-click system to be able to use the various adapters and extensions quickly and easily.
Technical specifications:
capacity = 10 ton
min. length cylinder = 320mm (without adapters)
max. length cylinder = 450mm
stroke = 130mm
Content:
cylinder
hand pump
4 extensions = 110 / 265 / 365 / 520mm
flange spreader = 0.5 ton
coupling
adapter rubber round = dia. 75mm, height 120mm
adapter base plate flat = 160 x 90mm
adapter round flat = 52mm
adapter V-shape
adapter double V-shape
adapter pedestal = 50 x 100mm
adapter base with thread
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 720 mm |
| Produkt Breite | 380 mm |
| Produkt Höhe | 160 mm |
| Produktgewicht | 31,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 735 mm |
| Breite des Pakets | 405 mm |
| Paket Höhe | 180 mm |
| Gewicht des Pakets | 31,00 Kg |
| Package Type: | |
| 15 Pcs |
