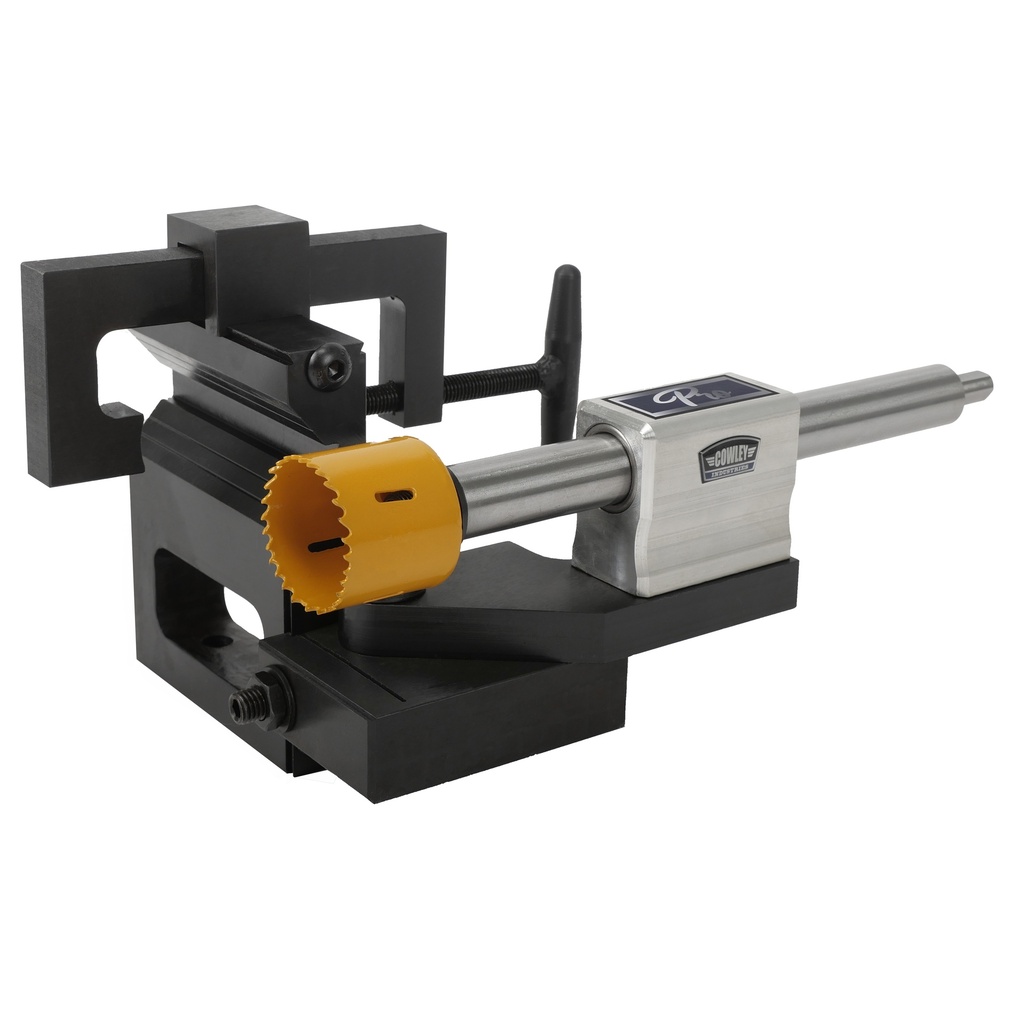

Rohrausklinker Pro
This professional precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
This professional model features a robust steel frame, 2-axis adjustable pipe clamp, a polished steel drill shaft and double neelde bearings.
The base is height adjustable and rotatable, which makes the notcher very user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
- pipe/tube capacity = 3/4" - 3" (19 - 76mm)
- spindle = 3/4" (19mm)
- angle adjustment = 0 - 50 degrees
- chromed steel
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 395 mm |
| Produkt Breite | 200 mm |
| Produkt Höhe | 195 mm |
| Produktgewicht | 9,5 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 310 mm |
| Breite des Pakets | 160 mm |
| Paket Höhe | 14 mm |
| Gewicht des Pakets | 10,00 Kg |
| Pakettyp: | |
| 1 Stück |
