Presse / Garagenpresse / Lagerpresse

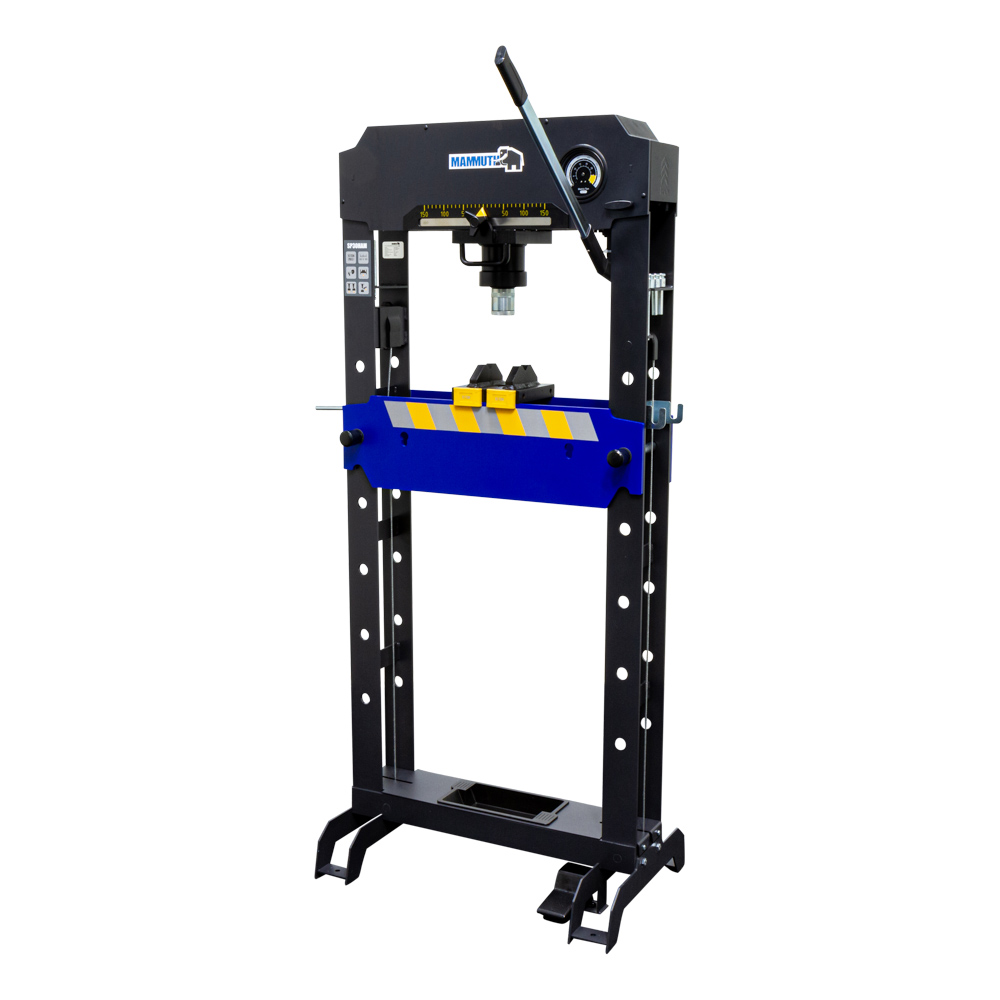

This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes with 2 heavy press blocks, 8 press pins and a parts tray.
Specifications:
capacity = 30 ton
cylinder stroke = 220mm
bed width = 600mm
bed depth = 187mm
working range = 850mm
screw thread length = 75mm
operating pressure = 8 - 12 bar
air connection = 1/4" NPT external thread
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 180,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 840 mm |
| Breite des Pakets | 1.750 mm |
| Paket Höhe | 350 mm |
| Gewicht des Pakets | 194,00 Kg |
| Package Type: | |
| 1 Pcs |
