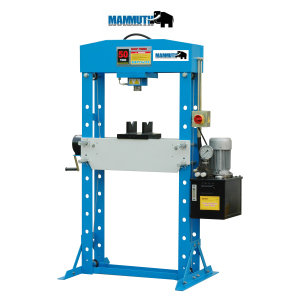

Elektrische Werkstattpresse mit Handwinde 50 Tonne

Garagenpresse / Lagerpresse / Rahmenpresse

This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle.

The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

Please note: the press is supplied without CH22 hydraulic oil (29 liters).

Specifications:

• capacity = 50 ton

• cylinder stroke = 200mm

• bed width = 730mm

• working range = 1018mm

• power = 1,5kW

• voltage = 400V

• speed = 1400rpm

• outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec

• incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec

Packed in 2 boxes:
98,8 x 31,5 x 202cm 328kg
52,5 x 36,5 x 79cm 85kg
