Handrohrbieger

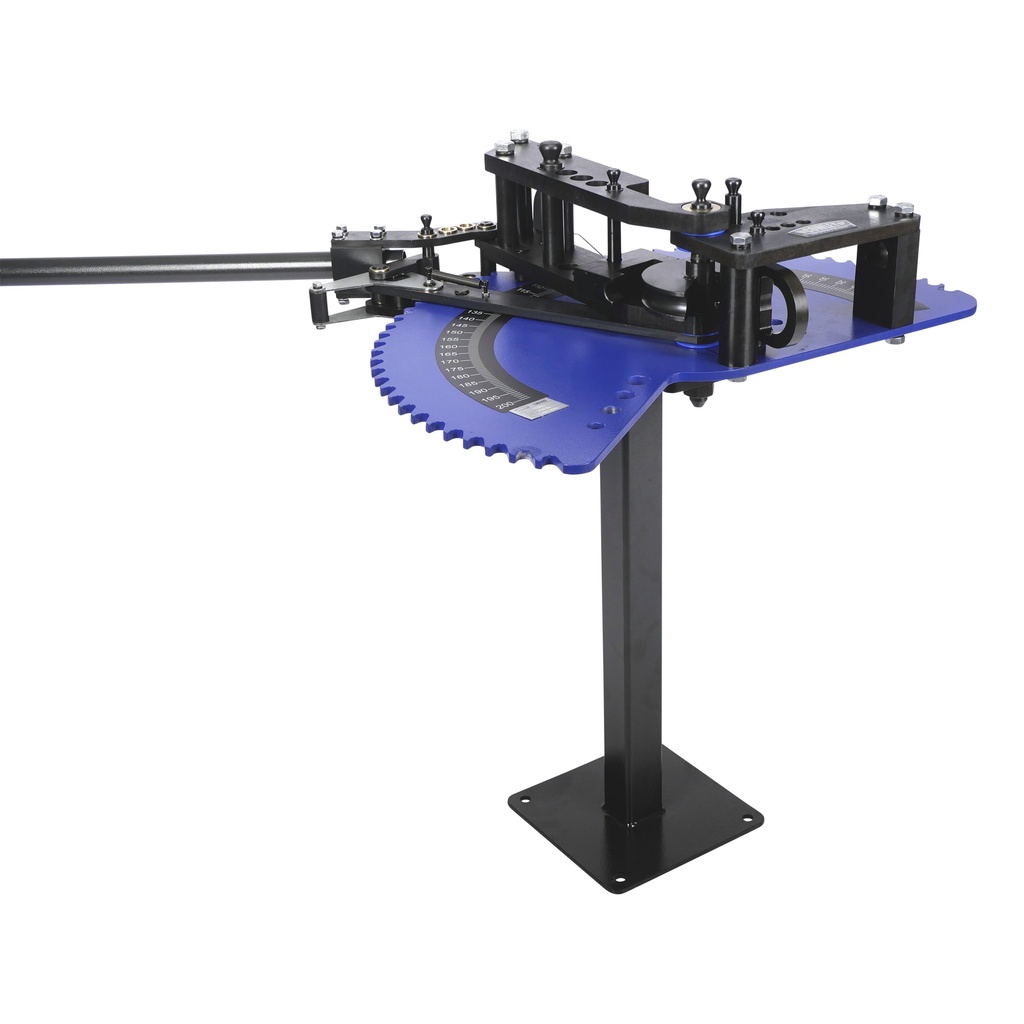

This manual tube bender has a high capacity and is suitable to bend various types of pipes and tubes.
Delivered with standard roll of 1'' with a radius of 3''.
mild steel round tube = 64x3mm 2,50"(.120)
aluminum round tube = 64x3mm 2,50"(.120)
stainless steel round tube = 50x3mm 2,00"(.120)
chromolly round tube = 50x3mm 2,00"(.120)
mild steel solid rod = 25mm(1,0")
max. center line radius = 176mm(7,00")
min. center line radius = 76mm(3,0")
Produkt Abmessungen:
| Length | 1.118 mm |
|---|---|
| Width | 686 mm |
| Height | 1.067 mm |
| Weight | 132,0 kg |
Abmessungen der Verpackung:
| Length | 900 mm |
|---|---|
| Width | 900 mm |
| Height | 430 mm |
| Weight | 135,00 kg |
