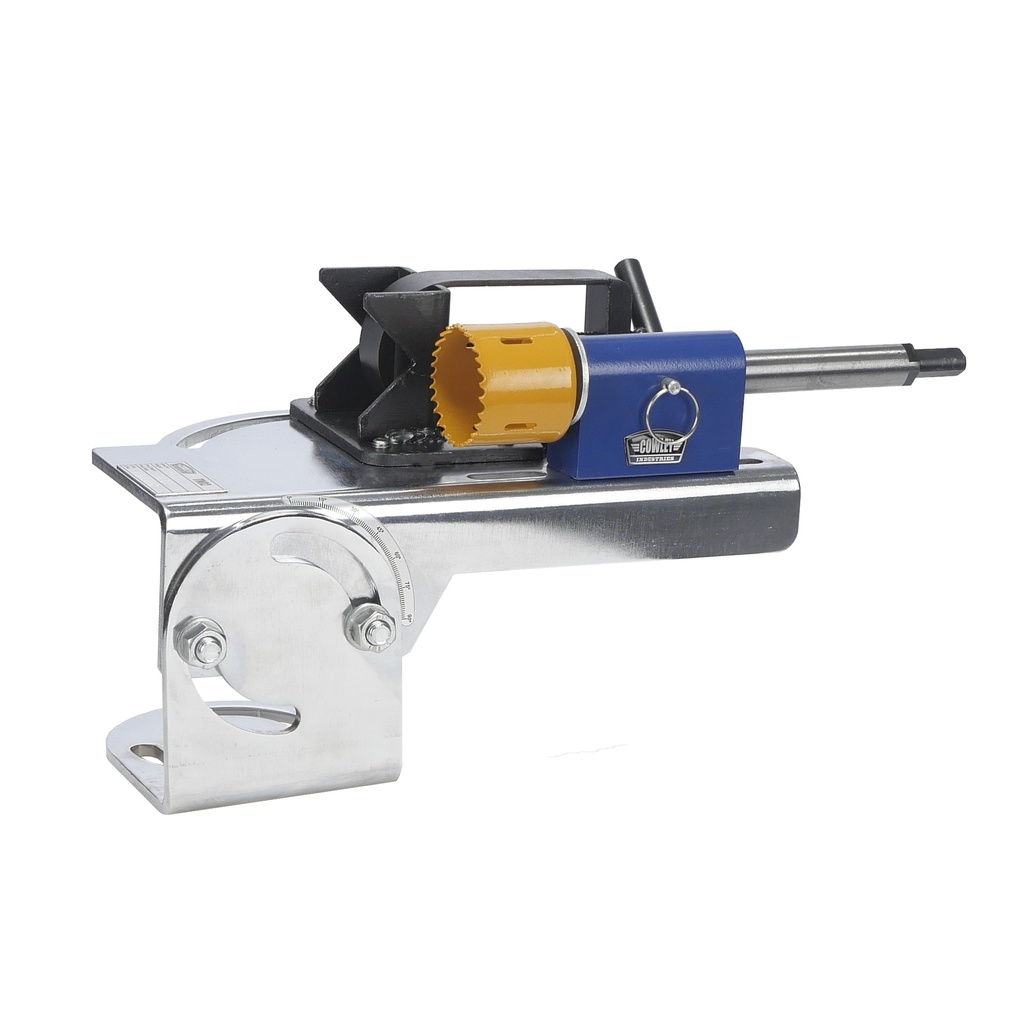

Rohrausklinker
This precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
The base can be rotated and together with the adjustable pipe holder it makes the notcher user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
pipe/tube capacity = 2" (50mm)
spindle = 3/4" (19mm)
angle adjustment = 0 - 60 degrees
chromed steel
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 285 mm |
| Produkt Breite | 170 mm |
| Produkt Höhe | 200 mm |
| Produktgewicht | 4,4 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 300 mm |
| Breite des Pakets | 170 mm |
| Paket Höhe | 200 mm |
| Gewicht des Pakets | 4,60 Kg |
| Package Type: | |
| 10 Pcs |
