Profilwalze

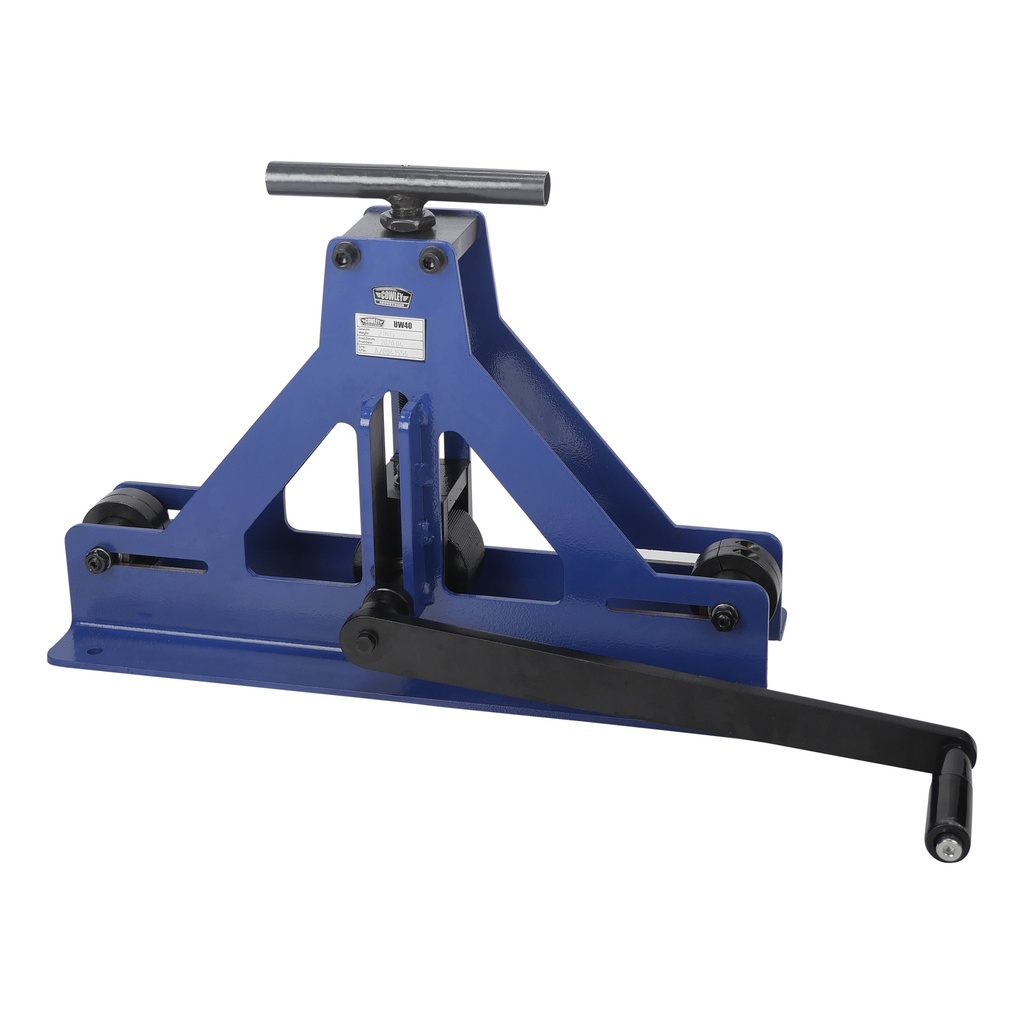

This Cowley tube roller is very suitable for working with square and rectangular pipes. The manual tube bender has a compact design, is easy to operate and attaches to a workbench or base.
The machine comes standard with 1 set of rollers.
Specifications:
max. capacity steel = 20 x 20 x 1,2mm / 25 x 25 x 1,2mm / 30 x 30 x 1,5mm / 40 x 40 x 1,5mm
max. capacity copper = 20 x 20 x 1,5mm / 25 x 25 x 1,5mm / 30 x 30 x 1,75mm / 40 x 40 x 1,5mm
max. capacity aluminum = 20 x 20 x 1,75mm / 25 x 25 x 1,75mm / 30 x 30 x 2mm / 40 x 40 x 1,75mm
min radius = 180 / 170 / 200 / 220mm
min. diameter = 450 / 500 / 550 / 600mm
Produkt Abmessungen:
| Length | 530 mm |
|---|---|
| Width | 250 mm |
| Height | 370 mm |
| Weight | 19,0 kg |
Abmessungen der Verpackung:
| Length | 550 mm |
|---|---|
| Width | 270 mm |
| Height | 390 mm |
| Weight | 21,00 kg |
