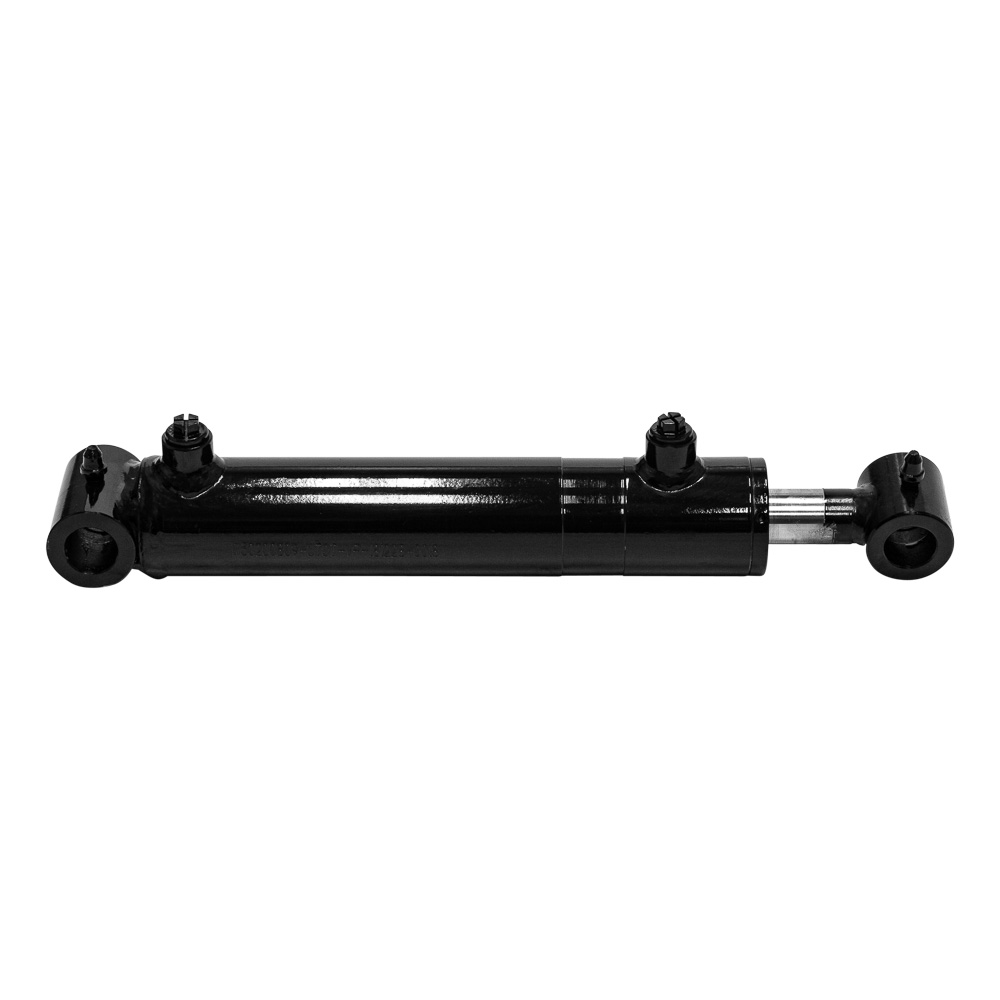

Hydrauliekzylinder doppeltwirkend
200bar model that is designed to withstand shock loads up to 400bar
bore = 2'' / 50,8mm
stroke = 8'' / 203,2mm
max. push load = 4281kg
max. pull load = 2926,5kg
shaft = 1-1/18'' / 28,6mm
retracted length = 16'' / 406,4mm
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 5,9 kg |
Abmessungen der Verpackung:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 6,10 kg |
