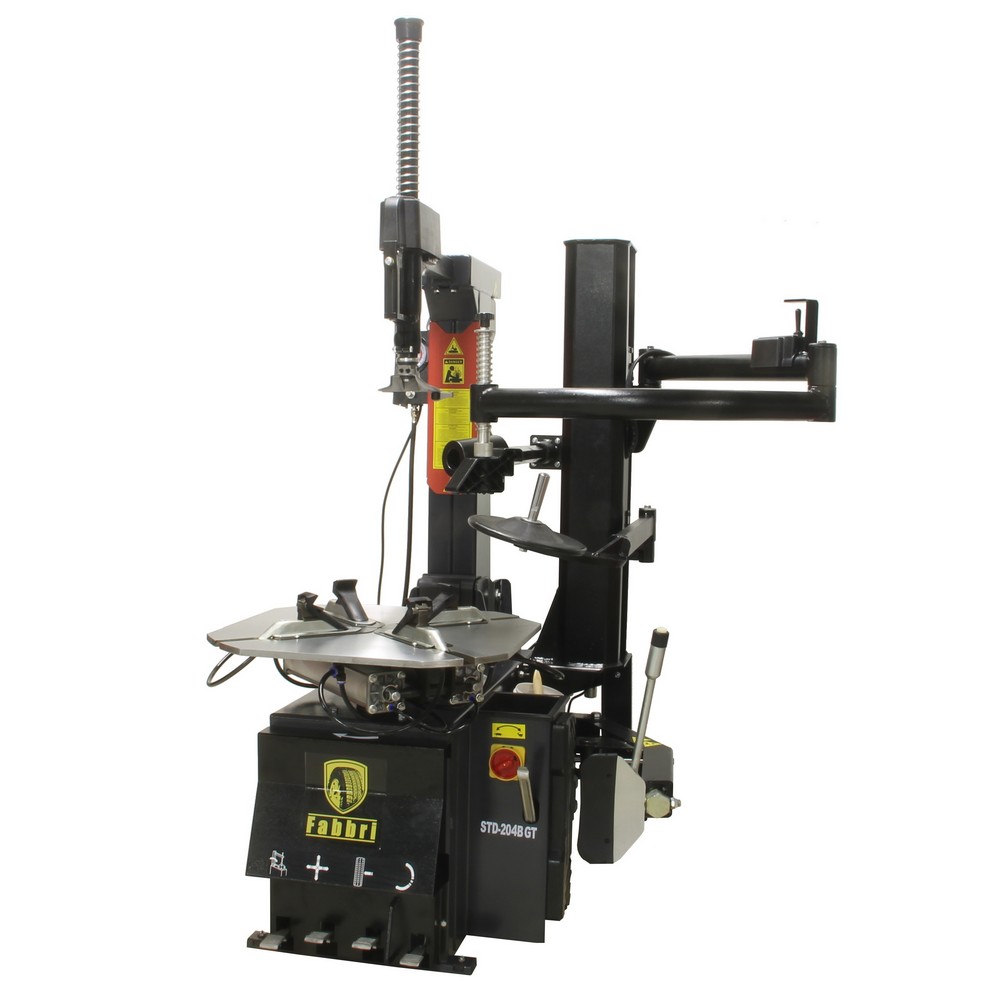

Reifenmontagemaschine / Reifen Montagegerät mit Montagearm Profi
Full-automatic tyre changer equipped with extra stabil tilting post for intensif use. The turning table is able to work at 2 different speeds, ideal for mounting wide and rigid wheels.
- external rim clamping = 12 - 28''
- internal rim clamping = 14 - 30''
- max. wheel diameter = 1200mm (47'')
- max. wheel width = 450mm (17'')
- bead breaker cylinder force at 10 bar = 2500kg
- operating pressure = 10bar (145psi)
- max. inflating pressure = 3,5 bar
- voltage = 400V
standard accessories:
beading lifting tool, air purifier, accessoires set for alloyrims, gun inflator, locking wedge protector, connector
INLCUDING HELPER ARM HP1XL
Produkt Abmessungen:
| Length | 1.400 mm |
|---|---|
| Width | 960 mm |
| Height | 1.600 mm |
| Weight | 464,0 kg |
Abmessungen der Verpackung:
| Length | 1.160 mm |
|---|---|
| Width | 960 mm |
| Height | 1.050 mm |
| Weight | 485,00 kg |
