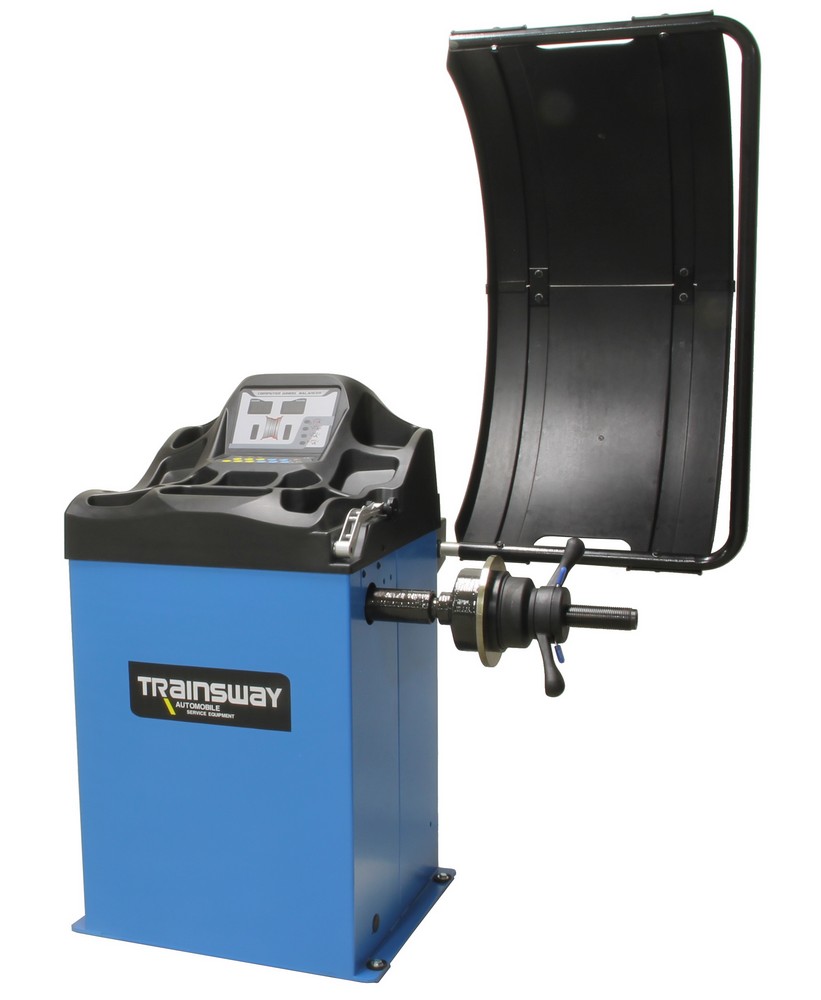

Tire balancer / wheel balancer
This Trainsway wheel balancing machine is suitable for balancing every car wheel and is standart equiped with the following functions:
balancing program for steel rims
4 different alloy programs
static and dynamic balancing mode
special alu mode for uncommen rims
manual wheeldata input
start/stop function
selfcalibration modus
protection hood
Technical specifications:
max. wheel weight = 65kg
motor power = 0.2kW / 0.37kW
power supply = 230V
balancing accuracy = 1g
balancing speed = 200rpm
rim diameter = 10" ~ 24"
rim width = 1.5" ~ 20"
type = ZH825B (SBM95)
Max - Min cone size:
65mm - 45mm
80mm - 55mm
110m - 75mm
135mm - 95mm
All adapters connect to 36mm axles.
Standard provided accessories:
weightplier, 100gr calibration weight, conicset, rim measuring tool, mounting clamp.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 1.140 mm |
| Produkt Breite | 670 mm |
| Produkt Höhe | 1.120 mm |
| Produktgewicht | 90,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 560 mm |
| Breite des Pakets | 900 mm |
| Paket Höhe | 1.150 mm |
| Gewicht des Pakets | 104,00 Kg |
